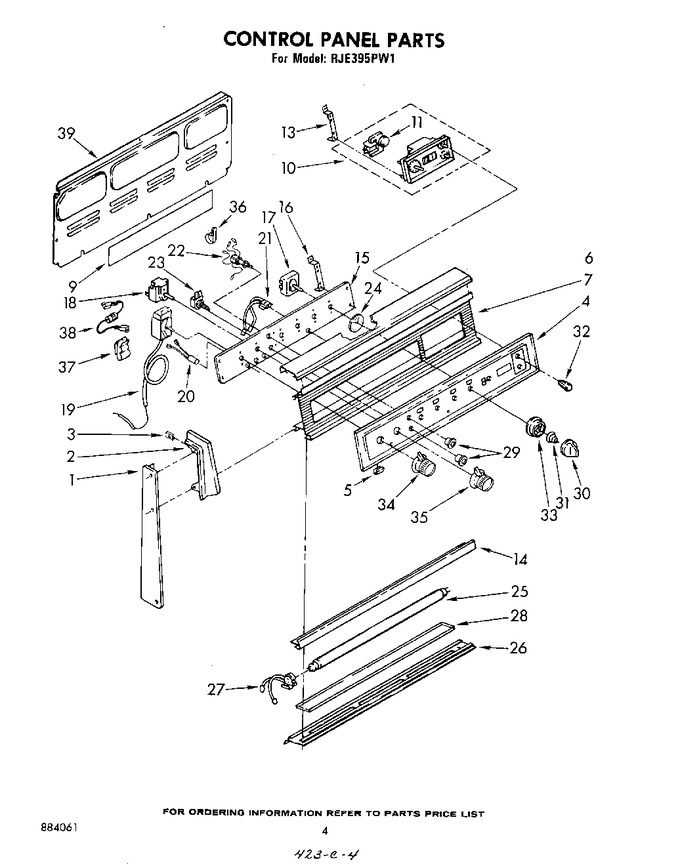

03 - Control Panel


04 - Door And Drawer


05 - Oven , Literature And Optional


06 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	328333		End Trim, L.h.		Appelez-nous	-
1	328331		End Trim, R.h.		Appelez-nous	-
1	WP3390631		Screw, 10a X 3/8 (2)   (Replaces: 309112)				$ 7.04
1	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
2	308472		End Cap, L.h.		Appelez-nous	-
2	308470		End Cap, R.h.		Appelez-nous	-
2	WP488627		Screw   (Replaces: 342055)				$ 6.81
2	W11693756		Screw, 8a X 5/8 (4)   (Replaces: 258665)			Immediately	$ 12.65
3	98084		Clip, End Cap (6)		Appelez-nous	-
4	312514		Control Panel, Glass		Appelez-nous	-
5	308974		Retainer, Glass		Appelez-nous	-
6	308579		Rail, Top		Appelez-nous	-
7	WP681414		Screw, Ground 10-32 X 1/2 (3)   (Replaces: 690989)			Immediately	$ 7.07
7	311925		Panel, Back		Appelez-nous	-
7	307831		Screw, 8a X 5/8 (4)		Appelez-nous	-
9	309289		Barrier Strip		Appelez-nous	-
10	310325		Timer, Digital (includes Illus. 11)		Appelez-nous	-
11	308594		Motor, Timer		Appelez-nous	-
11	308846		Palnut, Timer 10-32 (4)		Appelez-nous	-
13	308823		Bracket, Timer (2)		Appelez-nous	-
14	254225		Screw, 8bt X 1/4 (3)		Appelez-nous	-
14	308580		Rail, Bottom		Appelez-nous	-
15	311926		Plate, Control Panel		Appelez-nous	-
16	308824		Bracket, Control Mounting		Appelez-nous	-
16	98520		Screw (11)		Appelez-nous	-
17	WP3149399		Switch, Infinite (use W/8`` Surface Unit)   (Replaces: 311835)				$ 276.84
17	WP486579		Switch, Infinite (screw, 8-32 X 1/4 (8))   (Replaces: 311865)				$ 6.61
17	WP3149401		Switch, Infinite (use W/6`` Surface Unit (2))   (Replaces: 311834)				$ 134.65
18	310005		Switch, Selector (5 Position)		Appelez-nous	-
18	WP486579		Screw, 8-32 X 1/4 (2)   (Replaces: 311865)				$ 6.61
19	310018		Thermostat, Oven Pyro		Appelez-nous	-
19	487384		Screw, 6-32 X 1/4 (2)		Appelez-nous	-
20	311550		Light, Indicator (3) (oven, Lock, Clean)		Appelez-nous	-
21	311689		Light, Indicator (1) (surface Unit)		Appelez-nous	-
22	312370		Switch, Fluorescent Light		Appelez-nous	-
23	308829		Switch, Oven Light		Appelez-nous	-
23	255912		Nut, 3/8 X 27		Appelez-nous	-
24	308352		Skirt, Knob		Appelez-nous	-
25	WP95292		Lamp, Fluorescent   (Replaces: 95292)			Immediately	$ 121.45
26	309242		Retainer, Lamp Glass		Appelez-nous	-
27	308850		Socket, Fluorescent Light R.h.		Appelez-nous	-
27	WP488627		Screw (2)   (Replaces: 342055)				$ 6.81
27	308845		Fastener, Speed Nut (2)		Appelez-nous	-
27	308851		Socket, Fluorescent Light L.h.		Appelez-nous	-
28	308756		Lens, Lamp		Appelez-nous	-
29	313030		Bezel, Switch (2)		Appelez-nous	-
30	313307		Knob, Control (4)				$ 15.94
31	308348		Spring, Knob (4)		Appelez-nous	-
32	255853		Knob, Timer (3)		Appelez-nous	-
33	308350		Bezel Control Knob (4)		Appelez-nous	-
34	328709		Knob, Thermostat		Appelez-nous	-
35	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.03
35	328707		Knob, Selector		Appelez-nous	-
36	WP3390631		Screw, 10a X 3/8 (7)   (Replaces: 309112)				$ 7.04
36	WP488366		Strain Relief (2)   (Replaces: 308600)				$ 10.06
37	309211		Tube Clip		Appelez-nous	-
38	328923		Resistor & Terminal Assembly		Appelez-nous	-
39	309239		Rear Cover Control Panel		Appelez-nous	-
39	WP681414		Screw, 10-16 X 1/2 (10)   (Replaces: 343641)			Immediately	$ 7.07
