02 - Door And Latch

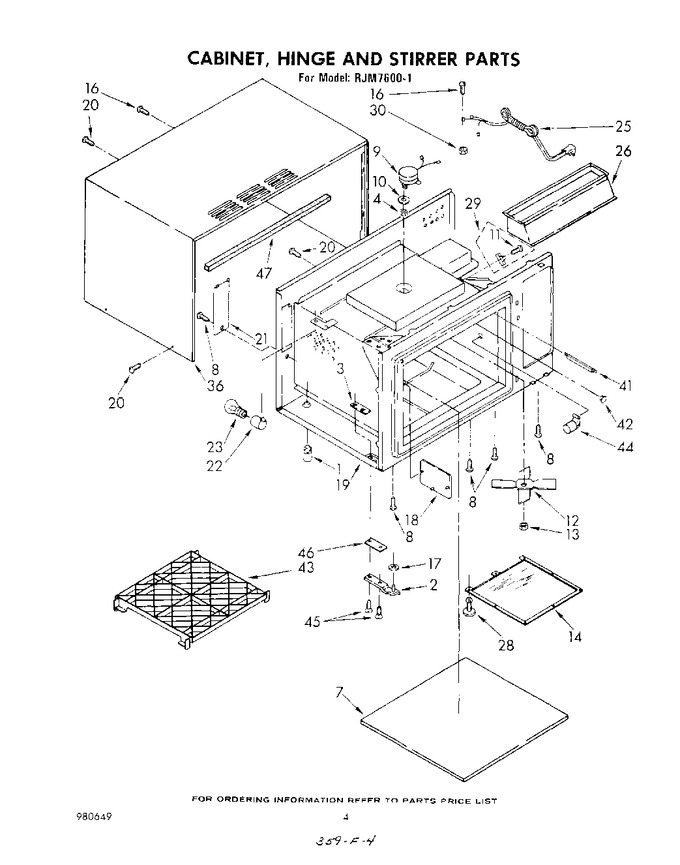

03 - Cabinet, Hinge And Stirrer , Literature
04 - Magnetron And Airflow
05 - Control Panel
06 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 307540 | Foot, Mounting (4) |
|
- | |||||
| 2 | 329070 | Hinge Door (top) |
|
- | |||||
| 2 | 329071 | Hinge Door (bottom) |
|
- | |||||
| 3 | 312092 | Plate, Hinge (2) (top & Bottom) |
|
- | |||||
| 4 | 309768 | Nut |
|
- | |||||
| 7 | 311058 | Base, Ceramic (alternate (install W/ Silastic No.482338)) |
|
- | |||||
| 7 | 309145 | Base, Ceramic (alternate) |
|
- | |||||
| 8 | 254217 | Screw, 10a X 3/8 |
|
- | |||||
| 9 | 311515 | Motor, Stirrer (alternate) |
|
- | |||||
| 9 | 310950 | Motor, Stirrer (alternate) |
|
- | |||||
| 10 | 311245 | Washer, Internal Lock |
|
- | |||||
| 11 | 246131 | Screw, 6a X 3/8 |
|
- | |||||
| 12 | 309976 | Stirrer 4-blade |
|
- | |||||
| 13 | 307555 | Nut, Hex (1/4-20) |
|
- | |||||
| 14 | 309441 | Cover, Stirrer |
|
- | |||||
| 16 | 258857 | Screw, 10-32 X 1/2 |
|
- | |||||
| 17 | 312147 | Washer, Flat (2) |
|
- | |||||
| 18 | 307516 | Cover, Light |
|
- | |||||
| 20 | 307748 | Screw, 10a X 1/2 |
|
- | |||||
| 21 | 307512 | Cover, Lamp |
|
- | |||||
| 22 | 307519 | Socket, Snap-in |
|
- | |||||
| 23 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 25 | 311543 | Cord, Power (alternate) |
|
- | |||||
| 25 | 310900 | Cord, Power (alternate) |
|
- | |||||
| 26 | 309444 | Baffle, Air Exhaust |
|
- | |||||
| 28 | 310423 | Fastener, Stirrer Cover (8) |
|
- | |||||
| 29 | 309279 | Fuse, Thermal |
|
- | |||||
| 30 | 309487 | Nut, Hex (10-32) |
|
- | |||||
| 36 | 307510 | Wrapper, Cabinet |
|
- | |||||
| 41 | 309437 | Cover, Rivet |
|
- | |||||
| 42 | 309960 | Plug, Button |
|
- | |||||
| 43 | 311318 | Rack, Oven |
|
- | |||||
| 44 | 311286 | Support, Shelf (4) |
|
- | |||||
| 45 | 311912 | Screw, 10 X 32 (4) (oval Head) |
|
- | |||||
| 46 | 311991 | Hinge Shim Locking |
|
- | |||||
| 47 | 242832 | Wire (14 Ga. 200 C Yellow) |
|
- | |||||
| 47 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 47 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 47 | 242826 | Wire (14 Ga. 150 C White) |
|
- | |||||
| 47 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 47 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 47 | 308294 | Seal, Foam (1/8 X 1/4 X 20``) |
|
- | |||||
| 47 | 308295 | Seal, Foam (1/8 X 1/2 X 15-1/4``) |
|
- | |||||
| 47 | 308292 | Seal, Foam (3/8 X 1/2 X 10``) |
|
- | |||||
| 47 | 310847 | Cookbook (microwave) |
|
- | |||||
| 47 | 307843 | Instructions, Installation |
|
- | |||||
| 47 | 311488 | Guide, Use & Care |
|
- | |||||
| 47 | 311596 | Tech Sheet (service Information) |
|
- | |||||
| 47 | 310929 | Guide, Cooking (oven Rack) |
|
- | |||||
| 47 | 980649 | List, Repair Parts |
|
- | |||||
| 47 | WP261869 | Paint, Touch-up Citrine White (1/2 Oz.) (Replaces: 261869) |
|
$ 23.85 | |||||
| 47 | 261900 | Paint, Spray (citrine White (6 Oz.)) |
|
$ 51.34 | |||||
| 47 | 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | |||||
| 47 | WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | ||||
| 47 | 832765 | 30`` Trim Kit (rck703) |
|
- | |||||
| 47 | 261940 | 27`` Trim Kit (rck707) |
|
- | |||||
| 47 | 832763 | Wall Mount Kit (rck710) |
|
- | |||||
| 47 | 832790 | Grill & Trim Kit (rck711) |
|
- | |||||
| 47 | 832769 | Bookcase (rck713) |
|
- | |||||
| 47 | 328022 | Browning Tray |
|
- | |||||
| 47 | 832810 | Cabinet, Cookbook Storage (rck901) |
|
- | |||||
| 47 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 47 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 47 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 47 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 47 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 47 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 47 | 242829 | Wire (12 Ga. 150 C Red) |
|
- |
