Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP308685 Screw, 10a X 1/2 (6)   (Replaces: 253549) In-Stock Immediately $ 7.08

1 338177 ``j`` Clip (2) Appelez-nous -
1 311056 Screw (2) Appelez-nous -
1 327869 Liner, Door Appelez-nous -
2 308033 Channel, Latch Appelez-nous -
2 311054 Screw (2) Appelez-nous -
3 311904 Seal, Fiberglass Appelez-nous -
4 327898 Panel, Inner Appelez-nous -
5 WP308685 Screw, 10a X 1/2 (4)   (Replaces: 253549) In-Stock Immediately $ 7.08

5 309844 Window Package Appelez-nous -
6 308021 Retainer, Insulation Appelez-nous -
6 WP308685 Screw, 10a X 1/2 (8)   (Replaces: 253549) In-Stock Immediately $ 7.08

7 309842 Glass (6.81`` X 18.31``) Appelez-nous -
8 309843 Retainer, Glass Appelez-nous -
9 310427 Frame, Door Appelez-nous -
10 309069 Glass, Outer Appelez-nous -
11 310428 Top, Door Frame Appelez-nous -
11 307748 Screw, 10a X 1/2 (2) (black) Appelez-nous -
12 310706 Clip, Glass (8) Appelez-nous -
13 311506 Clip (2) Appelez-nous -
14 WP90296 Pushnut (2)   (Replaces: 308593) Special Order $ 7.07

14 309056 Baffle, Heat Appelez-nous -
16 WP912618 Screw (4)   (Replaces: 308541) Special Order $ 6.98

16 311573 Handle, Oven Door Appelez-nous -
17 310707 Spacer, Door Handle (2) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

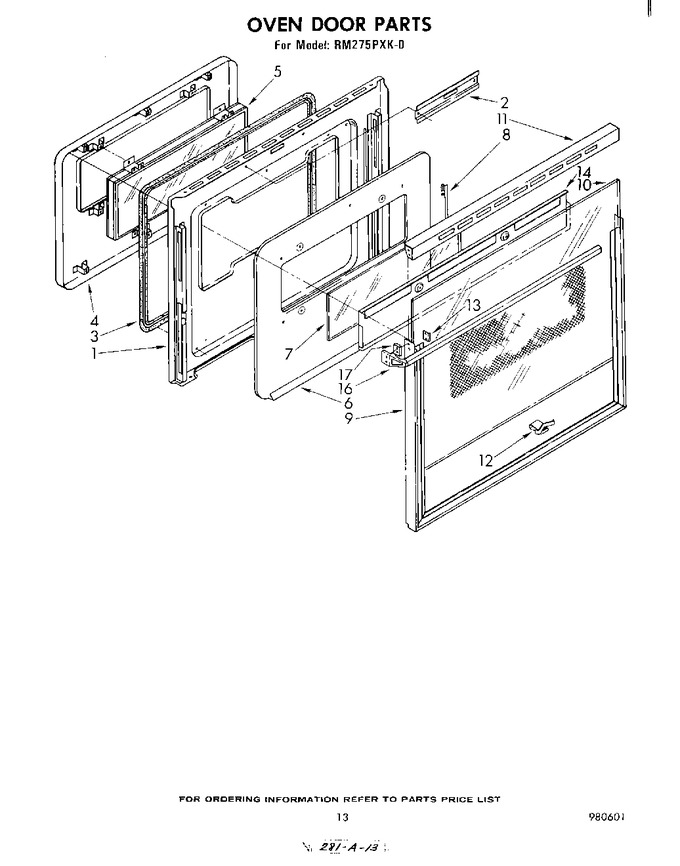

Diagram for RM275PXK0
