Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 329071 Hinge Assembly (bottom) Appelez-nous -
2 329070 Hinge Assembly (top) Appelez-nous -
4 312147 Washer, Flat Appelez-nous -
5 311991 Hinge, Shim Locking (2) Appelez-nous -
7 312092 Plate, Nut (2) Appelez-nous -
8 311912 Screw, No.10 X 32 Torx Recess W/dri Lock (4) Appelez-nous -
10 311058 Shelf, Microwave (alternate) Appelez-nous -
10 309145 Shelf, Microwave (alternate) Appelez-nous -
10 312579 Shelf, Microwave (alternate (install W/silastic No. 482338)) Appelez-nous -
19 307519 Socket, Snap-in Appelez-nous -
20 8009 Bulb, Oven Light   (Replaces: 311255) In-Stock Immediately $ 16.80

21 254217 Screw, 10a X 3/8 Appelez-nous -
21 309554 Shield, Lamp Appelez-nous -
30 311286 Support, Shelf Appelez-nous -
32 311318 Shelf, Convenience Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

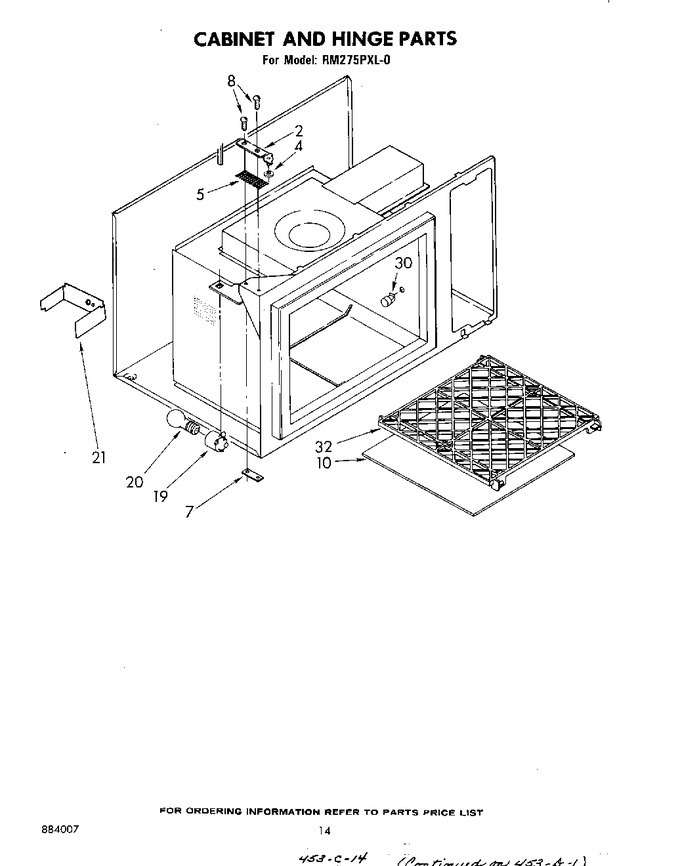

Diagram for RM275PXL0
