Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 312602 Frame, Control Panel Appelez-nous -
2 313100 Membrane, Switch Appelez-nous -
3 312743 Splice Panel Appelez-nous -
4 313572 Control Panel, Glass Appelez-nous -
5 312603 Bottom Cap, Control Panel Appelez-nous -
6 348689 Screw, No. 8 (2) Special Order $ 66.92

7 61533 Power Control, Board Appelez-nous -
9 WP313808 Screw 6-32 X 1/4 (4) 6-32 X 1/4 (3)   (Replaces: 311932) Special Order $ 6.84

10 WP313808 Screw, 6-32 X 1/4 (2)   (Replaces: 311932) Special Order $ 6.84

10 313098 Bracket, P.c. Board Appelez-nous -
11 138473 Lockwasher (2) Appelez-nous -
12 313099 Bracket, P.c. Board Appelez-nous -
27 309434 Timer, Auto Appelez-nous -
28 308443 Motor, Timer Appelez-nous -
29 309645 Nut, Aluminum (4) Appelez-nous -
32 329772 Bracket, Control Mounting Appelez-nous -
32 WP681414 Screw 10-32 X 1/2   (Replaces: 690989) In-Stock Immediately $ 7.07

32 312248 Screw, 8-32 X 1/2 Appelez-nous -
33 313494 Indicator Light 250v (3) Appelez-nous -
34 313530 Thermostat, Oven (lower) Appelez-nous -
34 487384 Screw, 6-32 X 1/4 (2) Appelez-nous -
35 310006 Selector Switch Appelez-nous -
35 308119 Screw, 8-32 X 3/16 (2) Appelez-nous -
36 310643 Switch, Broil Appelez-nous -
37 311585 Switch, Bake Appelez-nous -
39 WP308605 Strain Relief   (Replaces: 308603) Special Order $ 10.08

39 312713 Screw, 8-32 X 3/8 Appelez-nous -
39 WP965173 Screw, 8a X 3/8   (Replaces: 246132) In-Stock Immediately $ 9.65

39 WP308605 Strain Relief   (Replaces: 308604) Special Order $ 10.08

41 138473 Lockwasher Appelez-nous -
42 WP313808 Screw 6-32 X 1/4 (4)   (Replaces: 311932) Special Order $ 6.84

44 330206 Knob, Timer (3) Appelez-nous -
44 313311 Spring (3) Appelez-nous -
45 254225 Screw, 8a X 3/8 Appelez-nous -
45 311073 Escutcheon Thermo Appelez-nous -
46 WP311068 Escutcheon, Selector   (Replaces: 311068) Special Order $ 49.73

46 254225 Screw, 8a X 3/8 Appelez-nous -
47 WP3150371 Knob, Control   (Replaces: 310834) Special Order $ 19.40

48 313030 Bezel Switch Appelez-nous -
50 308297 Foam Seal Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

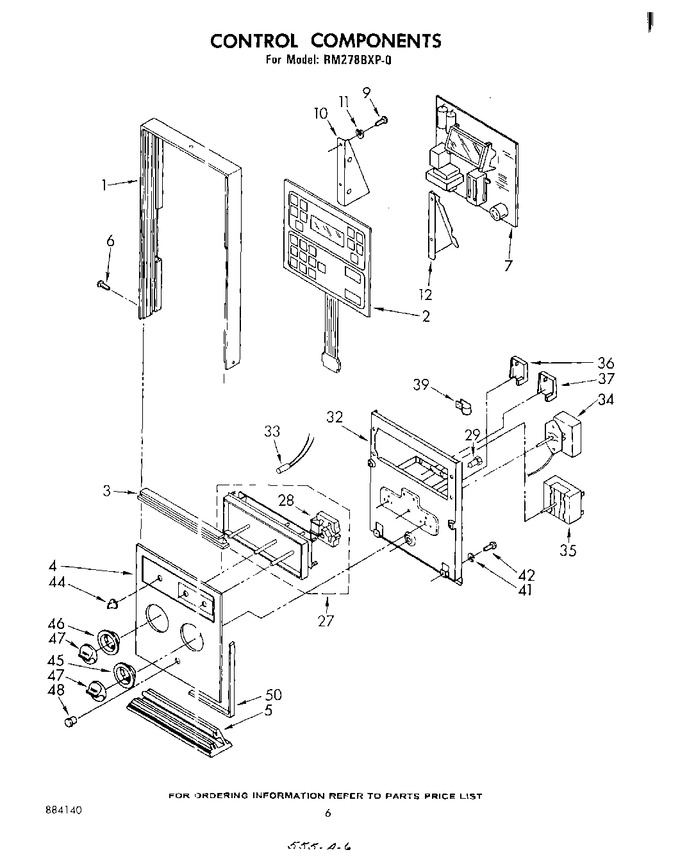

Diagram for RM278BXP0
