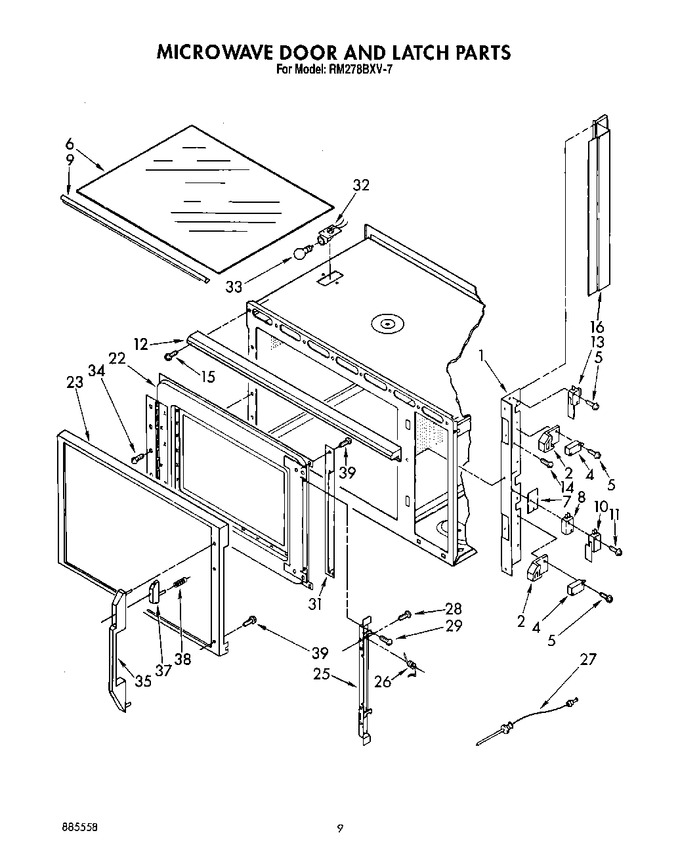

RM278BXV7 | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	311354	Bracket, Catch Includes 3, No.19	Appelez-nous	-
2	311795	Catch (2)	Appelez-nous	-
4	814037	Switch, Primary Interlock (Replaces: 661146)			$ 81.32
5	312717	Screw 4-40x3/4 (8)	Appelez-nous	-
6	313639	Shelf, Glass Install With:	Appelez-nous	-
6	W10841140	Silatic (Replaces: 307576)		Immediately	$ 24.92
7	313126	Insulator	Appelez-nous	-
8	661144	Switch, Monitor/ Oven Light	Appelez-nous	-
9	313614	Trim, Shelf (front)	Appelez-nous	-
9	W10841140	Trim, Shelf (silastic) (Replaces: 307576)		Immediately	$ 24.92
9	313615	Trim, Shelf (rear)	Appelez-nous	-
10	661145	Switch, Monitor/ Oven Light	Appelez-nous	-
11	310211	Screw, 4-40 X 1 (2)	Appelez-nous	-
12	3150025	Screw (3)	Appelez-nous	-
12	3149300	Grille, Air	Appelez-nous	-
13	313120	Switch, Electronic	Appelez-nous	-
14	309080	Screw 8-32 X 3/8	Appelez-nous	-
15	3149443	Screw, 6-20 X 1/2 (3)	Appelez-nous	-
16	311360	Shield	Appelez-nous	-
22	3171012	Door, Inner	Appelez-nous	-
23	3170441	Frame, Door	Appelez-nous	-
25	329066	Latch, Complete (includes No.26)	Appelez-nous	-
26	311352	Spring, Torsion (2)	Appelez-nous	-
27	313527	Probe, Temperature	Appelez-nous	-
28	303776	Screw, 8-32 X 5/16 (2) (Replaces: 313811)	Appelez-nous	-
29	313820	Screw (2)	Appelez-nous	-
31	313823	Screw (5)	Appelez-nous	-
31	3148297	End Cap	Appelez-nous	-
32	330514	Socket, Light	Appelez-nous	-
33	WP3395618	Bulb, Light (Replaces: 313969)		Immediately	$ 71.33
33	312713	Screw (2)	Appelez-nous	-
34	WPW10068250	Screw, 8-32 X .29 (4) (Replaces: 311777)			$ 3.66
35	314169	Handle, Door	Appelez-nous	-
37	3149637	Button, Door Handle	Appelez-nous	-
38	310197	Spring, Compression	Appelez-nous	-
39	313818	Screw (6)	Appelez-nous	-
