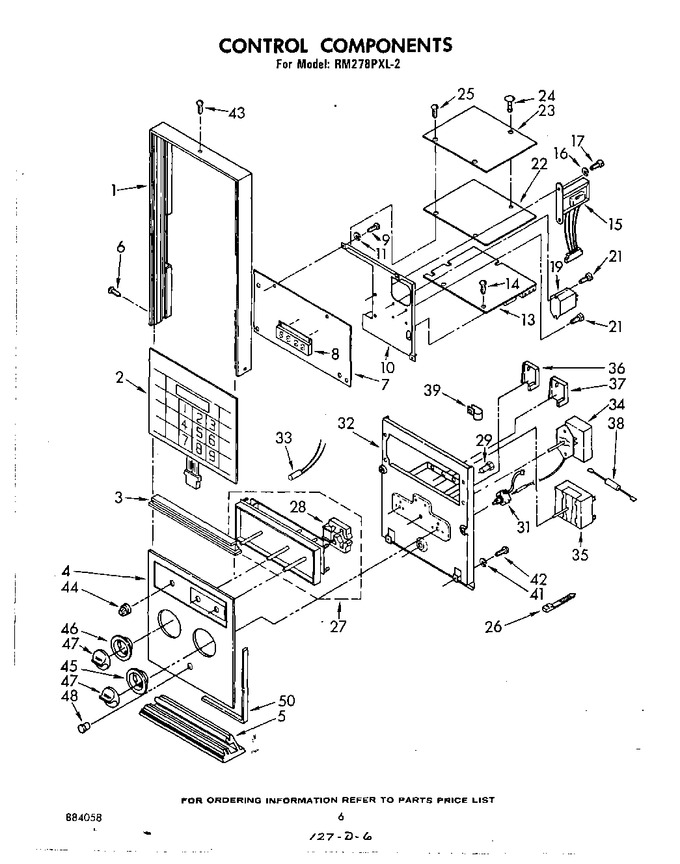

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	312602		Frame, Control Panel		Appelez-nous	-
2	312618		Touch Module		Appelez-nous	-
3	312743		Splice Panel		Appelez-nous	-
4	312423		Control Panel, Glass		Appelez-nous	-
5	312603		Bottom Cap, Control Panel		Appelez-nous	-
6	348689		Screw, No. 8 (2)				$ 66.92
7	61027		Display Assembly (includes Illus. 8)				$ 28.88
7	61053		Clip (2)		Appelez-nous	-
8	60776		Display, Clock (yellow)		Appelez-nous	-
9	WP486754		Screw, 6-32 X 1/4 (3)   (Replaces: 246119)				$ 6.75
10	246131		Screw, 6a X 3/8 (2)		Appelez-nous	-
10	309485		Bracket, P.c. Board		Appelez-nous	-
11	138473		Lockwasher		Appelez-nous	-
13	60792		Power Supply Assembly		Appelez-nous	-
14	309258		Screw, 6 X 3/8 (2)		Appelez-nous	-
15	TB1056		Transformer & Harness Assembly   (Replaces: 60355)		Appelez-nous	-
15	WP486754		Screw, 6-32 X 1/4 (2)   (Replaces: 246119)				$ 6.75
16	138473		Lockwasher		Appelez-nous	-
17	309258		Screw, 6 X 3/8		Appelez-nous	-
19	310372		Relay, Power (12v) (alternate)		Appelez-nous	-
19	310370		Relay, Power (12v) (alternate)		Appelez-nous	-
21	309258		Screw, 6 X 3/8 (2)		Appelez-nous	-
22	60779		Microcomputer Assembly		Appelez-nous	-
23	328430		Protector Assembly		Appelez-nous	-
24	310951		Rivet		Appelez-nous	-
25	309080		Screw, 8-32 X 3/8 (2)		Appelez-nous	-
26	WPW10339879		Cable Tie (2)   (Replaces: 309330)				$ 7.11
27	309434		Timer, Auto		Appelez-nous	-
28	308443		Motor, Timer		Appelez-nous	-
29	309645		Nut, Aluminum (4)		Appelez-nous	-
31	311441		Switch, Push		Appelez-nous	-
32	WP486754		Screw, 6-32 X 1/4 (4)   (Replaces: 246119)				$ 6.75
32	329772		Bracket, Control Mounting		Appelez-nous	-
33	311550		Indicator Light 250v (3)		Appelez-nous	-
34	487384		Screw, 6-32 X 1/4 (2)		Appelez-nous	-
34	310020		Thermostat (lower Oven)		Appelez-nous	-
35	308119		Screw, 8-32 X 3/16		Appelez-nous	-
35	310006		Selector Switch		Appelez-nous	-
36	310643		Switch, Broil		Appelez-nous	-
37	311585		Switch, Bake		Appelez-nous	-
38	328923		Resistor & Terminal Assembly		Appelez-nous	-
39	488946		Strain Relief   (Replaces: 308606)				$ 18.41
39	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 9.65
39	WP308605		Strain Relief   (Replaces: 308604)				$ 10.08
41	138473		Lockwasher		Appelez-nous	-
42	WP486754		Screw, 6-32 X 1/4 (4)   (Replaces: 246119)				$ 6.75
43	312248		Screw, 8-32 X 1/2		Appelez-nous	-
44	312808		Knob, Timer (3)				$ 13.92
45	311073		Escutcheon Thermo		Appelez-nous	-
45	254225		Screw, 8a X 3/8		Appelez-nous	-
46	WP311068		Escutcheon, Selector   (Replaces: 311068)				$ 49.73
46	254225		Screw, 8a X 3/8		Appelez-nous	-
47	WP3150371		Knob, Control   (Replaces: 310834)				$ 19.40
48	308784		Bezel, Switch		Appelez-nous	-
50	308297		Foam Seal		Appelez-nous	-
