SELECT A DIAGRAM

02 - Oven


03 - Cabinet And Airflow


04 - Control


05 - Magnetron And Airflow


06 - Cabinet And Stirrer


07 - Door And Latch


08 - Cabinet And Hinge


09 - Oven Door


10 - Wiring Harness , Literature And Optional


11 - Wiring Harness

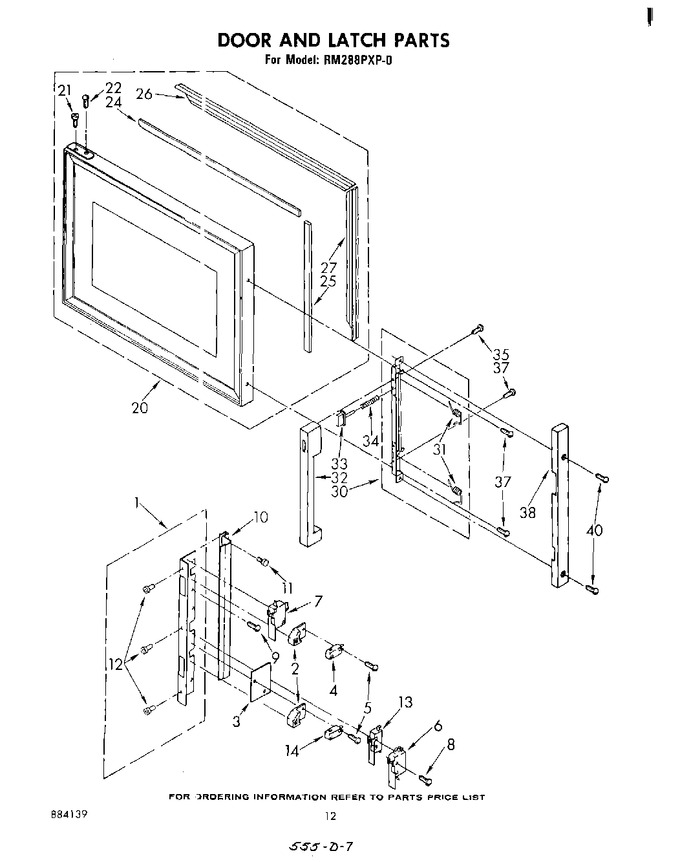

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311354		Bracket, Catch		Appelez-nous	-
1	312713		Screw, 8-32 X 3/8		Appelez-nous	-
2	311795		Catch (2)		Appelez-nous	-
3	313126		Insulator, Switch		Appelez-nous	-
4	814037		Switch, Primary Interlock (alt.)   (Replaces: 313125)				$ 81.32
4	814037		Switch, Primary Interlock   (Replaces: 661146)				$ 81.32
4	814037		Switch, Primary Interlock (alt.)   (Replaces: 313077)				$ 81.32
5	312717		Screw, 4-40 X 5/8 Pan Head Thread Form (4)		Appelez-nous	-
6	661145		Switch, Light/ Monitor		Appelez-nous	-
6	313076		Switch, Light Monitor (alt.)		Appelez-nous	-
6	313124		Switch, Light Monitor (alt.)		Appelez-nous	-
7	313120		Switch, Door		Appelez-nous	-
8	310211		Screw, 4-40 X 10 (2)		Appelez-nous	-
9	309080		Screw, 8-32 X 3/8 Slot Hex Washer Head Self-tapping (ground)		Appelez-nous	-
10	311360		Shield		Appelez-nous	-
11	310423		Fastener		Appelez-nous	-
12	311928		Rivet, Pop (3)				$ 5.33
13	661144		Switch, Miniature		Appelez-nous	-
13	313075		Switch, Miniature (alt.)		Appelez-nous	-
13	313123		Switch, Miniature (alt.)		Appelez-nous	-
14	814037		Switch, Secondary Interlock   (Replaces: 661146)				$ 81.32
14	814037		Switch, Secondary Interlock (alt.)   (Replaces: 313077)				$ 81.32
14	814037		Switch, Secondary Interlock (alt.)   (Replaces: 313125)				$ 81.32
20	329630		Door		Appelez-nous	-
21	WPW10068250		Screw, 8-32 X 5/16 Torx Fillister Head Chrome (2)   (Replaces: 311776)				$ 3.66
22	WPW10068250		Screw, 8-32 X 19/32 Torx Truss Head (6)   (Replaces: 311777)				$ 3.66
24	660574		Seal, Top & Bottom (2)		Appelez-nous	-
24	311634		Seal, Top & Bottom (2) (alternate)		Appelez-nous	-
24	311342		Seal, Top & Bottom (2) (alternate)		Appelez-nous	-
25	311343		Seal, Sides (alternate)		Appelez-nous	-
25	311635		Seal, Sides (alternate)		Appelez-nous	-
25	660575		Seal, Sides		Appelez-nous	-
26	311340		Retainer, Top & Bottom Seals (2)		Appelez-nous	-
27	311341		Retain, Side Seal (2)		Appelez-nous	-
30	329065		Latch Assembly		Appelez-nous	-
31	311352		Spring, Torsion (2)		Appelez-nous	-
32	312351		Handle, Door		Appelez-nous	-
33	312349		Button, Door Handle		Appelez-nous	-
34	310197		Spring, Compression		Appelez-nous	-
35	311959		Screw, 8-32 Fillister Head Thread Form		Appelez-nous	-
37	WP489128		Screw, 8-32 X 7/16 Hex Washer Head Thread Form (3)   (Replaces: 311722)				$ 9.79
38	312350		End Cap		Appelez-nous	-
40	310210		Screw, 8-32 X 5/16 Thread Form Truss Head (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
