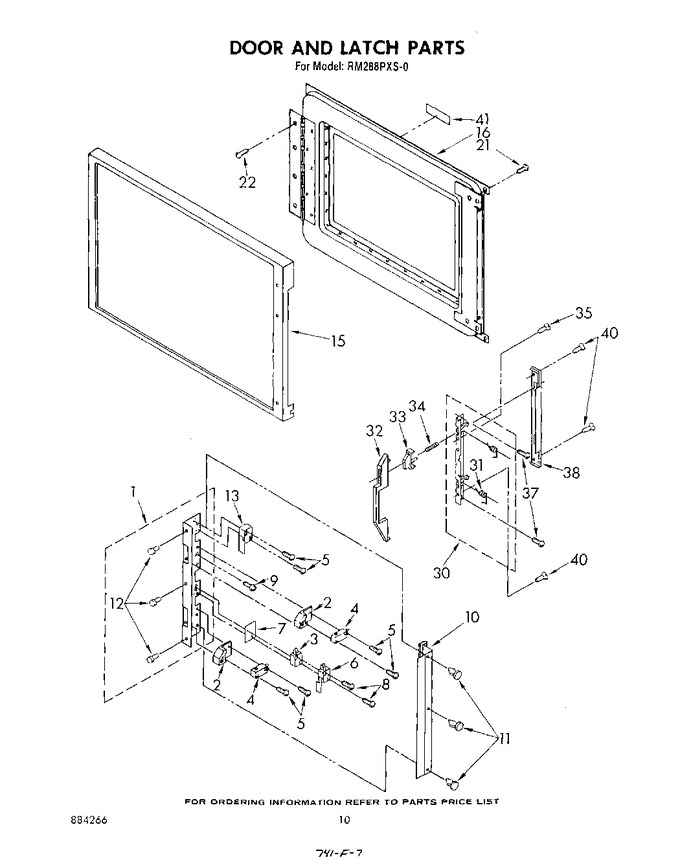

Diagram #	Part Number	Description	Availability	Ships	Price
1	311354	Bracket, Catch	Appelez-nous	-
1	312713	Screw, 8-32 X 3/8	Appelez-nous	-
2	311795	Catch (2)	Appelez-nous	-
3	661144	Switch	Appelez-nous	-
3	313123	Switch (alt.)	Appelez-nous	-
3	313075	Switch (alt.)	Appelez-nous	-
4	814037	Switch, Primary Interlock (alt.) (Replaces: 313125)			$ 81.32
4	814037	Switch, Primary Interlock (alt.) (Replaces: 313077)			$ 81.32
4	814037	Switch, Primary Interlock (Replaces: 661146)			$ 81.32
5	312717	Screw, 4-40 X 5/8 (6)	Appelez-nous	-
6	313124	Switch, Light Monitor (alt.)	Appelez-nous	-
6	313076	Switch, Light Monitor (alt.)	Appelez-nous	-
6	661145	Switch, Light/ Monitor	Appelez-nous	-
7	313126	Insulator	Appelez-nous	-
8	310211	Screw, 4-40 X 10 (2)	Appelez-nous	-
9	309080	Screw, 8-32 X 3/8 Slot Hex Washer Head Self-tapping (ground)	Appelez-nous	-
10	313740	Fastener (2)	Appelez-nous	-
10	311360	Shield	Appelez-nous	-
12	311928	Rivet, Pop (3)			$ 5.33
13	313120	Switch, Door	Appelez-nous	-
15	3170441	Frame, Door	Appelez-nous	-
16	3171012	Door, Inner	Appelez-nous	-
22	WPW10068250	Screw, 8-32 X 19/32 (Replaces: 311777)			$ 3.66
30	329066	Latch Assembly	Appelez-nous	-
31	311352	Spring, Torsion (2)	Appelez-nous	-
32	314169	Handle, Door	Appelez-nous	-
33	313611	Button, Door Handle (Replaces: 314168)			$ 35.65
34	310197	Spring, Compression	Appelez-nous	-
35	303776	Screw, 8-32 (2) (Replaces: 313811)	Appelez-nous	-
37	313820	Screw, 8-32 X 7/16 (2)	Appelez-nous	-
38	3148297	End Cap	Appelez-nous	-
40	313823	Screw, 8-32 X 5/16 (5)	Appelez-nous	-
41	3147575	Label, Guide (auto Sensor)	Appelez-nous	-
41	3147571	Label, Guide (defrost Guide)	Appelez-nous	-
