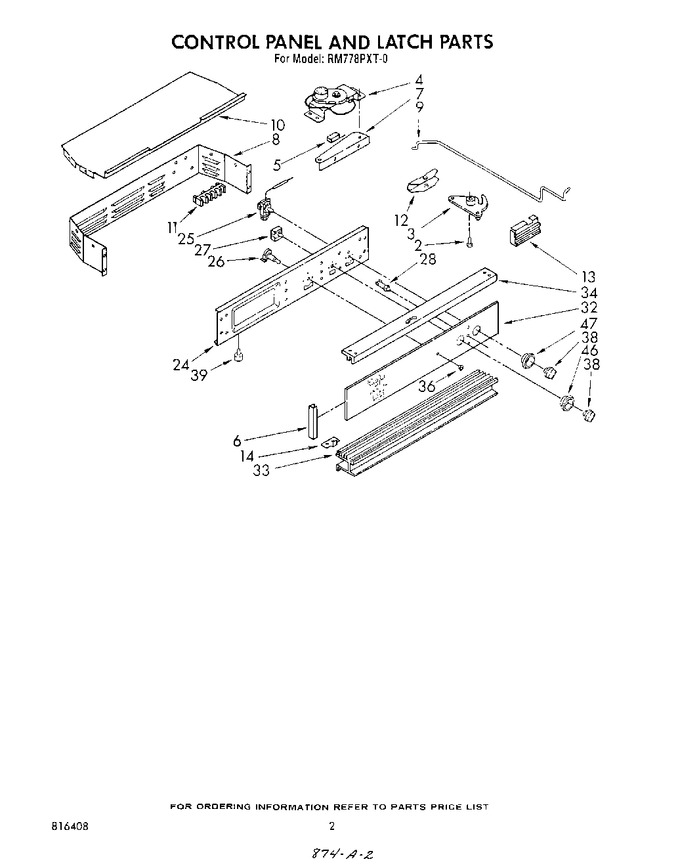

02 - Control Panel And Latch


03 - Door


04 - Lower Oven


05 - Microwave Mounting


06 - Magnetron And Airflow


07 - Cabinet And Stirrer


08 - Control Panel


09 - Door And Latch


10 - Wiring Harness , Literature And Optional


11 - Cabinet And Hinge


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	877884		Axle, Latch		Appelez-nous	-
3	816384		Latch, Door		Appelez-nous	-
4	816289		Motor, Latch Assembly		Appelez-nous	-
5	816454		Switch, Latch (2)		Appelez-nous	-
6	816331		Trim, Control Panel		Appelez-nous	-
7	816282		Plate, Motor Mounting		Appelez-nous	-
8	816275		Housing, Control		Appelez-nous	-
9	816288		Rod, Latch		Appelez-nous	-
10	816335		Cover, Housing		Appelez-nous	-
11	WP8203546		Terminal Block   (Replaces: 241212)			Immediately	$ 27.12
11	816308		Screw, Ground		Appelez-nous	-
11	816306		Screw		Appelez-nous	-
11	816307		Nut, Hex 10 X 32		Appelez-nous	-
12	877614		Housing, Latch		Appelez-nous	-
13	816276		Cover, Latch		Appelez-nous	-
14	816374		Bracket, Trim Mounting		Appelez-nous	-
24	816309		Bracket, Control		Appelez-nous	-
25	816413		Thermostat, Oven		Appelez-nous	-
26	816383		Switch, Oven Light		Appelez-nous	-
27	816313		Switch, Oven Selector		Appelez-nous	-
28	816315		Indicator Light (2) (lock, Oven)		Appelez-nous	-
28	816316		Indicator Light (clean)		Appelez-nous	-
32	816269		Panel, Glass (control)		Appelez-nous	-
33	816322		Trim, Vent		Appelez-nous	-
34	816346		Trim, Top		Appelez-nous	-
36	816332		Bezel, Switch		Appelez-nous	-
38	WP3150371		Knob, Control (2)   (Replaces: 310834)				$ 19.40
39	868363		Bumper (6)		Appelez-nous	-
46	WP311068		Escutcheon, Selector Switch   (Replaces: 311068)				$ 49.73
47	311066		Escutcheon, Thermostat				$ 25.00
