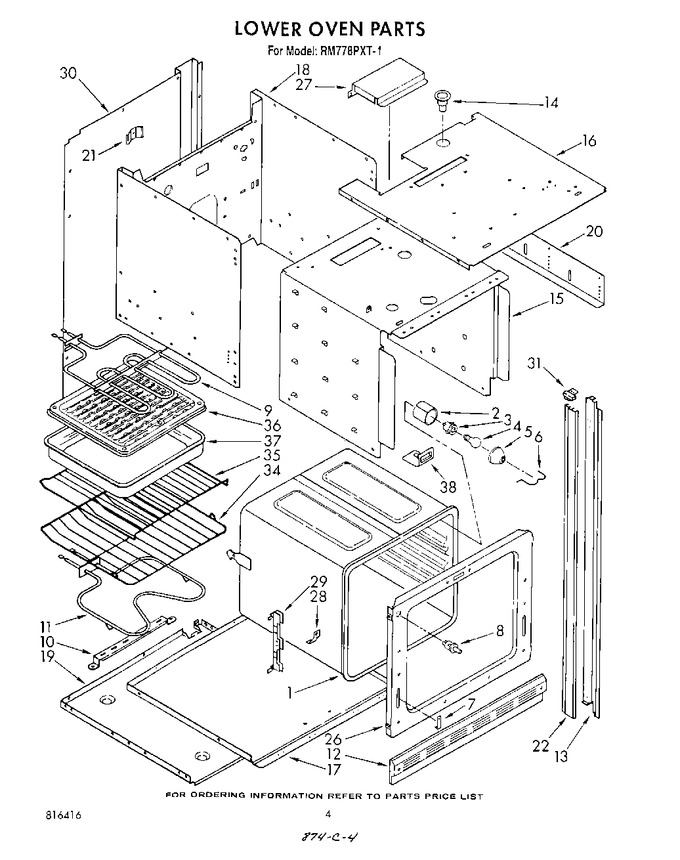

04 - Lower Oven


05 - Microwave Mounting


06 - Magnetron And Airflow


07 - Cabinet And Stirrer


08 - Control Panel


09 - Door And Latch


10 - Wiring Harness , Literature And Optional


11 - Cabinet And Hinge


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	816403		Oven (27`` Pyro)		Appelez-nous	-
2	816290		Cup, Light		Appelez-nous	-
3	W10856866		Receptacle, Light   (Replaces: 877803)				$ 6.47
4	40A15		Bulb, Light   (Replaces: 816389)			Immediately	$ 1.98
5	877804		Lens, Light		Appelez-nous	-
6	816291		Retainer, Lens		Appelez-nous	-
7	816379		Retainer, Door		Appelez-nous	-
8	816321		Switch, Oven Light		Appelez-nous	-
9	816295		Unit, Broil		Appelez-nous	-
10	816297		Support, Broil Unit		Appelez-nous	-
11	816293		Unit, Bake		Appelez-nous	-
12	816344		Trim, Base		Appelez-nous	-
13	816305		Side Trim (inner) (l.h.)		Appelez-nous	-
13	816271		Side Trim (inner) (r.h.)		Appelez-nous	-
14	816292		Vent Tube		Appelez-nous	-
15	816277		Insulation Retainer, Top And Sides		Appelez-nous	-
16	816396		Casing, Top		Appelez-nous	-
17	816278		Insulation Retainer, Bottom		Appelez-nous	-
18	816279		Casing, Back01 And Sides		Appelez-nous	-
19	816283		Casing, Bottom		Appelez-nous	-
20	816284		Support, Height		Appelez-nous	-
21	816287		Spring, Oven (2)		Appelez-nous	-
22	816317		Side Trim, Outer (2)		Appelez-nous	-
26	816386		Front Frame		Appelez-nous	-
27	816319		Cover, Motor		Appelez-nous	-
28	816387		Spacer, Oven		Appelez-nous	-
29	816388		Channel Assembly, Hinge (2)		Appelez-nous	-
30	816378		Cover, Rear		Appelez-nous	-
31	816333		End Cap, Top		Appelez-nous	-
34	816342		Rack, Oven Regular		Appelez-nous	-
35	816343		Rack, Oven Offset		Appelez-nous	-
36	816381		Grill, Broiler Pan		Appelez-nous	-
37	816382		Pan, Broiler		Appelez-nous	-
38	816414		Cover Plate		Appelez-nous	-
