SELECT A DIAGRAM

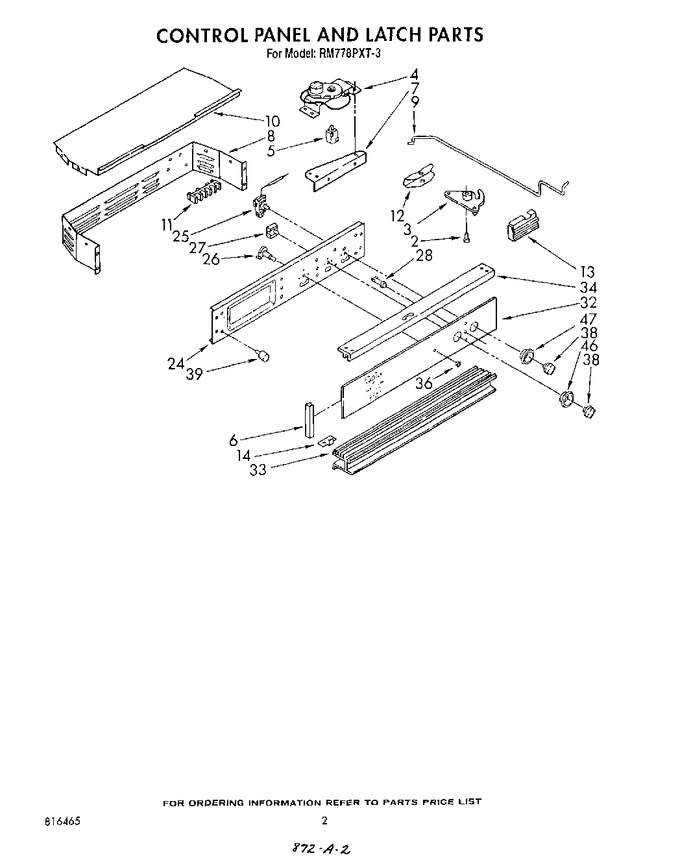

02 - Control Panel And Latch


03 - Door


04 - Lower Oven


05 - Microwave Mounting


06 - Magnetron And Air Flow


07 - Cabinet And Stirrer


08 - Control Panel


09 - Door And Latch


10 - Wiring Harness , Literature And Optional


11 - Cabinet And Hinge


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	877884		Axle, Latch		Appelez-nous	-
3	816384		Latch, Door		Appelez-nous	-
4	816289		Motor, Latch Assembly		Appelez-nous	-
4	241428		Screw, 10-24 X 1/2 (3)		Appelez-nous	-
5	816454		Switch, Latch (2)		Appelez-nous	-
6	816331		Trim, Control Panel		Appelez-nous	-
7	241428		Screw, 10 - 24 X 1/2 (2)		Appelez-nous	-
7	816282		Plate, Motor Mounting		Appelez-nous	-
8	241428		Screw, 10 - 24 X 1/2 (2)		Appelez-nous	-
8	816275		Housing, Control		Appelez-nous	-
8	WP308685		Screw, 10-24 X 1/2 (5)   (Replaces: 308685)			Immediately	$ 7.08
9	816288		Rod, Latch		Appelez-nous	-
10	816335		Cover, Housing		Appelez-nous	-
11	WP8203546		Terminal Block   (Replaces: 241212)			Immediately	$ 27.12
11	9426223		Screw, 10-16 X 1 (2)		Appelez-nous	-
12	877614		Housing, Latch		Appelez-nous	-
13	816276		Cover, Latch		Appelez-nous	-
14	816374		Bracket, Trim Mounting		Appelez-nous	-
24	816309		Bracket, Control		Appelez-nous	-
24	241428		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
25	877919		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
25	816413		Thermostat, Oven		Appelez-nous	-
26	816445		Switch, Oven Light		Appelez-nous	-
27	816313		Switch, Oven Selector		Appelez-nous	-
27	877919		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
28	816316		Indicator Light (clean)		Appelez-nous	-
28	816315		Indicator Light (2) (lock, Oven)		Appelez-nous	-
32	816269		Panel, Glass (control)		Appelez-nous	-
33	816322		Trim, Vent		Appelez-nous	-
33	241428		Screw, 10-24 X 1/2 (4)		Appelez-nous	-
34	487010		Screw, 6-32 X 1/2 (4)		Appelez-nous	-
34	816346		Trim, Top		Appelez-nous	-
36	816332		Bezel, Switch		Appelez-nous	-
38	WP3150371		Knob, Control (2)   (Replaces: 310834)				$ 19.40
39	868363		Bumper (6)		Appelez-nous	-
46	877919		Screw, 8-32 X 3/16		Appelez-nous	-
46	WP311068		Escutcheon, Selector Switch   (Replaces: 311068)				$ 49.73
47	877919		Screw, 8-32 X 3/16 Thermostat		Appelez-nous	-
47	816405		Escutcheon		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
