Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 313614 Trim, Shelf (front) Appelez-nous -
2 313615 Trim, Shelf (rear) Appelez-nous -
3 313639 Shelf, Microwave (install With Silastic 307576) Appelez-nous -
4 330514 Socket Appelez-nous -
4 312713 Screw, 8-32 X 3/8 (2) Appelez-nous -
5 WP3395618 Bulb, Oven Light   (Replaces: 313969) In-Stock Immediately $ 71.33

6 WP3149478 Support, Rack (4)   (Replaces: 313653) Special Order $ 8.64

7 816401 Rack Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

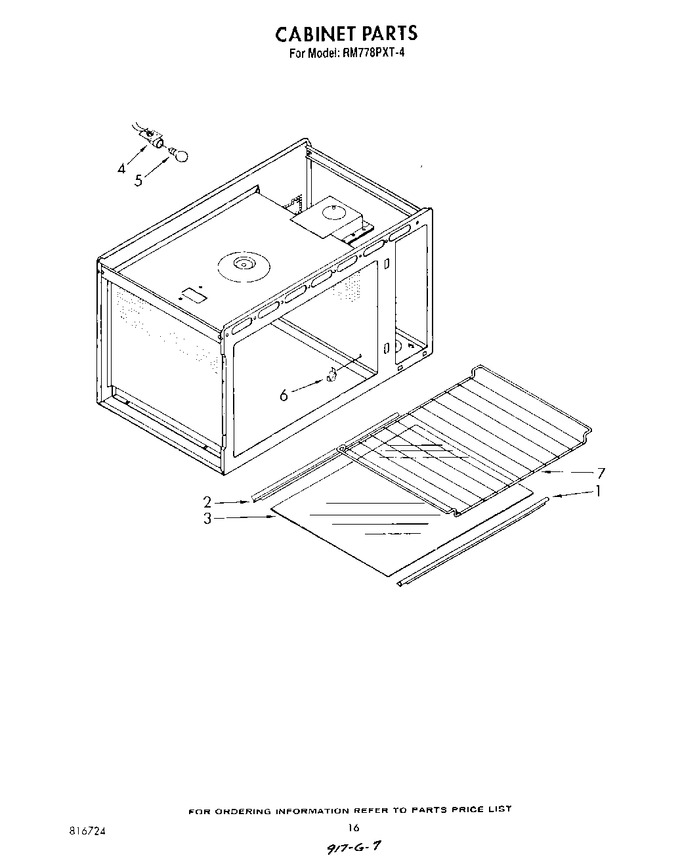

Diagram for RM778PXT4
