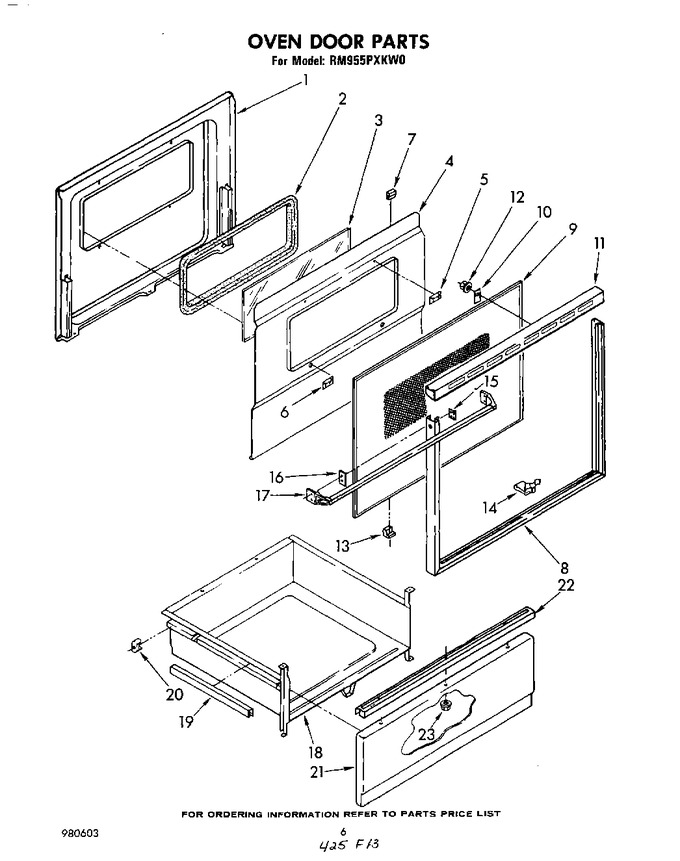

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327858		Liner, Door		Appelez-nous	-
1	WP308685		Screw, 10a X 1\2 (3)   (Replaces: 253549)			Immediately	$ 7.08
1	338177		``j`` Clip (2)		Appelez-nous	-
1	311056		Screw, (4)		Appelez-nous	-
2	258711		Seal, Pano Glass		Appelez-nous	-
3	258988		Glass, Inner 30``		Appelez-nous	-
4	307924		Baffle, Insulation		Appelez-nous	-
5	258990		Spacer, Insulation Baffle (2)		Appelez-nous	-
5	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
6	258990		Spacer, Insulation Baffle (2)		Appelez-nous	-
6	307748		Screw, 10a X 1/2 Black (2)		Appelez-nous	-
7	255859		Channel, Rubber (4)		Appelez-nous	-
8	310427		Frame, Door 30``		Appelez-nous	-
9	309069		Glass, Outer		Appelez-nous	-
10	310705		Hold Down, Glass (2)		Appelez-nous	-
11	307748		Screw, 10a X 1/2 Black (2)		Appelez-nous	-
11	310428		Top, Door Frame		Appelez-nous	-
12	WP90296		Fastener, Pushnut (2)   (Replaces: 308593)				$ 7.07
13	309152		Cushion, Oven Door (3)		Appelez-nous	-
14	310706		Clip, Glass (10)		Appelez-nous	-
15	311506		Clip (2)		Appelez-nous	-
16	310707		Spacer, Door Handle (2)		Appelez-nous	-
17	311573		Handle, Oven Door		Appelez-nous	-
17	WP912618		Screw, Handle (2)   (Replaces: 308541)				$ 6.98
18	327887		Drawer, Utility		Appelez-nous	-
19	309329		Protector, Drawer Side (2)		Appelez-nous	-
20	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
20	307980		Glide, Rear (2)		Appelez-nous	-
21	307935		Panel Drawer (white)		Appelez-nous	-
21	307938		Panel Drawer (harvest Gold)		Appelez-nous	-
21	307939		Panel, Drawer (almond)		Appelez-nous	-
21	309923		Panel Drawer (black)		Appelez-nous	-
21	307537		Panel, Drawer (screw, 8-32 (3))		Appelez-nous	-
22	310399		Handle, Drawer		Appelez-nous	-
22	WP912618		Screw (3)   (Replaces: 308541)				$ 6.98
23	WP486255		Palnut, 8-32   (Replaces: 308542)				$ 5.54
