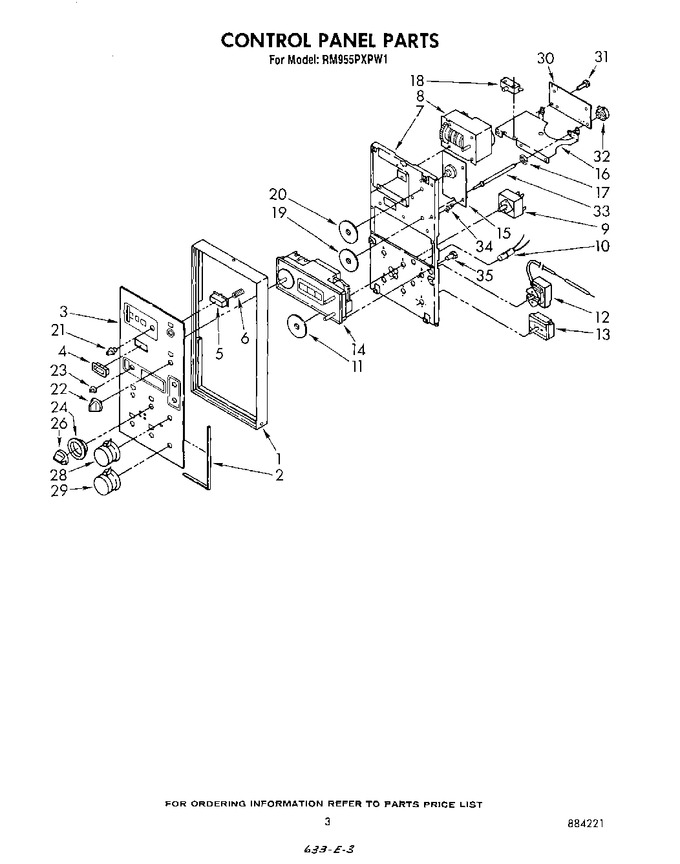

03 - Control Panel


04 - Oven


05 - Door And Drawer


06 - Oven (continued)


07 - Upper Chassis And Component


08 - Magnetron And Air Flow


09 - Cabinet And Stirrer


10 - Door And Latch


11 - Wiring Harness , Literature And Optional


12 - Section


13 - Cabinet And Hinge


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	313404		Frame, Control Panel		Appelez-nous	-
2	313500		Seal, Foam (2)		Appelez-nous	-
3	309170		Screw 8-18bt X 7/8		Appelez-nous	-
3	313403		Panel, Control		Appelez-nous	-
4	313081		Bezel, Start		Appelez-nous	-
5	313080		Button, Start		Appelez-nous	-
6	310201		Spring (2)		Appelez-nous	-
7	313140		Bracket, Control		Appelez-nous	-
7	312248		Screw, 8-32 X 1/2		Appelez-nous	-
7	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.07
8	254225		Screw 8bt X 1/4 (2)		Appelez-nous	-
8	254217		Screw, 10a X 3/8		Appelez-nous	-
8	313015		Timer, Digital		Appelez-nous	-
9	308119		Screw, 8-32 X 3/16 (8)		Appelez-nous	-
9	308475		Switch, Infinite (4)		Appelez-nous	-
10	313517		Light, Indicator (5)		Appelez-nous	-
11	309489		Dial, Surface Unit (4)		Appelez-nous	-
12	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
12	309611		Thermostat		Appelez-nous	-
13	310394		Switch, Selector (4 Pos.)		Appelez-nous	-
13	308119		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
14	313520		Timer, Digital		Appelez-nous	-
15	313489		Screw 4-40 X 5/8 (2)		Appelez-nous	-
15	61501		P.c. Board (temp Control)				$ 59.99
16	313344		Bracket, P.c. Board		Appelez-nous	-
16	309080		Screw, 8-32 X 3/8 (2)		Appelez-nous	-
16	254225		Screw, 8bt X 1/4 (3)		Appelez-nous	-
17	307640		Palnut		Appelez-nous	-
18	310162		Switch, Push		Appelez-nous	-
18	98106		Screw (2)		Appelez-nous	-
19	313410		Dail		Appelez-nous	-
20	WP308605		Strain Relief (3)   (Replaces: 308604)				$ 10.08
20	WP965173		Screw, 8a X 3/8 (3)   (Replaces: 246132)			Immediately	$ 9.65
20	313412		Dail, Temp. Selector		Appelez-nous	-
21	313047		Knob, Timer		Appelez-nous	-
22	313742		Knob, Timer (2)		Appelez-nous	-
23	330206		Knob, Timer		Appelez-nous	-
23	313311		Spring		Appelez-nous	-
24	309556		Bezel, Control Knob (4)		Appelez-nous	-
24	308348		Spring (4)		Appelez-nous	-
26	313307		Knob, Control (4)				$ 15.94
28	310410		Screw		Appelez-nous	-
28	328709		Knob, Thermostat		Appelez-nous	-
29	310410		Screw		Appelez-nous	-
29	328707		Knob, Selector		Appelez-nous	-
29	WP688805		Spring   (Replaces: 688805)			Immediately	$ 7.03
30	329907		Board, Power Control		Appelez-nous	-
31	309080		Screw (2)		Appelez-nous	-
32	60728		Potentiometer		Appelez-nous	-
33	313345		Shaft, Potentiometer		Appelez-nous	-
34	313087		Support (4)		Appelez-nous	-
35	309645		Nut, Extension (4)		Appelez-nous	-
