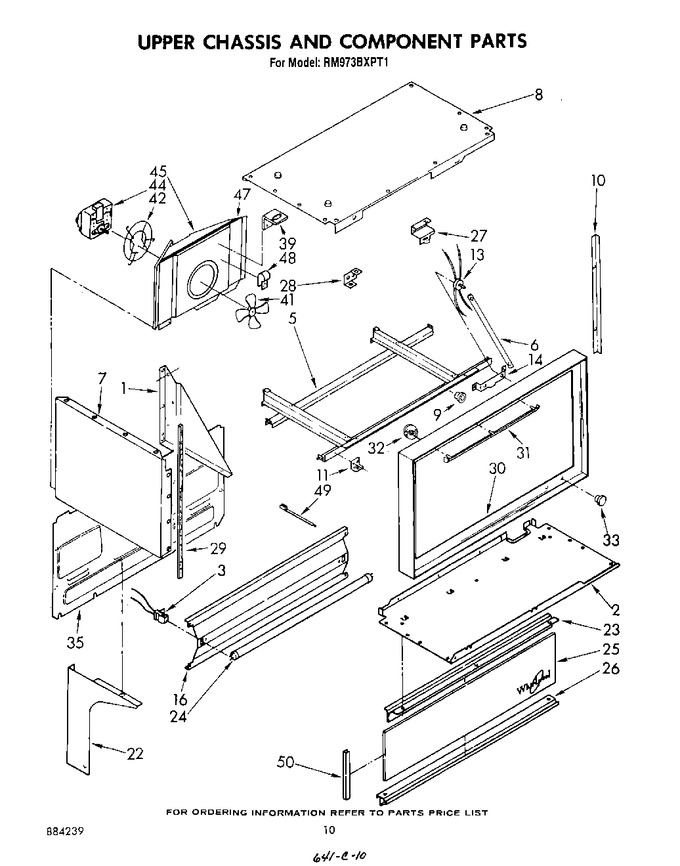

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	312812		Gusset, L.h.		Appelez-nous	-
1	WP681414		Screw, 10-16 X 1/2 (6)   (Replaces: 343641)			Immediately	$ 7.07
1	312810		Gusset, R.h.		Appelez-nous	-
2	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
2	312783		Bumper (4)		Appelez-nous	-
2	313331		Panel, Bottom		Appelez-nous	-
3	313468		Socket Assembly L.h.		Appelez-nous	-
3	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 9.65
3	313469		Socket Assembly R.h.		Appelez-nous	-
5	328397		Support, Frame		Appelez-nous	-
5	WP681414		Screw, 10-16 X 1/2 (10)   (Replaces: 343641)			Immediately	$ 7.07
5	WP308685		Screw, 10a X 1/2 (2)   (Replaces: 253549)			Immediately	$ 7.08
6	311933		Strap, Support (2)		Appelez-nous	-
6	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
7	312265		Side Panel L.h. (almond)		Appelez-nous	-
7	WP681414		Side Panel, L.h. (screw, 10-16 X 1/2 (6))   (Replaces: 343641)			Immediately	$ 7.07
7	312272		Side Panel L.h. (almond)		Appelez-nous	-
7	WP488627		Side Panel L.h. (screw, 8a X 1/2 (2) Side Panel R.h.)   (Replaces: 338156)				$ 6.81
8	WP488729		Top Panel (screw, 8-18 X 1/2)   (Replaces: 313638)			Immediately	$ 7.01
8	WP965173		Top Panel (screw, 8a X 3/8 (8))   (Replaces: 246132)			Immediately	$ 9.65
8	308297		Top Panel (seal, Foam)		Appelez-nous	-
8	312279		Top Panel (almond)		Appelez-nous	-
9	309552		Bushing		Appelez-nous	-
10	309629		Angle, Side Panel R.h.		Appelez-nous	-
10	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 9.65
11	309454		Bracket, Frame Mounting (3)		Appelez-nous	-
11	WP681414		Screw, 10-16 X 1/2 (6)   (Replaces: 343641)			Immediately	$ 7.07
13	313483		Switch, Fluorescent Light		Appelez-nous	-
14	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
14	309455		Bracket, Switch Mounting		Appelez-nous	-
16	313577		Panel, Backguard		Appelez-nous	-
22	308043		End Trim R.h. (screw, 10-12 X 7/8 (4))		Appelez-nous	-
22	WP681414		End Trim R.h. (screw, 10-16 X 1/2 (4))   (Replaces: 343641)			Immediately	$ 7.07
22	330197		End Trim R.h. (almond End Trim L.h.)		Appelez-nous	-
22	330203		End Trim R.h. (almond)		Appelez-nous	-
23	313320		Trim, Glass (top)		Appelez-nous	-
23	WP488627		Screw, 8a X 1/2 (3)   (Replaces: 338156)				$ 6.81
24	WP95292		Lamp, Fluorescent   (Replaces: 95292)			Immediately	$ 121.45
25	313322		Panel, Glass		Appelez-nous	-
26	313321		Trim, Glass (bottom)		Appelez-nous	-
27	311953		Bracket, Control Panel Mounting		Appelez-nous	-
28	WP681414		Screw, 10-16 X 1/2 (5)   (Replaces: 343641)			Immediately	$ 7.07
28	312237		Bracket, Chassis Mounting		Appelez-nous	-
29	WP339956		Seal Foam   (Replaces: 339956)			Immediately	$ 7.77
30	WP488627		Screw, 8a X 1/2 (6)   (Replaces: 338156)				$ 6.81
30	313548		Frame, Outer		Appelez-nous	-
31	309499		Deflector, Air		Appelez-nous	-
32	WP90296		Clip (3)   (Replaces: 90296)				$ 7.07
33	313030		Bezel, Switch (2)		Appelez-nous	-
35	WP681414		Screw, 10-16 X 1/2 (9)   (Replaces: 343641)			Immediately	$ 7.07
35	308112		Cover, Rear		Appelez-nous	-
39	254217		Screw, 10a X 3/8 (4)		Appelez-nous	-
39	308839		Bracket, Receptacle (2)		Appelez-nous	-
41	307602		Nut, Hex 6-32 (2)		Appelez-nous	-
41	307535		Blade, Fan		Appelez-nous	-
42	310420		Mount, Fan Motor		Appelez-nous	-
44	312389		Motor		Appelez-nous	-
45	312340		Bracket, Fan		Appelez-nous	-
47	WP339956		Seal, Air Duct (2)   (Replaces: 339956)			Immediately	$ 7.77
48	WP488366		Strain Relief   (Replaces: 308601)				$ 10.06
48	254217		Screw, 10a X 3/8		Appelez-nous	-
49	WPW10339879		Cable, Tie   (Replaces: 309330)				$ 7.11
50	313319		Trim, End (glass) (2)		Appelez-nous	-
