Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3148090 Frame, Control Panel Appelez-nous -
2 3147942 Module, Control Appelez-nous -
2 313818 Screw, 8-32 X 3/16 (6) Appelez-nous -
3 3147280 Bracket, Control (mounting) Appelez-nous -
3 313818 Screw, 8-32 X 3/16 (4) Appelez-nous -
4 3147032 Skirt, Dail (4) Appelez-nous -
5 313532 Thermostat Appelez-nous -
5 WP313808 Screw, 6-32 X 1/4 (2)   (Replaces: 311932) Special Order $ 6.84

6 308119 Screw, 8-32 X 3/16 (8) Appelez-nous -
6 3147234 Switch, Selector Appelez-nous -
7 308477 Switch, Infinite (4) Appelez-nous -
7 308119 Screw, 8-32 X 3/16 (8) Appelez-nous -
8 3147862 Light, Indicator (4) Appelez-nous -
9 3147030 Knob, Control (4) Appelez-nous -
10 3147288 Knob, Selector (2) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

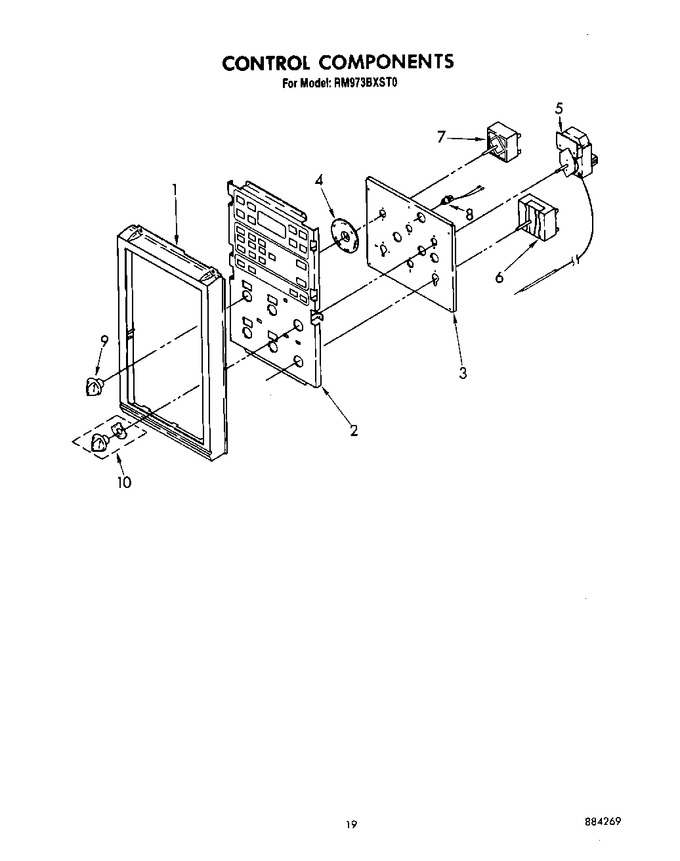

Diagram for RM973BXST0
