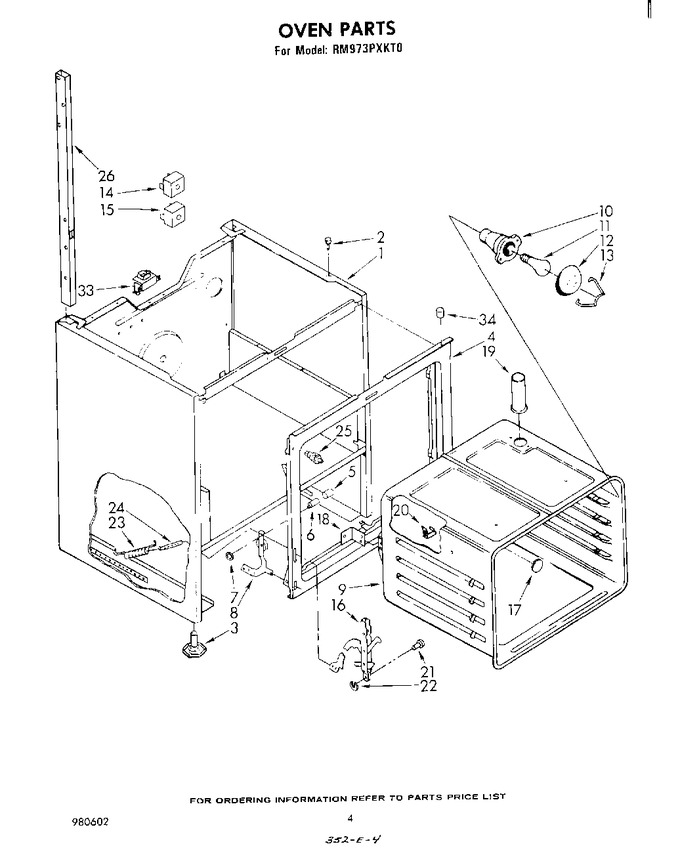

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 327875 | Main Chassis (almond) |
|
- | |||||
| 2 | 328614 | Bumper, Cooktop (2) |
|
- | |||||
| 3 | WP233550 | Leg Leveling (4) (Replaces: 233550) |
|
$ 7.16 | |||||
| 4 | 327886 | Frame, Front |
|
- | |||||
| 4 | WP681414 | Screw, 10-16 X 1/2 (15) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 5 | 307985 | Pin, Hinge |
|
$ 29.54 | |||||
| 6 | 309111 | Snubber, Door (2) |
|
- | |||||
| 7 | 308306 | Pushnut |
|
- | |||||
| 8 | WP681414 | Screw, 10-32 Hex (4) (Replaces: 343631) |
|
Immediately | $ 7.07 | ||||
| 8 | 327891 | Hinge (l.h.) |
|
- | |||||
| 8 | 327890 | Hinge (r.h.) |
|
- | |||||
| 9 | 311056 | Screw (3) |
|
- | |||||
| 9 | 329002 | Oven (30`` Pyro) |
|
- | |||||
| 10 | 307856 | Socket, Lamp (alternate) |
|
- | |||||
| 10 | 310208 | Socket, Lamp (alternate) |
|
Immediately | $ 36.34 | ||||
| 10 | 308043 | Socket, Lamp (screw, 10-12 X 7/8 (2)) |
|
- | |||||
| 11 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 12 | 308039 | Cover, Light |
|
- | |||||
| 13 | 308038 | Retainer, Light |
|
- | |||||
| 14 | 310643 | Switch, Broil |
|
- | |||||
| 15 | 310644 | Switch, Bake |
|
- | |||||
| 16 | 327892 | Channel, Arm (2) |
|
- | |||||
| 17 | 257314 | Plug Button |
|
- | |||||
| 18 | 311220 | Bracket, Oven (mounting) |
|
- | |||||
| 18 | WP681414 | Screw, 10-16 X 1/2 (4) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 19 | WP308685 | Screw, 10a X 1/2 (2) (Replaces: 253549) |
|
Immediately | $ 7.08 | ||||
| 19 | 309025 | Vent, Oven |
|
- | |||||
| 20 | 98005642 | Clip, Therm Bulb (2) (Replaces: 258139) |
|
Immediately | $ 74.64 | ||||
| 21 | WP307986 | Hinge Pin (2) (Replaces: 307986) |
|
$ 11.78 | |||||
| 22 | 307594 | Ring, Retainer (2) |
|
- | |||||
| 23 | WP308126 | Spring, Oven Door (2) (Replaces: 308126) |
|
$ 38.15 | |||||
| 24 | WP308125 | Anchor, Spring (2) (Replaces: 308125) |
|
$ 10.94 | |||||
| 25 | 310345 | Switch, Door |
|
$ 94.86 | |||||
| 26 | 308111 | Support, Tubing R.h. |
|
- | |||||
| 26 | Y308109 | Support, Tubing L.h. (Replaces: 308109) |
|
$ 53.59 | |||||
| 33 | WP681414 | Ballast (screw, 10-16 X 1/2 (2)) (Replaces: 343641) |
|
Immediately | $ 7.07 | ||||
| 33 | 346772 | Ballast (alternate) |
|
- | |||||
| 33 | 685591 | Ballast (alternate) |
|
- | |||||
| 34 | 311909 | Locator, Cooktop |
|
- | |||||
| 34 | 310210 | Screw, 8-32 X 5/16 (2) |
|
- |
