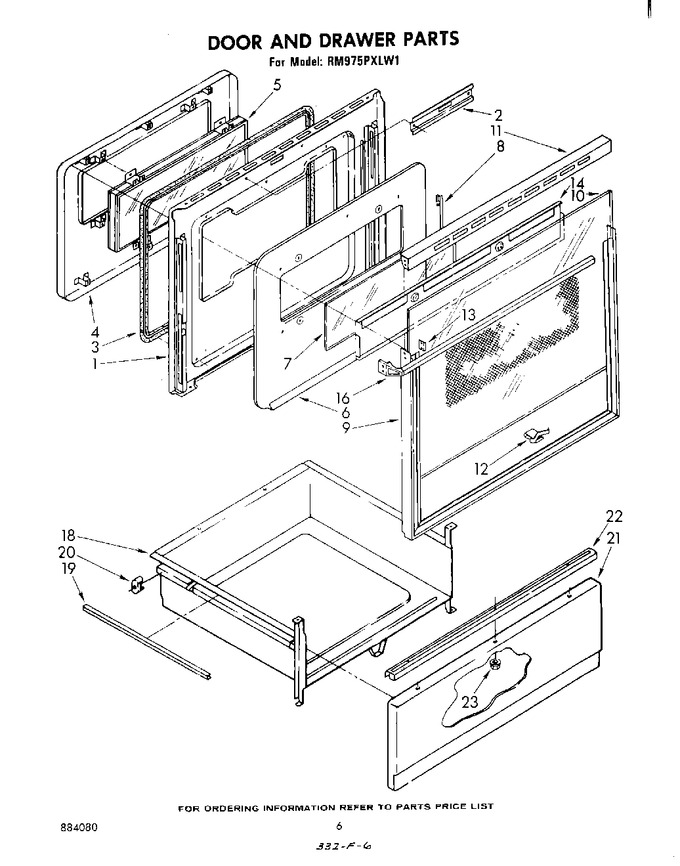

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 329694 | Liner, Door |
|
- | |||||
| 1 | WP308685 | Screw, 10a X 1/2 (9) (Replaces: 253549) |
|
Immediately | $ 7.08 | ||||
| 2 | 308033 | Channel, Latch |
|
- | |||||
| 2 | 311054 | Screw (2) |
|
- | |||||
| 3 | 311904 | Seal, Fiberglass |
|
- | |||||
| 4 | 327898 | Panel, Inner |
|
- | |||||
| 5 | 307748 | Screw, 10a X 1/2 (10) |
|
- | |||||
| 5 | 309844 | Window Package |
|
- | |||||
| 6 | 307748 | Screw, 10a X 1/2 (8) |
|
- | |||||
| 6 | 308021 | Retainer, Insulation |
|
- | |||||
| 7 | 309842 | Glass (6.81`` X 18.31``) |
|
- | |||||
| 8 | 309843 | Retainer, Glass |
|
- | |||||
| 9 | 310427 | Frame, Door |
|
- | |||||
| 10 | 309069 | Glass, Outer |
|
- | |||||
| 11 | 310428 | Top, Door Frame |
|
- | |||||
| 11 | 307748 | Screw, 10a X 1/2 (2) (black) |
|
- | |||||
| 12 | 310706 | Clip, Glass (8) |
|
- | |||||
| 13 | 311506 | Clip (2) |
|
- | |||||
| 14 | WP90296 | Clip (2) (Replaces: 90296) |
|
$ 7.07 | |||||
| 14 | 309056 | Baffle, Heat |
|
- | |||||
| 16 | WP355515 | Screw, 8 X 7/8 (4) (Replaces: 355515) |
|
$ 6.90 | |||||
| 16 | 312721 | Handle, Oven Door |
|
- | |||||
| 16 | WP912618 | Screw (4) (Replaces: 308541) |
|
$ 6.98 | |||||
| 18 | 327887 | Drawer, Utility |
|
- | |||||
| 19 | 309329 | Protector, Drawer Side (2) |
|
- | |||||
| 20 | 307748 | Screw, 10a X 1/2 (2) |
|
- | |||||
| 20 | 307980 | Glide, Rear (2) |
|
- | |||||
| 21 | 307935 | Panel Drawer (white) |
|
- | |||||
| 21 | 307939 | Panel, Drawer (almond) |
|
- | |||||
| 21 | WP488787 | Panel Drawer (screw, 8-18 X 1/2 (3)) (Replaces: 312566) |
|
$ 9.52 | |||||
| 21 | 309923 | Panel Drawer (black) |
|
- | |||||
| 21 | 307938 | Panel Drawer (harvest Gold) |
|
- | |||||
| 22 | WP912618 | Screw (3) (Replaces: 312578) |
|
$ 6.98 | |||||
| 22 | 307956 | Handle, Drawer |
|
- | |||||
| 23 | WP486255 | Palnut, 8-32 (Replaces: 308542) |
|
$ 5.54 |
