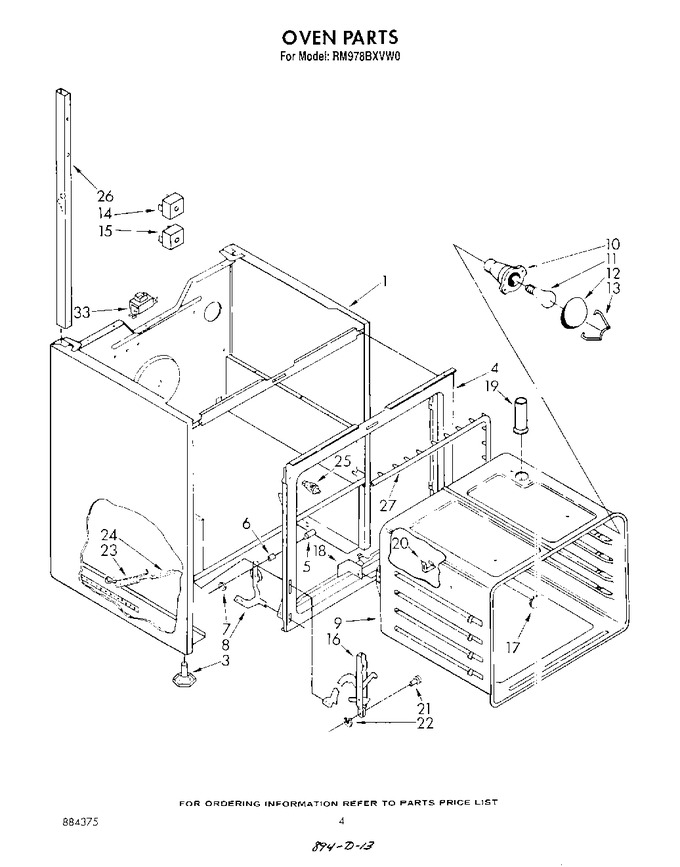

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	330086		Main Chassis (white)		Appelez-nous	-
1	WP681414		Main Chassis (screw, 10-16 X 1/2 (2))   (Replaces: 343641)			Immediately	$ 7.07
1	WP681414		Main Chassis (screw 10-32 X 1/2 (2))   (Replaces: 690989)			Immediately	$ 7.07
1	330090		Main Chassis (almond)		Appelez-nous	-
3	WPW10058460		Leg Leveling (4)   (Replaces: 312701)			Immediately	$ 7.07
4	3170856		Frame, Front		Appelez-nous	-
4	WP681414		Screw, 10-16 X 1/2 (13)   (Replaces: 343641)			Immediately	$ 7.07
5	307985		Pin, Hinge (2)				$ 29.54
6	309111		Snubber, Door (2)		Appelez-nous	-
7	308306		Pushnut (2)		Appelez-nous	-
8	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
8	327891		Hinge (l.h.)		Appelez-nous	-
8	327890		Hinge (r.h.)		Appelez-nous	-
9	311056		Screw (3)		Appelez-nous	-
9	329002		Oven (30`` Pyro)		Appelez-nous	-
10	307856		Socket, Lamp (alt.)		Appelez-nous	-
10	310208		Socket, Lamp (alt.)			Immediately	$ 36.34
10	660556		Socket, Lamp		Appelez-nous	-
11	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
12	308039		Cover, Light		Appelez-nous	-
13	308038		Retainer, Light		Appelez-nous	-
14	314209		Switch, Broil		Appelez-nous	-
14	314215		Screw, No.6		Appelez-nous	-
15	314215		Screw, No.6		Appelez-nous	-
15	314210		Switch, Bake		Appelez-nous	-
16	329710		Channel, Arm (2)		Appelez-nous	-
17	257314		Plug Button		Appelez-nous	-
18	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
18	311220		Bracket, Oven (mounting)		Appelez-nous	-
19	307961		Vent, Oven		Appelez-nous	-
19	307748		Screw, 10a X 1/2 (4)		Appelez-nous	-
20	98005642		Clip, Therm Bulb (2)   (Replaces: 313382)			Immediately	$ 74.64
21	WP307986		Hinge Pin (2)   (Replaces: 307986)				$ 11.78
22	307594		Ring, Retainer (2)		Appelez-nous	-
23	308127		Spring, Door (2)				$ 11.75
24	WP308125		Anchor, Spring (2)   (Replaces: 308125)				$ 10.94
25	310345		Switch, Door				$ 94.86
26	314195		Support, Tubing R.h.		Appelez-nous	-
26	314197		Support, Tubing L.h.		Appelez-nous	-
27	3148284		Seal, Door		Appelez-nous	-
33	WP482338		Sealer, Silastic (3 Oz.)   (Replaces: 482338)			Immediately	$ 57.16
33	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
33	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
33	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
33	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
33	285368		Platinum (uncut)		Appelez-nous	-
33	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
33	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
33	261582		Grease		Appelez-nous	-
33	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
33	591014		Adhesive Loctite (1/3 Oz.)		Appelez-nous	-
33	WP75614		Line, Splice (5)   (Replaces: 309551)				$ 44.41
33	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
33	242985		Rotisserie Kit		Appelez-nous	-
33	814023		Non-vent Kit		Appelez-nous	-
33	660001		Ballast		Appelez-nous	-
33	346772		Ballast (alt.)		Appelez-nous	-
33	685591		Ballast (alt.)		Appelez-nous	-
33	3147918		Harness, Wiring (main Oven)		Appelez-nous	-
33	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
33	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
33	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
33	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
33	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
33	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
33	242829		Wire, Red 12 Ga. 150 Oc		Appelez-nous	-
33	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
33	242831		Wire (14 Ga. 200 C Red)				$ 342.23
33	242826		Wire, White 14 Ga. 150 Oc		Appelez-nous	-
33	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
33	242832		Wire, Yellow 14 Ga. 200 Oc		Appelez-nous	-
33	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
33	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
33	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
33	WP261869		Citrine White (microwave)   (Replaces: 261869)				$ 23.85
33	254323		Touch-up, Oven		Appelez-nous	-
33	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
33	350942		Primer (white)   (Replaces: 206922)				$ 80.69
33	206925		Leveler, Enamel		Appelez-nous	-
33	261890		Harvest Gold		Appelez-nous	-
33	285365		Toast		Appelez-nous	-
33	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
33	285006		Enamel, Black   (Replaces: 799339)			Immediately	$ 51.34
33	350930		White   (Replaces: 799343)			Immediately	$ 34.39
33	261900		Citrine White (5 Oz.)				$ 51.34
33	799340		Black (uncut)		Appelez-nous	-
33	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
33	261891		Harvest Gold (uncut)		Appelez-nous	-
33	978883		Almond (uncut)		Appelez-nous	-
33	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
	LIT312891		Use & Care Guide		Appelez-nous	-
	308043		Screw, 10-12 X 7/8 (2)		Appelez-nous	-
	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
	LIT884375		List, Repair Parts		Appelez-nous	-
	LIT313358		Book, Cooking Guide		Appelez-nous	-
	LIT3147964		Tech Sheet		Appelez-nous	-
	LIT311895		Cookbook (microwave)		Appelez-nous	-
	LIT312889		Use & Care Guide (microwave)		Appelez-nous	-
	LIT3147286		Installation Instructions		Appelez-nous	-
