Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 312602 Frame, Control Panel Appelez-nous -
2 312618 Switch Membrane Appelez-nous -
3 312743 Splice Panel Appelez-nous -
4 312422 Control Panel, Glass Appelez-nous -
4 308297 Seal, Foam Appelez-nous -
5 312603 Bottom Cap, Control Panel Appelez-nous -
6 348689 Screw, No. 8 (2) Special Order $ 66.92

7 61027 Power Control (includes Illus. 8) Special Order $ 28.88

7 61053 Clip (2) Appelez-nous -
8 60776 Display, Clock (yellow) Appelez-nous -
9 WP313808 Screw, 6-32 X 1/4 (3)   (Replaces: 311932) Special Order $ 6.84

10 309485 Bracket, P.c. Board Appelez-nous -
10 WP313808 Screw, 6a X 1/4 (2)   (Replaces: 311932) Special Order $ 6.84

11 138473 Lockwasher Appelez-nous -
13 60792 Power Supply Assembly Appelez-nous -
14 309258 Screw, 6 X 3/8 (2) Appelez-nous -
15 TB1056 Transformer & Harness Assembly   (Replaces: 60355) Appelez-nous -
15 WP313808 Screw, 6-32 X 1/4   (Replaces: 311932) Special Order $ 6.84

16 138473 Lockwasher Appelez-nous -
17 309258 Screw, 6 X 3/8 Appelez-nous -
19 310370 Relay, Power (12v) (alternate) Appelez-nous -
19 310372 Relay, Power (12v) (alternate) Appelez-nous -
19 309258 Relay, Power (12v) (screw, 6 X 3/8 (2)) Appelez-nous -
22 60779 Microcomputer Assembly Appelez-nous -
23 328430 Protector Assembly Appelez-nous -
24 310951 Rivet Appelez-nous -
25 309080 Screw, 8-32 X 3/8 (2) Appelez-nous -
26 WPW10339879 Cable, Tie   (Replaces: 309330) Special Order $ 7.11

27 309434 Timer, Auto Appelez-nous -
28 308443 Motor, Timer Appelez-nous -
29 309645 Nut, Aluminum (4) Appelez-nous -
32 329791 Bracket, Control Mounting Appelez-nous -
33 311545 Light, Indicator (250v) (7) Appelez-nous -
34 310023 Thermostat (lower Oven) Appelez-nous -
35 487384 Screw, 6-32 X 1/4 (2) Appelez-nous -
35 310054 Insulator Appelez-nous -
36 308119 Screw, 8-32 X 3/16 (2) Appelez-nous -
36 310007 Switch, Selector Appelez-nous -
37 308119 Screw, 8-32 X 3/16 (8) Appelez-nous -
37 308475 Switch, Infinite (4) Appelez-nous -
38 328923 Resistor & Terminal Assembly Appelez-nous -
39 WP308605 Strain Relief   (Replaces: 308604) Special Order $ 10.08

39 WP965173 Screw, 8a X 3/8 (3)   (Replaces: 246132) In-Stock Immediately $ 9.65

39 488946 Strain Relief   (Replaces: 308606) Special Order $ 18.41

39 WP308605 Strain, Relief   (Replaces: 308605) Special Order $ 10.08

40 309489 Skirt, Knob (4) Appelez-nous -
41 138473 Lockwasher Appelez-nous -
42 WP313808 Screw 6-32 X 1/4 (4)   (Replaces: 311932) Special Order $ 6.84

43 312248 Screw Appelez-nous -
44 312808 Knob, Timer (3) Special Order $ 13.92

45 309556 Bezel, Control Knob (4) Appelez-nous -
46 308348 Spring, Bezel (4) Appelez-nous -
47 313307 Knob, Control (4) Special Order $ 15.94

48 328709 Knob, Thermostat Appelez-nous -
49 WP688805 Clip, Spring   (Replaces: 688805) In-Stock Immediately $ 7.03

49 328707 Knob, Selector Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

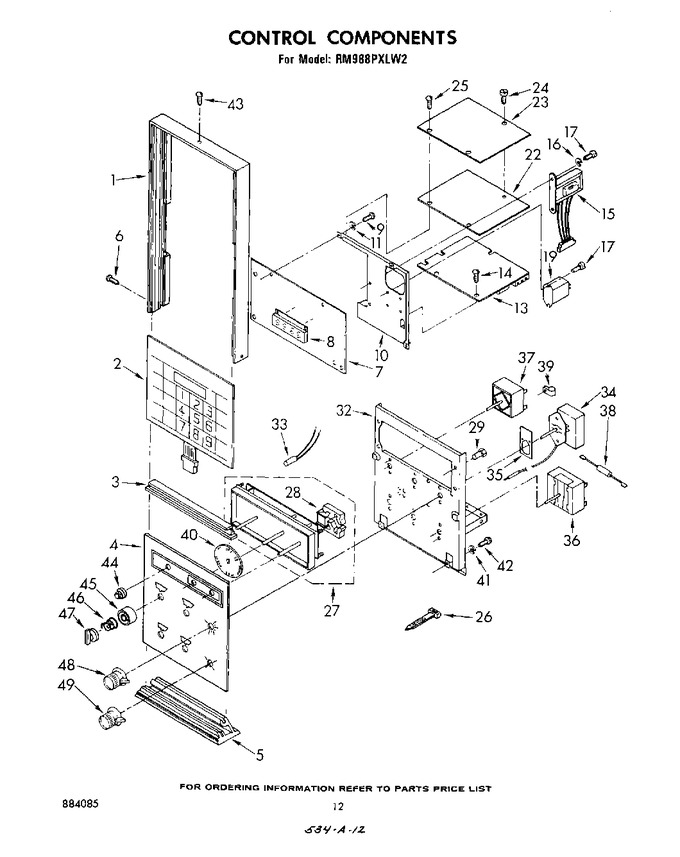

Diagram for RM988PXLW2
