SELECT A DIAGRAM

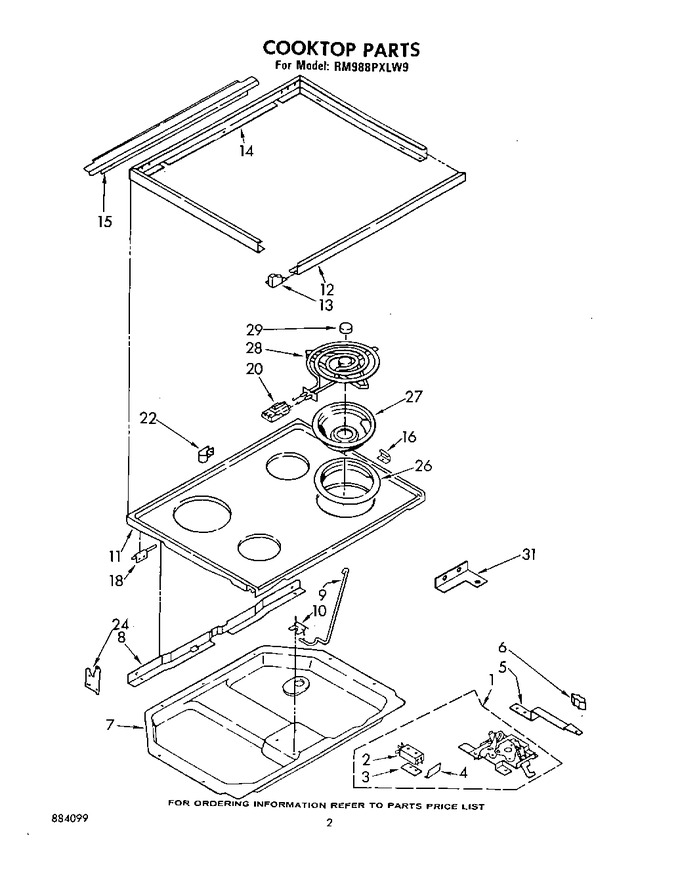

02 - Cooktop


03 - Oven , Oven


04 - Door And Drawer


05 - Section


06 - Upper Chassis And Component


07 - Control


08 - Magnetron And Airflow


09 - Cabinet And Stirrer , Literature


10 - Door And Latch


11 - Wiring Harness


12 - Cabinet And Hinge


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
1	328585		Latch Assembly (pyro)		Appelez-nous	-
2	98106		Screw (2)		Appelez-nous	-
2	308185		Safety Switch		Appelez-nous	-
3	309245		Insulator, Switch		Appelez-nous	-
4	309258		Screw, 6b X 3/8 (2)		Appelez-nous	-
4	WP313808		Screw, 6-32 X 1/4 (2)   (Replaces: 311932)				$ 6.84
4	313035		Shield, Latch Terminal		Appelez-nous	-
5	308422		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
5	308413		Handle, Latch		Appelez-nous	-
5	247326		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
6	307977		Knob, Latch		Appelez-nous	-
6	WP488787		Screw, 8-18 X 1/2   (Replaces: 312566)				$ 9.52
7	WP3390631		Screw, 10a X 3/8 (4)   (Replaces: 309112)				$ 7.04
7	308827		Burner Box		Appelez-nous	-
7	WP681414		Screw, 10-16 X 1/2 (2)   (Replaces: 343641)			Immediately	$ 7.07
8	308968		Shield, Wiring		Appelez-nous	-
9	307968		Rod, Cooktop		Appelez-nous	-
10	WP3390631		Screw, 10a X 3/8   (Replaces: 309112)				$ 7.04
10	307967		Retainer, Cooktop		Appelez-nous	-
11	313170		Cooktop (platinum)		Appelez-nous	-
11	338177		Cooktop (clip (2))		Appelez-nous	-
11	308427		Cooktop (white)		Appelez-nous	-
11	308424		Cooktop (harvest Gold)		Appelez-nous	-
11	309013		Cooktop (almond)		Appelez-nous	-
11	313169		Cooktop (toast)		Appelez-nous	-
12	311911		Trim, Cooktop Front		Appelez-nous	-
13	308445		End Cap Trim R.h.		Appelez-nous	-
13	309051		Screw, 8a X 3/8 (2)		Appelez-nous	-
13	98084		Clip (4)		Appelez-nous	-
13	308444		End Cap Trim L.h.		Appelez-nous	-
14	W11693756		Screw, 8a X 5/8 (4)   (Replaces: 258665)			Immediately	$ 12.65
14	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
14	308619		Trim, Cooktop Side & Rear		Appelez-nous	-
15	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
15	308981		Trim, Rear		Appelez-nous	-
16	307748		Screw, 10a X 1/2 (6)		Appelez-nous	-
16	308621		Bracket, Cooktop (6)		Appelez-nous	-
18	307748		Screw, 10a X 1/2 (4)		Appelez-nous	-
18	328238		Hinge, Leaf Cooktop L.h.		Appelez-nous	-
18	328239		Hinge, Leaf Cooktop R.h.		Appelez-nous	-
20	WP313808		Screw 6-32 X 1/4 (4)   (Replaces: 311932)				$ 6.84
20	330031		Receptacle Clip (4)   (Replaces: 258858)			Immediately	$ 14.48
22	WP681414		Screw, 10-32 X 1/2 (2)   (Replaces: 690989)			Immediately	$ 7.07
22	WP308605		Strain Relief (cooktop Harness)   (Replaces: 308604)				$ 10.08
22	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 9.65
24	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.07
24	308993		Hinge, Cooktop (2)		Appelez-nous	-
26	W10854470		Adapter Ring 6`` (2)   (Replaces: 306785)				$ 81.37
26	W10858781		Adapter Ring 8`` (2)   (Replaces: 306786)				$ 85.64
27	W10291024		Reflector Pan 6`` (2)   (Replaces: 306789)			Immediately	$ 49.90
27	W10291024		Reflector Pan (8`` (2))   (Replaces: 306790)			Immediately	$ 49.90
28	WPY04100165		Unit, Surface (240v) (6`` (2))   (Replaces: 312557)			Immediately	$ 50.62
28	WP660533		Unit, Surface (240v) (8`` (2) Unit, Surface (208v))   (Replaces: 312560)			Immediately	$ 39.47
28	WPY04100165		Unit, Surface (240v) (6`` (2))   (Replaces: 306667)			Immediately	$ 50.62
28	326789		Unit, Surface (240v) (8`` (2) (includes Illus. 29))				$ 129.16
29	256904		Medallion		Appelez-nous	-
31	312320		Shield, Insulation		Appelez-nous	-
31	307748		Screw, 10a X 1/2		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
