Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP681414 Screw, 10-16 X 1/2 (2)   (Replaces: 343641) In-Stock Immediately $ 7.07

1 3171148 Latch Assembly (pyro) Appelez-nous -
2 308185 Safety Switch Appelez-nous -
2 98106 Screw (2) Appelez-nous -
3 309245 Insulator, Switch Appelez-nous -
4 313035 Shield, Latch Terminal Appelez-nous -
4 309258 Screw, 6 X 3/8b (2) Appelez-nous -
4 WP313808 Screw, 6-32 X 1/4 (2)   (Replaces: 311932) Special Order $ 6.84

5 308422 Screw, 10-24 X 1/2 (2) Appelez-nous -
5 WP488627 Screw, 8-18 X 1/2   (Replaces: 313349) Special Order $ 6.81

5 311056 Screw (2) Appelez-nous -
5 3147065 Handle, Latch Appelez-nous -
6 3148684 Knob, Latch Appelez-nous -
7 3149194 Box, Burner Appelez-nous -
7 WP3390631 Screw, 10a X 3/8 (4)   (Replaces: 309112) Special Order $ 7.04

8 307973 Shield, Wiring Appelez-nous -
8 WP681414 Screw, 10-16 X 1/2 (2)   (Replaces: 343641) In-Stock Immediately $ 7.07

9 3148659 Rod, Cooktop Appelez-nous -
11 307965 Bracket (2) Appelez-nous -
11 WP681414 Screw, 10-16 X 1/2 (4)   (Replaces: 343641) In-Stock Immediately $ 7.07

13 3170981 Cooktop (white) Appelez-nous -
13 307871 Cooktop (almond 10-32 X 1/2) Appelez-nous -
15 WP965173 Screw, 8a X 3/8   (Replaces: 246132) In-Stock Immediately $ 9.65

15 WP308605 Strain Relief   (Replaces: 308604) Special Order $ 10.08

16 WP313808 Screw, 6-32 X 1/4 (4)   (Replaces: 313808) Special Order $ 6.84

16 330031 Receptacle, Clip (4)   (Replaces: 312606) In-Stock Immediately $ 14.48

17 W10858781 Adapter Ring (8`` (2))   (Replaces: 3148354) Special Order $ 85.64

17 W10854470 Adapter Ring (6`` (2))   (Replaces: 3148353) Special Order $ 81.37

18 W10291024 Reflector Pan (8`` (2))   (Replaces: 3148407) In-Stock Immediately $ 49.90

18 W10291024 Reflector Pan (6`` (2))   (Replaces: 3148406) In-Stock Immediately $ 49.90

19 WP660532 Unit, Surface 6`` (240v) (2) (alt.)   (Replaces: 313967) In-Stock Immediately $ 36.90

19 WP660532 Unit, Surface 6`` (240v) (2)   (Replaces: 660529) In-Stock Immediately $ 36.90

19 WP660532 Unit, Surface 6`` (240v) (2) (alt.)   (Replaces: 309192) In-Stock Immediately $ 36.90

20 309195 Medallion (4) Appelez-nous -
22 307748 Screw, 10a X 1/2 Appelez-nous -
22 312320 Shield, Insulation Appelez-nous -
23 313570 Clamp, Tube Appelez-nous -
24 814103 Clip, Hold Down (4)   (Replaces: 3148790) Special Order $ 9.02

25 814103 Rivet (4)   (Replaces: 3148789) Special Order $ 9.02

26 3148669 Switch, Safety Appelez-nous -
27 3147864 Insulator, Switch Appelez-nous -
WP660533 Unit, Surface 8`` (240v) (2)   (Replaces: 660533) In-Stock Immediately $ 39.47

WP660533 (alt.)   (Replaces: 313963) In-Stock Immediately $ 39.47

WP660533 (alt.)   (Replaces: 309340) In-Stock Immediately $ 39.47

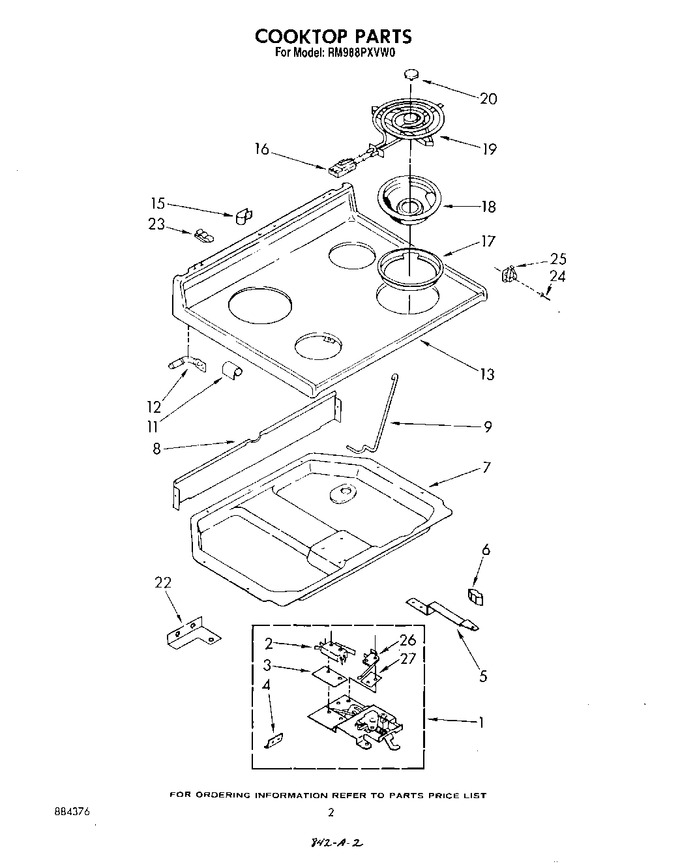

    View Diagram in Separate Window     Print Icon   Print Part List
