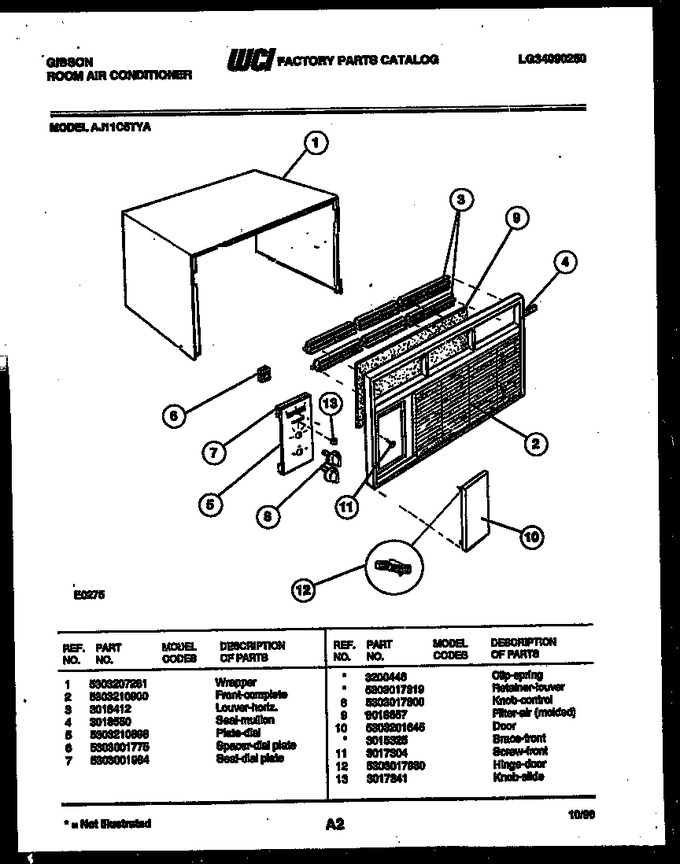

02 - Cabinet Parts
03 - Electrical Parts
04 - Air Handling Parts
05 - Compressor Parts
06 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303207281 | Wrapper |
|
- | |||||
| 2 | 5303210900 | Front-complete |
|
- | |||||
| 3 | 3018412 | Louver-horiz |
|
- | |||||
| 4 | 3018550 | Seal-mullion |
|
- | |||||
| 5 | 5303210898 | Plate-dial |
|
- | |||||
| 6 | 5303001775 | Spacer - Dial Plate |
|
- | |||||
| 7 | 5303001984 | Seal - Dial Plate |
|
- | |||||
| 8 | 5303017300 | Knob-control |
|
- | |||||
| 9 | 3018657 | Filter-air (molded) |
|
- | |||||
| 10 | 5303201645 | Door |
|
- | |||||
| 11 | 3017304 | Screw-front |
|
- | |||||
| 12 | 5303017980 | Hinge - Door |
|
- | |||||
| 13 | 3017341 | Knob-slide |
|
- | |||||
| 10A | 3015325 | Brace - Front (non-illustrated) |
|
- | |||||
| 7A | 3200446 | Clip - Spring (non-illustrated) |
|
- | |||||
| 7B | 5303017319 | Retainer-louver (non-illustrated) |
|
- |
