Diagram # Part Number Description Series Availability Ships Price Add to Cart
4 3147556 Wire Harness (vent Motor) Appelez-nous -
6 3147567 Wire Harness (rocker Switch) Appelez-nous -
8 3147559 Wiring Harness Control (microwave) Appelez-nous -
9 3147554 Wiring Harness Main (microwave) Appelez-nous -
10 16515 Clip   (Replaces: 313438) Special Order $ 17.60

11 3147832 Terminal, Adapter Appelez-nous -
12 308609 Strain, Relief Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

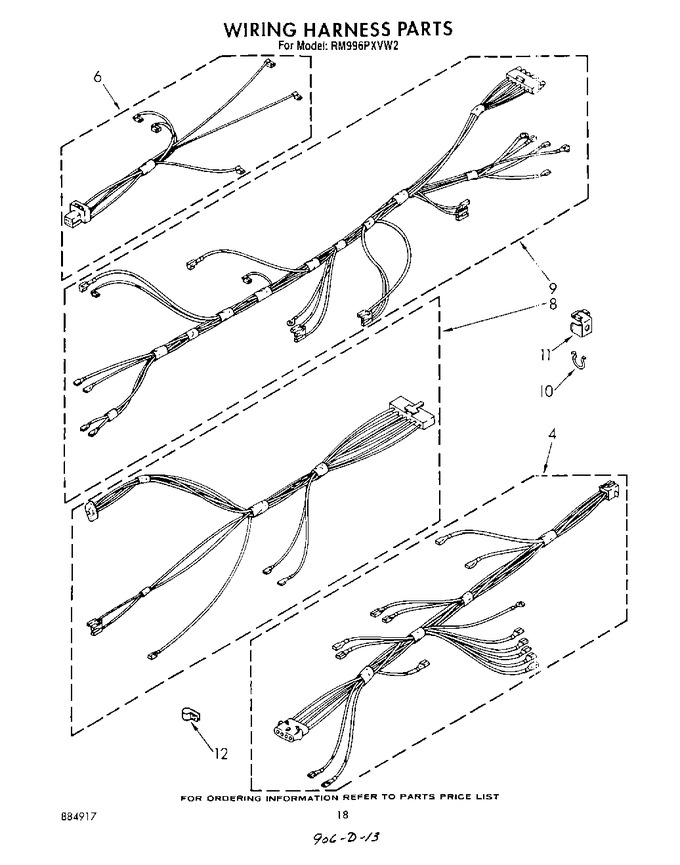

Diagram for RM996PXVW2
