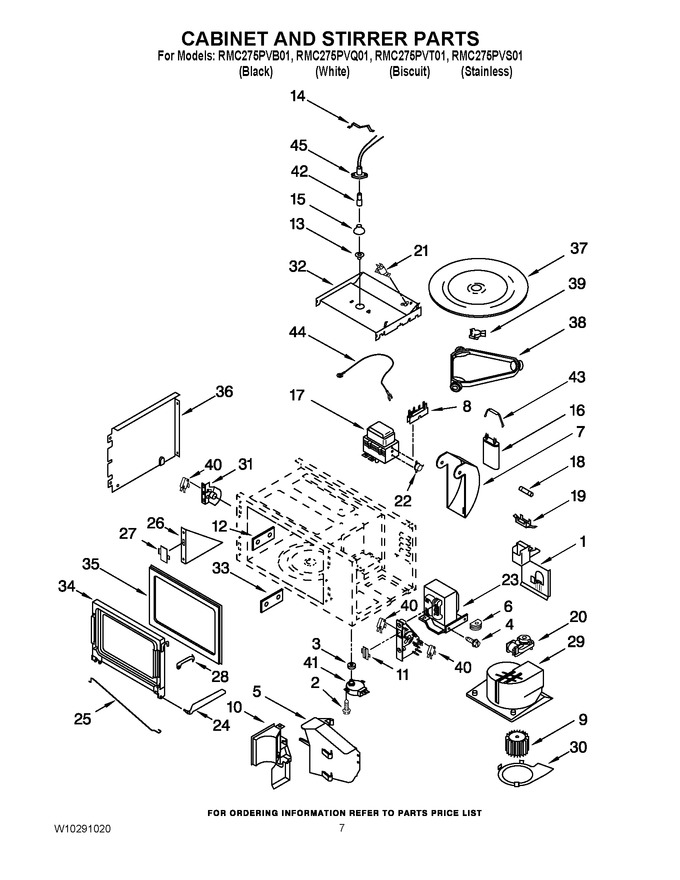

Diagram for 06 - Cabinet And Stirrer Parts
06 - Cabinet And Stirrer Parts

Diagram for 07 - Microwave Compartment Parts
07 - Microwave Compartment Parts

Diagram for 08 - Microwave Door Parts
08 - Microwave Door Parts

Diagram for 09 - Top Venting Parts
09 - Top Venting Parts

Diagram for 10 - Optional Parts (not Included)
10 - Optional Parts (not Included)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4375299 Bracket, Capacitor Appelez-nous -
2 8206180 Screw, M4 X 10mm   (Replaces: 4375035) Special Order $ 11.55

3 4375037 Rubber Ring Appelez-nous -
4 4375038 Screw Appelez-nous -
5 4375314 Air Duct, Magnetron Appelez-nous -
6 4375315 Damper Appelez-nous -
7 4375260 Duct, Inlet Appelez-nous -
8 4375316 Insulation, Switch Appelez-nous -
9 4375322 Fan Wheel Special Order $ 38.29

10 4375317 Duct, Air Appelez-nous -
11 4375264 Block, Side Appelez-nous -
12 4375248 Cover Plate, Upper Appelez-nous -
13 W11193483 Lens, Lamp   (Replaces: 4375318) In-Stock Immediately $ 89.85

14 W10465869 Spring   (Replaces: 4375319) In-Stock Immediately $ 88.94

15 423107022541 Reflector   (Replaces: 4375320) Special Order $ 73.63

16 W10850446 Capacitor   (Replaces: W10250576) Special Order $ 167.89

17 W10245183 Magnetron   (Replaces: 4375072) In-Stock Immediately $ 220.91

18 WP4375321 Fuse   (Replaces: 4375321) In-Stock Immediately $ 16.45

19 W10245194 Block, Fuse   (Replaces: 4375231) Special Order $ 74.84

20 8186527 Motor, Blower Appelez-nous -
21 8205652 Thermostat Special Order $ 29.96

22 W11233913 Thermostat   (Replaces: W10250580) In-Stock Immediately $ 133.79

23 WP4375286 Transformer   (Replaces: 4375286) Special Order $ 296.24

24 WP4375324 Hinge, Door (right)   (Replaces: 4375324) Special Order $ 79.40

24 WP4375323 Hinge, Door (left)   (Replaces: 4375323) Special Order $ 79.70

25 WP4452395 Torsion Spring (left Hand)   (Replaces: 4452395) In-Stock Immediately $ 125.26

25 WP4451008 Torsion Spring (right Hand)   (Replaces: 4451008) Special Order $ 114.84

26 4375327 Bracket, Hinge (left) Special Order $ 39.14

26 4375328 Bracket, Hinge (right) Appelez-nous -
27 4375329 Inlet Appelez-nous -
28 4375330 Door Strap Appelez-nous -
29 4375333 Fan Cap Appelez-nous -
30 4375334 Fan Cap Bottom Appelez-nous -
31 W10727408 Switch Holder (right)   (Replaces: 4375336) In-Stock Immediately $ 218.06

31 W10727408 Switch Holder (left)   (Replaces: 4375335) In-Stock Immediately $ 218.06

32 4375337 Isolation Plate Appelez-nous -
33 4375338 Cover Plate Special Order $ 38.98

34 4375339 Door, Plate Appelez-nous -
35 4375340 Inner Frame Special Order $ 62.72

36 4375341 Side Plate (left) Appelez-nous -
36 4375342 Side Plate (right) Appelez-nous -
37 W11373838 Turntable   (Replaces: 4455915) In-Stock Immediately $ 70.65

38 4375344 Ring Assembly Appelez-nous -
39 WP8183788 Shaft   (Replaces: 8183788) Special Order $ 24.08

40 W10211972 Switch   (Replaces: 4375346) In-Stock Immediately $ 47.16

41 W10642989 Motor, Turntable   (Replaces: 4375347) In-Stock Immediately $ 171.39

42 WPW10440740 Lamp   (Replaces: 4375348) In-Stock Immediately $ 33.20

43 WPW10687786 Rectifier   (Replaces: 4375349) In-Stock Immediately $ 27.30

44 4375350 Cable Appelez-nous -
45 4375351 Lamp Holder Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List
