01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Latch Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Microwave Compartment Parts


08 - Microwave Door Parts


09 - Top Venting Parts


10 - Optional Parts (not Included)

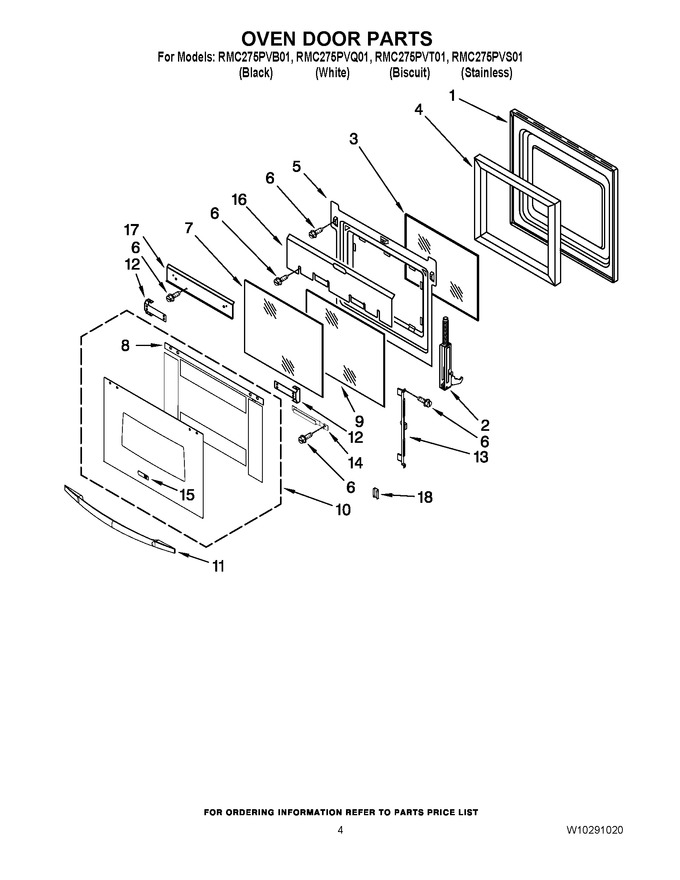

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8303699		Panel, Door				$ 128.78
2	WP9760575		Hinge, Door, (stainless Only (right))   (Replaces: 9760575)			Immediately	$ 58.11
2	WP9760572		Hinge, Door (left)   (Replaces: 9760572)				$ 95.97
2	WP9760571		Hinge, Door (right)   (Replaces: 9760571)			Immediately	$ 98.15
2	WP9760576		Hinge, Door, (stainless Only (left))   (Replaces: 9760576)			Immediately	$ 50.81
3	WP4449253		Glass, Inner   (Replaces: 4449253)				$ 151.75
4	4451721		Insulation, Door				$ 37.62
5	4457131		Retainer, Glass				$ 31.95
6	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
7	9759224		Glass, Inner				$ 81.28
8	4452325		Seal, Glass				$ 32.70
9	9759227		Glass, Inner Door				$ 81.36
10	W10200757		Assembly, Door Glass (black)				$ 124.66
10	W10176987		Assembly, Door Glass (stainless)				$ 184.73
10	W10200760		Assembly, Door Glass (biscuit)		Appelez-nous	-
10	W10200758		Assembly, Door Glass (white)		Appelez-nous	-
11	W10169802		Handle, Door (black)				$ 106.52
11	W10169804		Handle, Door (white)				$ 71.46
11	W10169806		Handle, Door (biscuit)		Appelez-nous	-
11	WPW10169800		Handle, Door (stainless)   (Replaces: W10169800)				$ 166.20
12	4455803		Bracket, Handle (right)				$ 30.70
12	4455804		Bracket, Handle (left)				$ 25.95
13	WP9759229		Bracket(2nd Glass)   (Replaces: 9759229)				$ 160.71
14	9759230		Bracket(3rd Glass)				$ 36.30
15	W10175320		Name Plate				$ 41.71
16	4457102		Shield, Top Heat				$ 31.70
17	4457113		Shield, Heat (bottom)				$ 33.29
18	W10158497		Retainer, Door Glass				$ 5.65
