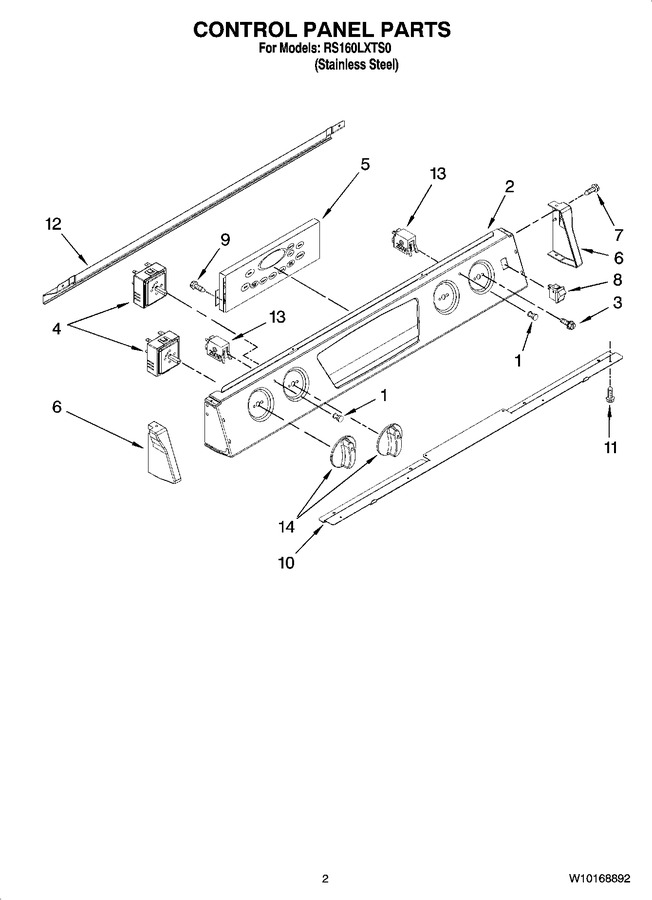

02 - Control Panel Parts
03 - Chassis Parts
04 - Door And Rack Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7730P011-60 | Lens (Replaces: 7730P011-60) |
|
$ 5.16 | |||||
| 2 | W10165801 | Panel, Control |
|
- | |||||
| 3 | WP7101P309-60 | Screw, Switch (10) (Replaces: 7101P309-60) |
|
Immediately | $ 6.26 | ||||
| 4 | WP7403P239-60 | Switch, Infinte 8`` (rf/lr)(2) (Replaces: 7403P239-60) |
|
Immediately | $ 35.10 | ||||
| 4 | WP7403P238-60 | Switch, Infinte 6`` (lf/rr)(2) (Replaces: 7403P238-60) |
|
Immediately | $ 57.78 | ||||
| 5 | W10769823 | Control W/overlay (Replaces: W10169865) |
|
Immediately | $ 253.24 | ||||
| 6 | 74010834 | End Cap (right Black) |
|
- | |||||
| 6 | 74010835 | End Cap (left Black) |
|
- | |||||
| 7 | 74009527 | Screw, End Cap |
|
- | |||||
| 8 | 74008718 | Switch, Rocker |
|
$ 50.46 | |||||
| 9 | WP59002061 | Screw, Control (Replaces: 74004288) |
|
$ 6.98 | |||||
| 10 | 74004785 | Support, Control Panel |
|
- | |||||
| 11 | W11233072 | Screw, Support (4) (Replaces: 7101P338-60) |
|
Immediately | $ 12.62 | ||||
| 12 | 74001337 | Shield, Heat |
|
- | |||||
| 13 | WP74004153 | Light, Indicator (Replaces: 74004153) |
|
Immediately | $ 8.02 | ||||
| 14 | 74003612 | Knob (4) |
|
$ 16.42 |
