01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts

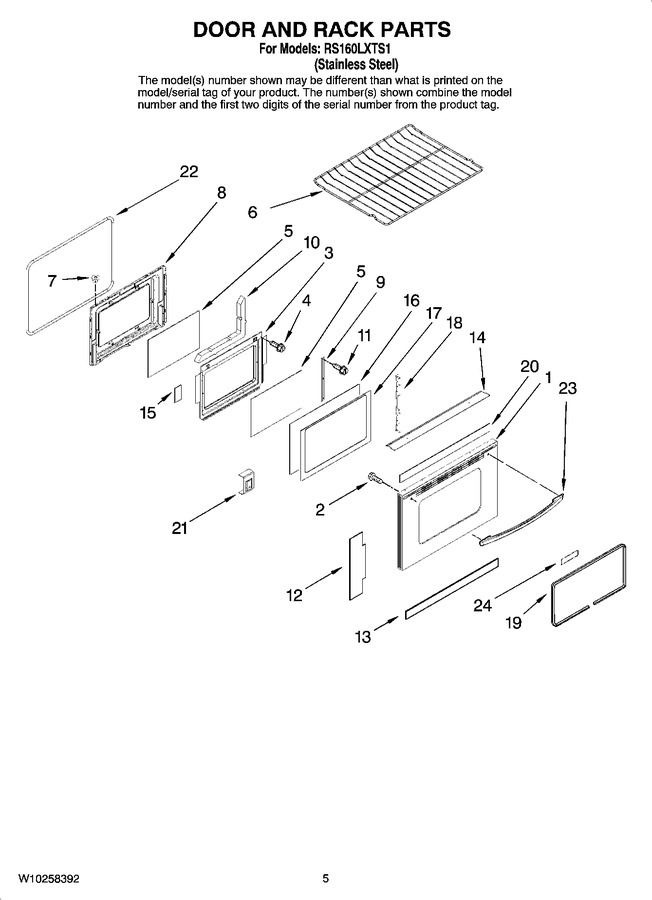

04 - Door And Rack Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10168887 | Panel, Door (ss) |
|
- | |||||
| 2 | WP74006515 | Screw, Handle (2) (Replaces: 74006635) |
|
$ 7.29 | |||||
| 3 | 3601F373-51 | Baffle, Retainer (Replaces: 74011457) |
|
$ 244.22 | |||||
| 4 | W11233072 | Screw, (8ab 1/2) (Replaces: 74001530) |
|
Immediately | $ 12.62 | ||||
| 5 | 74003645 | Glass, Inner (2) |
|
Immediately | $ 162.53 | ||||
| 6 | WPW10282492 | Rack, Oven (2) (Replaces: 7801P054-60) |
|
Immediately | $ 65.15 | ||||
| 7 | WP74001574 | Nut, Snap (4) (Replaces: 74001574) |
|
Immediately | $ 9.91 | ||||
| 8 | 74011456 | Lining, Door |
|
- | |||||
| 9 | 74011458 | Bracket, Glass (2) |
|
- | |||||
| 10 | 74003647 | Insulation, Door |
|
- | |||||
| 11 | WP90767 | Screw (Replaces: Y700502) |
|
Immediately | $ 7.04 | ||||
| 12 | 74011048 | Insulation, Foil |
|
$ 71.73 | |||||
| 13 | WP74010043 | Insulation, Door (Replaces: 74010043) |
|
$ 67.18 | |||||
| 14 | 74011049 | Shield, Door |
|
- | |||||
| 15 | WP74004224 | Tape, White (Replaces: 74004224) |
|
$ 10.53 | |||||
| 16 | 74010231 | Glass, Coated |
|
- | |||||
| 17 | 74003649 | Glass, Clear |
|
- | |||||
| 18 | 74011050 | Retainer, Glass |
|
- | |||||
| 19 | WP74009029 | Gasket, Window (Replaces: 74009029) |
|
Immediately | $ 145.22 | ||||
| 20 | W10168886 | Tape, Protective |
|
- | |||||
| 21 | 7112P034-60 | Clip, Glass (2) |
|
- | |||||
| 22 | WPW10162384 | Seal, Door (Replaces: 7201P046-60) |
|
Immediately | $ 77.61 | ||||
| 23 | 74008318 | Handle, Door |
|
- | |||||
| 24 | 8303811 | Nameplate, Logo |
|
$ 29.09 | |||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 5171P556-60 | Harness, Wire (coil Rt) (Replaces: 74010891) |
|
$ 16.59 | ||||||
| 74010890 | Harness, Wire (sensor) |
|
$ 34.51 | ||||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 3191048 | Cleaner, Glass |
|
- | ||||||
| 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) (Replaces: 206922) |
|
$ 80.69 | ||||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
Immediately | $ 51.34 | |||||
| 261582 | Grease |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| 511873 | Paint, Touch-up (1/2oz.) (white (porcelain (2 Oz.)) |
|
$ 44.36 | ||||||
| 4392899 | Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 23.81 | |||||
| WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 49.92 | |||||
| WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 49.92 | |||||
| 8212471 | Touch-up Self-clean(1/2 Pt) (Replaces: 242756) |
|
Immediately | $ 74.76 | |||||
| WP4159193 | Screw, Ground (Replaces: 7101P027-60) |
|
$ 4.29 | ||||||
| 8019P013-60 | Clip, Wire (Replaces: 74006811) |
|
$ 13.46 | ||||||
| 5700P822-60 | Cable, Assy.(flex) (Replaces: 74011206) |
|
- | ||||||
| 74010893 | Harness, Wire (coil Top) |
|
- | ||||||
| W10166773 | Harness, Wire (main) |
|
- | ||||||
| 74010892 | Harness, Wire (coil Lt) |
|
- |
