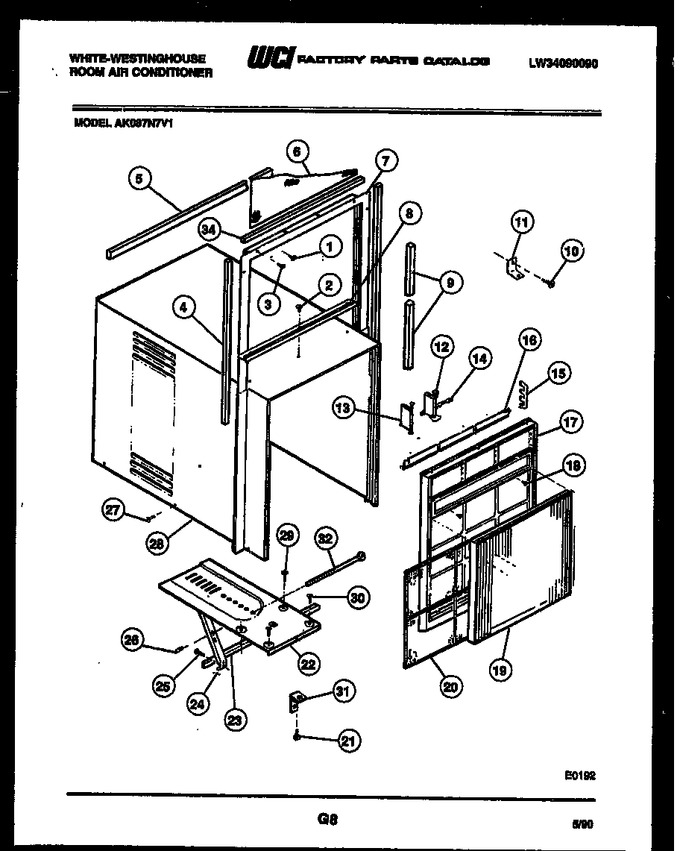

SELECT A DIAGRAM

02 - Cabinet Parts


03 - Electrical And Air Handling Parts


04 - System Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308013771		Screw		Appelez-nous	-
2	5303209556		Screw		Appelez-nous	-
3	5308047558		Screw		Appelez-nous	-
4	08047441		Seal		Appelez-nous	-
5	G149187-03		Seal		Appelez-nous	-
6	5308047516		Panel-window		Appelez-nous	-
7	5303211024		Frame-expando		Appelez-nous	-
8	3211021		Retainer-window Pnl		Appelez-nous	-
9	G147883-02		Seal-side Channels		Appelez-nous	-
10	G102488		Screw		Appelez-nous	-
11	G500741		Bracket-window Stop		Appelez-nous	-
12	08047481		Louver-vertical Direct (2)		Appelez-nous	-
13	08047480		Louver-vertical		Appelez-nous	-
14	5308047513		Link-vertical Louver		Appelez-nous	-
15	5300507908		Link-horiz Louver		Appelez-nous	-
16	08047492		Louver-horiz Defl (2)		Appelez-nous	-
17	08047496		Panel-front		Appelez-nous	-
18	5303209502		Screw-front		Appelez-nous	-
19	A000483906		Panel-air Intake		Appelez-nous	-
20	G160201		Filter, Air		Appelez-nous	-
21	5300507693		Screw-mtg Plate		Appelez-nous	-
22	3211023		Plate-mtg		Appelez-nous	-
23	5308047524		Seal		Appelez-nous	-
24	3211022		Bracket Support		Appelez-nous	-
25	5308013771		Screw		Appelez-nous	-
26	A000516543		Nut-bracket		Appelez-nous	-
27	G521208		Screw		Appelez-nous	-
28	08047493		Shell		Appelez-nous	-
29	5300125233		Screw		Appelez-nous	-
30	5300507212		Screw		Appelez-nous	-
31	5303001853		Bracket-safety		Appelez-nous	-
32	5308047562		Screw		Appelez-nous	-
*29747	08047416		Grille		Appelez-nous	-
*29747	3017543		Channel - Expando		Appelez-nous	-
*29747	5308010914		Clip-front Base (2)		Appelez-nous	-
