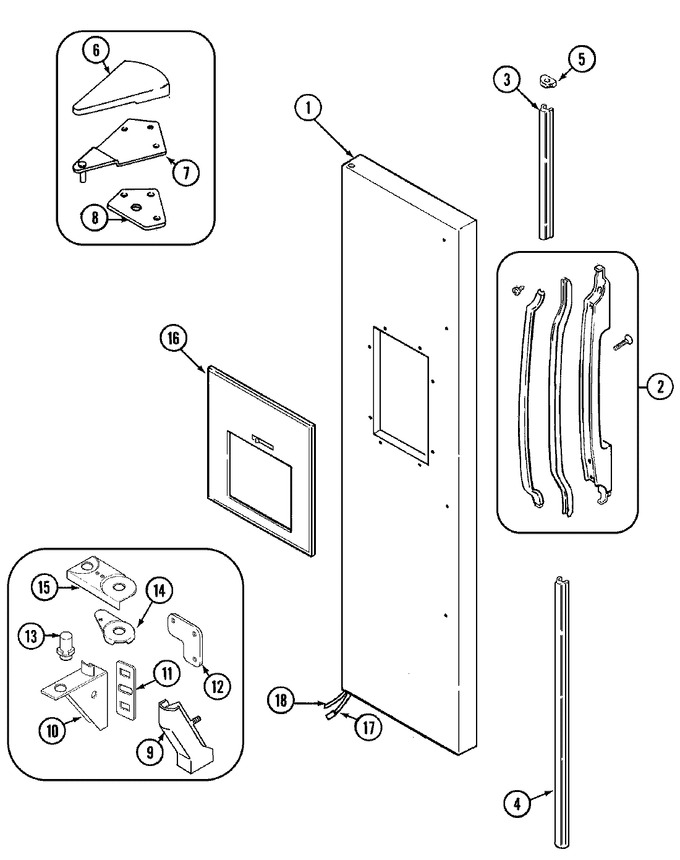

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	495034-900		Plug Button, Door	10	Appelez-nous	-
1	61001393		Panel, Frz. Door (wht)	10	Appelez-nous	-
2	W10856122		Screw   (Replaces: 61001287)	10			$ 6.98
2	12000039		Kit, Handle Assy. (wht)	10	Appelez-nous	-
3	69586-3		Trim, Handle Ext. (upper)	10	Appelez-nous	-
4	69586-4		Trim, Handle Ext. (lower)	10	Appelez-nous	-
5	69590-1		End Cap, Handle	10	Appelez-nous	-
6	61001317		Cover, Upper Hinge (wht)	10	Appelez-nous	-
7	WP3-24838-048		Screw, Upper Hinge   (Replaces: 65275-86)	10			$ 7.00
7	61001319		Hinge, Upper	10	Appelez-nous	-
8	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
9	61001609		Cover, Hinge (blk)	10	Appelez-nous	-
9	65275-47		Screw, Hinge Cover (black)	10	Appelez-nous	-
10	61001321		Hinge, Lower	10	Appelez-nous	-
10	65275-46		Screw	10	Appelez-nous	-
11	69510-1		Shim, Lower Hinge	10	Appelez-nous	-
12	65275-59		Screw	10	Appelez-nous	-
12	67874-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
13	61001329		Pin, Lower Hinge	10	Appelez-nous	-
14	61001337		Bushing, Lower Hinge----na	10	Appelez-nous	-
15	W10856122		Screw   (Replaces: 65275-80)	10			$ 6.98
15	61001316		Stop, Door	10	Appelez-nous	-
16	61002007		Escutcheon (wht)	10	Appelez-nous	-
17	69804-1		Wire Harness, Door	10	Appelez-nous	-
18	WPW10426709		Tubing, Coil To Fountain   (Replaces: 67187-29)	10			$ 126.83
