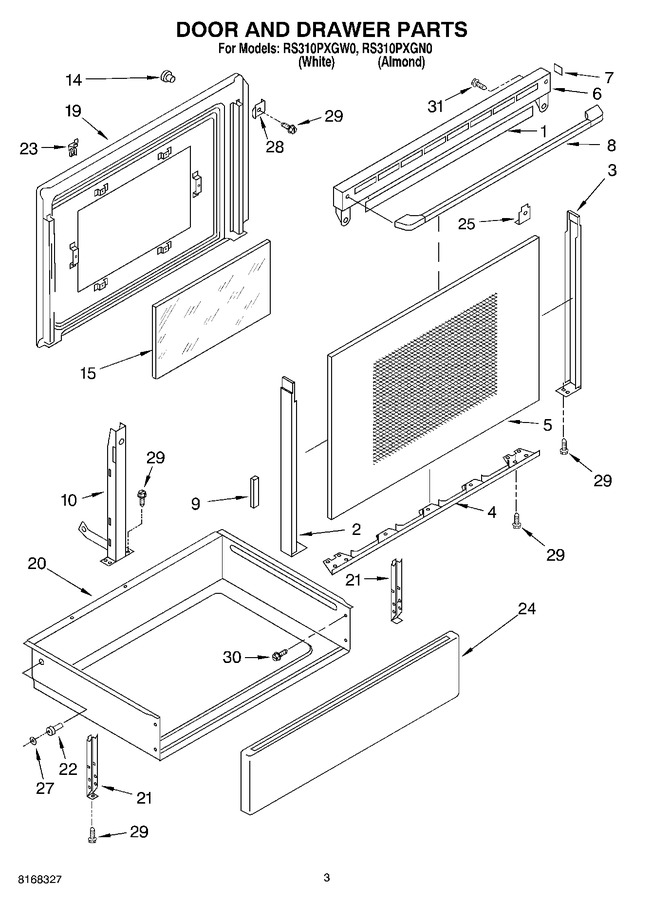

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9781659		Gasket, Door Vent		Appelez-nous	-
2	9782003PB		Trim, Door-left		Appelez-nous	-
3	9782004PB		Trim, Door-right		Appelez-nous	-
4	9781209PB		Trim, Door Bottom		Appelez-nous	-
5	9781718PB		Glass, Door Front		Appelez-nous	-
6	9753498GB		Vent, Door		Appelez-nous	-
7	9781490		Seal, Door		Appelez-nous	-
8	9752701PB		Handle, Door		Appelez-nous	-
9	9781449		Gasket, Door Glass		Appelez-nous	-
10	9782032		Hinge, Door R Or L		Appelez-nous	-
14	238614		Bumper, Door   (Replaces: 9780771)				$ 72.68
15	9781651		Glass, Pyro		Appelez-nous	-
19	9781599GM		Liner, Door		Appelez-nous	-
20	9780583		Drawer & Roller		Appelez-nous	-
21	9750169		Bracket, Drawer		Appelez-nous	-
22	814229		Roller, Drawer   (Replaces: 422604)			Immediately	$ 51.23
23	9750676		Retainer, Door		Appelez-nous	-
24	9782108PW		Front, Drawer (white)		Appelez-nous	-
24	9782108PT		Front, Drawer (almond)		Appelez-nous	-
25	9781613		Retainer, Glass		Appelez-nous	-
27	WP90296		Clip   (Replaces: 90296)				$ 7.07
28	9781502		Spacer, Door		Appelez-nous	-
29	9780265		Screw		Appelez-nous	-
30	9780272		Screw		Appelez-nous	-
31	WPW10001180		Screw   (Replaces: 9781072)				$ 7.23
