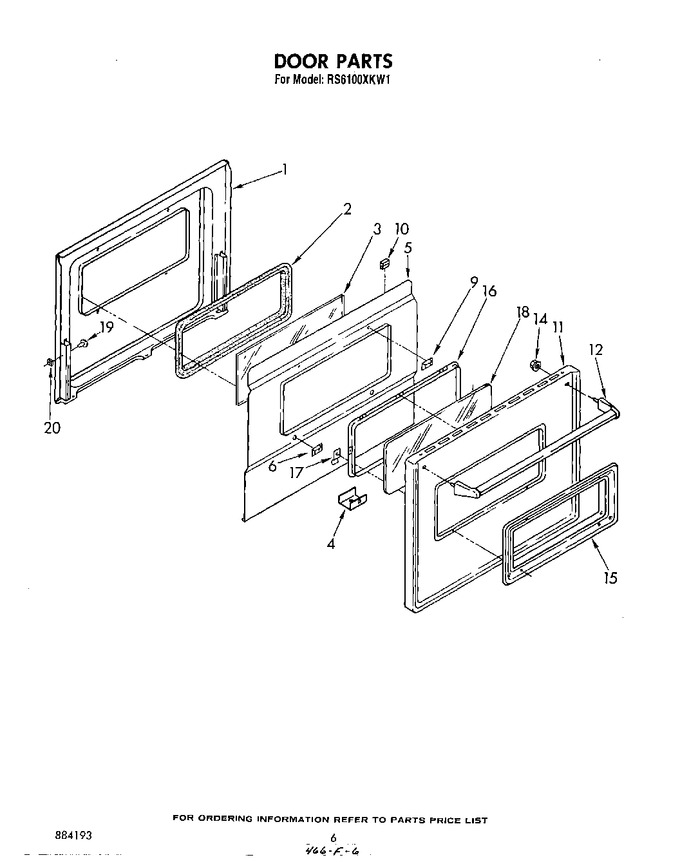

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP488627 | Screw, 8a X 1/2 (2) (Replaces: 338156) |
|
$ 6.81 | |||||
| 1 | 307748 | Screw, 10a X 3/8 (3) |
|
- | |||||
| 1 | 329687 | Liner, Door |
|
- | |||||
| 1 | 311056 | Screw, (4) |
|
- | |||||
| 2 | 258711 | Seal, Pano Glass |
|
- | |||||
| 3 | 258988 | Glass, Inner 30`` |
|
- | |||||
| 4 | 307748 | Screw, 10a X 1/2 (2) |
|
- | |||||
| 4 | 309137 | Spacer, Door (2) |
|
- | |||||
| 5 | 307924 | Baffle |
|
- | |||||
| 6 | 307748 | Screw, 10a X 1/2 (2) |
|
- | |||||
| 6 | 258990 | Spacer, Baffle (2) |
|
- | |||||
| 9 | 258990 | Spacer, Baffle (2) |
|
- | |||||
| 9 | WP308685 | Screw, 10a X 1/2 (2) (Replaces: 253549) |
|
Immediately | $ 7.08 | ||||
| 10 | 312783 | Bumper, Rubber |
|
- | |||||
| 11 | 307888 | Panel (white) |
|
- | |||||
| 11 | 309133 | Panel (screw, 8a X 5/8) |
|
- | |||||
| 11 | 313176 | Panel (platinum) |
|
- | |||||
| 11 | 313175 | Panel (toast) |
|
- | |||||
| 11 | 307896 | Panel (almond) |
|
- | |||||
| 11 | 307894 | Panel (harvest Gold) |
|
- | |||||
| 12 | 311564 | Handle, Door |
|
- | |||||
| 14 | WP308499 | Palnut, Handle (2) (Replaces: 308499) |
|
$ 6.26 | |||||
| 15 | 309173 | Window Frame 30`` |
|
- | |||||
| 16 | 307792 | Glass Retainer 30`` |
|
- | |||||
| 17 | 307731 | Clip, Frame |
|
- | |||||
| 18 | 307732 | Glass, Outer 30`` |
|
- | |||||
| 18 | 313045 | Screw, 7-19 X 3/8 (8) |
|
- | |||||
| 19 | 312223 | Pin, Wedge |
|
- | |||||
| 20 | 261582 | Grease |
|
- | |||||
| 20 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | |||||
| 20 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 20 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | |||||
| 20 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 20 | 261810 | Touch-up, Oven (1/2 Pt.) |
|
- | |||||
| 20 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 20 | WPW10208653 | Insulation, Fiberglass (1-1/2`` X 24`` X 120``) (Replaces: 261514) |
|
Immediately | $ 49.92 | ||||
| 20 | WPW10208653 | Insulation, Fiberglass (2-1/2`` X 22`` X 120``) (Replaces: 240132) |
|
Immediately | $ 49.92 | ||||
| 20 | 241430 | Foil, Aluminum Oven (18`` X 25`) |
|
$ 20.65 | |||||
| 20 | 261825 | Console |
|
- | |||||
| 20 | 242985 | Rotisserie Kit |
|
- | |||||
| 20 | 311896 | Pushnut |
|
- | |||||
| 20 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 20 | 242821 | Wire (14 Ga. 150 C Blue) |
|
- | |||||
| 20 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 20 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 20 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 20 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 20 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 20 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 20 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 20 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 20 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 20 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 20 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 54.25 | |||||
| 20 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 98.33 | |||||
| 20 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 20 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 20 | DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 105.40 | |||||
| 20 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | ||||
| 20 | 261888 | New Avocado |
|
- | |||||
| 20 | 261886 | Coffee |
|
- | |||||
| 20 | 261890 | Harvest Gold |
|
- | |||||
| 20 | 285365 | Toast |
|
- | |||||
| 20 | 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | |||||
| 20 | 285006 | Paint, Spray 13 Oz. (black) |
|
Immediately | $ 51.34 | ||||
| 20 | 350942 | Primer (white) (Replaces: 206922) |
|
$ 80.69 | |||||
| 20 | 206925 | Leveler (thinner) (2oz.) |
|
- | |||||
| 20 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 20 | 978883 | Almond (uncut) |
|
- | |||||
| 20 | 261889 | New Avocado (uncut) |
|
- | |||||
| 20 | 261887 | Coffee (uncut) |
|
- | |||||
| 20 | 261891 | Harvest Gold (uncut) |
|
- | |||||
| 20 | 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | |||||
| 20 | 285368 | Platinum (uncut) |
|
- | |||||
| LIT313358 | Book, Cooking Guide |
|
- | ||||||
| LIT311409 | Guide, Use & Care |
|
- | ||||||
| LIT311433 | Instructions, Installation |
|
- | ||||||
| 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 | ||||||
| LIT884193 | List, Repair Parts |
|
- |
