Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3176677 Frame, Front Appelez-nous -
2 307985 Pin, Hinge Ear (2) Special Order $ 29.54

3 309111 Snubber, Door (2) Appelez-nous -
4 308306 Pushnut (2) Appelez-nous -
5 310770 Insulation Tray Appelez-nous -
6 311009 Side Wrapper (left Side) Appelez-nous -
6 WP488729 Side Wrapper (screw, 8 X 1/2 (14))   (Replaces: 3148107) In-Stock Immediately $ 7.01

6 311006 Side Wrapper (right Side) Appelez-nous -
7 311774 Support, Side Wrapper (4) Appelez-nous -
7 WP488729 Screw, 8 X 1/2 (4)   (Replaces: 3148107) In-Stock Immediately $ 7.01

8 3183796 Baffle, Top Insulation Appelez-nous -
8 WP488729 Screw, 8 X 1/2 (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

9 WP488729 Screw, 8 X 1/2 (8)   (Replaces: 3148107) In-Stock Immediately $ 7.01

9 310689 Side Trim L.s. Appelez-nous -
9 310685 Side Trim R.s. Appelez-nous -
10 311056 Screw (3) Appelez-nous -
10 3182032 Oven, 30`` Standard Appelez-nous -
11 309107 Heat Seal Special Order $ 63.50

12 WP489069 Screw (4)   (Replaces: 693994) In-Stock Immediately $ 7.07

12 WP681414 Screw (6)   (Replaces: 343641) In-Stock Immediately $ 7.07

12 WP488729 Screw (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

12 310713 Bracket, Oven Mounting (2) Appelez-nous -
13 3182814 Button, Plug Appelez-nous -
14 98005642 Clip, Therm Bulb (2)   (Replaces: 313382) In-Stock Immediately $ 74.64

15 3185662 Hinge, Ear (right Side) Appelez-nous -
15 3185663 Hinge, Ear (left Side) Appelez-nous -
16 310659 Plate, Side Panel (2) Appelez-nous -
16 WP308544 Screw, 10-24 X 1/2 (4)   (Replaces: 308544) In-Stock Immediately $ 6.98

17 3185665 Channel, Arm (2) Appelez-nous -
18 WP307986 Pin, Hinge (2)   (Replaces: 307986) Special Order $ 11.78

19 307594 Retainer Ring (2) Appelez-nous -
20 311092 Spring, Door Stop (2) Appelez-nous -
21 WP308125 Anchor, Spring (2)   (Replaces: 311897) Special Order $ 10.94

22 308127 Spring, Oven Door (2) Special Order $ 11.75

23 310835 Extension, Vent Appelez-nous -
24 310840 Eliminator, Smoke Appelez-nous -
24 WP488729 Screw, 8-18 X 1/2 (2)   (Replaces: 313638) In-Stock Immediately $ 7.01

24 WP681414 Screw,10-16 X 1/2   (Replaces: 343641) In-Stock Immediately $ 7.07

24 WP488729 Screw (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

25 WP488729 Screw (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

25 310662 Plate, Cover Appelez-nous -
26 WP308180 Unit, Bake   (Replaces: 661170) Special Order $ 96.92

27 WP660579 Unit, Broil   (Replaces: 660579) Special Order $ 140.80

27 3150532 Screw (4) Appelez-nous -
28 W11594027 Oven Light Assy.   (Replaces: 3150505) In-Stock Immediately $ 78.31

29 8009 Bulb, Oven Light   (Replaces: 311255) In-Stock Immediately $ 16.80

30 310345 Switch, Door Special Order $ 94.86

30 WP488729 Screw (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

31 3169107 Plug, Oven Appelez-nous -
32 308043 Screw (2) Appelez-nous -
32 WP112432 Nut, (3)   (Replaces: 112432) Special Order $ 7.16

32 WP8203546 Terminal Block   (Replaces: 258076) In-Stock Immediately $ 27.12

33 310458 Cover, Bottom & Top Appelez-nous -
35 309029 Screw, Black 8-15 X 1/2 (3) Appelez-nous -
35 310668 Grill, Bottom Special Order $ 556.11

36 4396923 Pan, Broiler   (Replaces: 3147845) In-Stock Immediately $ 52.04

37 4396923 Grill, Broiler Pan   (Replaces: 3147563) In-Stock Immediately $ 52.04

38 308173 Rack, Oven (straight) Appelez-nous -
39 308172 Rack, Oven (offset) Appelez-nous -
40 3182052 Panel, Back Appelez-nous -
40 WP488729 Screw (6) 8-18 X 1/2 (6)   (Replaces: 3148107) In-Stock Immediately $ 7.01

41 WP488729 Screw (12)   (Replaces: 3148107) In-Stock Immediately $ 7.01

41 311012 Cover, Rear Appelez-nous -
42 3183005 Plate, Cover Broil Appelez-nous -
43 WP3184533 Gasket, Light   (Replaces: 3184533) In-Stock Immediately $ 7.73

44 3184208 Plate, Cover Appelez-nous -
44 309961 Insulation, Wrap Appelez-nous -
44 311458 Insulation, Back Appelez-nous -
LIT885545 Repair Parts List Appelez-nous -
LIT3183765 Use & Care Guide Appelez-nous -
LIT3182751 Tech Sheet Appelez-nous -
LIT3181454 Brochure Appelez-nous -
LIT3147396 Installation Instructions Appelez-nous -

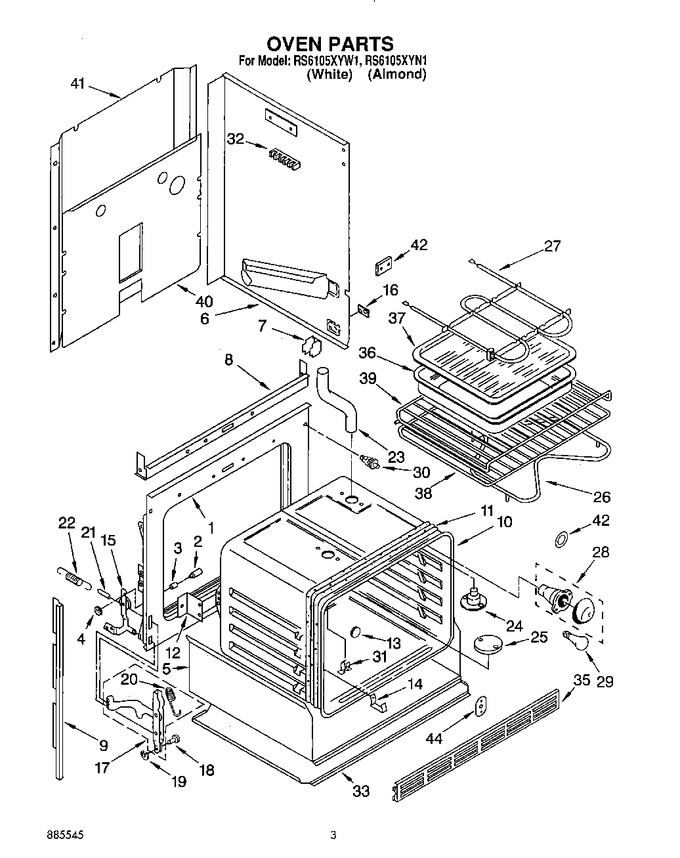

    View Diagram in Separate Window     Print Icon   Print Part List
