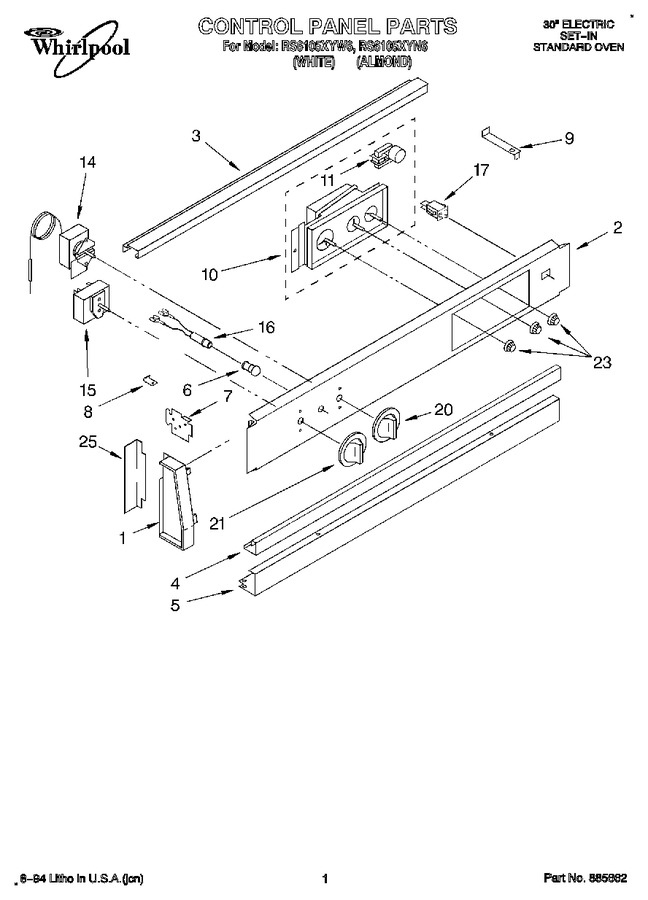

01 - Control Panel
02 - Cooktop
03 - Oven, Literature
04 - Oven Door
05 - Wiring Harness, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3148445 | End Cap (l.h.) |
|
- | |||||
| 1 | 342043 | End Cap (screw (2)) |
|
- | |||||
| 1 | 3148444 | End Cap (r.h.) |
|
- | |||||
| 2 | 3182829 | Panel, Control |
|
- | |||||
| 3 | 3148616 | Rail, Top |
|
- | |||||
| 3 | 98520 | Screw (2) |
|
- | |||||
| 4 | 3183358 | Trim, Center |
|
- | |||||
| 5 | 342043 | Screw (4) |
|
- | |||||
| 5 | 3184045 | Rail, Bottom |
|
- | |||||
| 5 | 98520 | Screw, 8a X 5/16 (3) |
|
- | |||||
| 6 | 313101 | Lens, Amber |
|
- | |||||
| 7 | 3149027 | Cover, Side (right Side) |
|
- | |||||
| 7 | 3149028 | Cover, Side (lewft Side) |
|
- | |||||
| 8 | 3184170 | Bracket, Support |
|
- | |||||
| 8 | 98520 | Screw |
|
- | |||||
| 9 | WP965173 | Screw, (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 9 | 312752 | Support, Top Rail |
|
- | |||||
| 10 | 98520 | Screw (4) |
|
- | |||||
| 10 | 661459 | Timer, Auto |
|
- | |||||
| 11 | 309822 | Motor, Timer |
|
- | |||||
| 14 | 3169306 | Thermostat, Oven |
|
- | |||||
| 14 | 3186941 | Screw (2) |
|
- | |||||
| 15 | 3149886 | Switch, Selector (4 Position) |
|
- | |||||
| 15 | 3186940 | Screw (2) |
|
- | |||||
| 16 | 314031 | Light, Indicator (250v) |
|
$ 62.88 | |||||
| 17 | 3182717 | Switch, Rocker |
|
- | |||||
| 20 | 3183106 | Knob, Thermostat |
|
- | |||||
| 21 | 3183112 | Knob, Selector |
|
$ 23.60 | |||||
| 23 | 3169181 | Knob, Timer (3) |
|
$ 13.69 | |||||
| 25 | 3149900 | Trim, End Cap |
|
- |
