SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel, Literature


03 - Oven


04 - Oven Door


05 - Internal Oven


06 - Top Venting, Optional

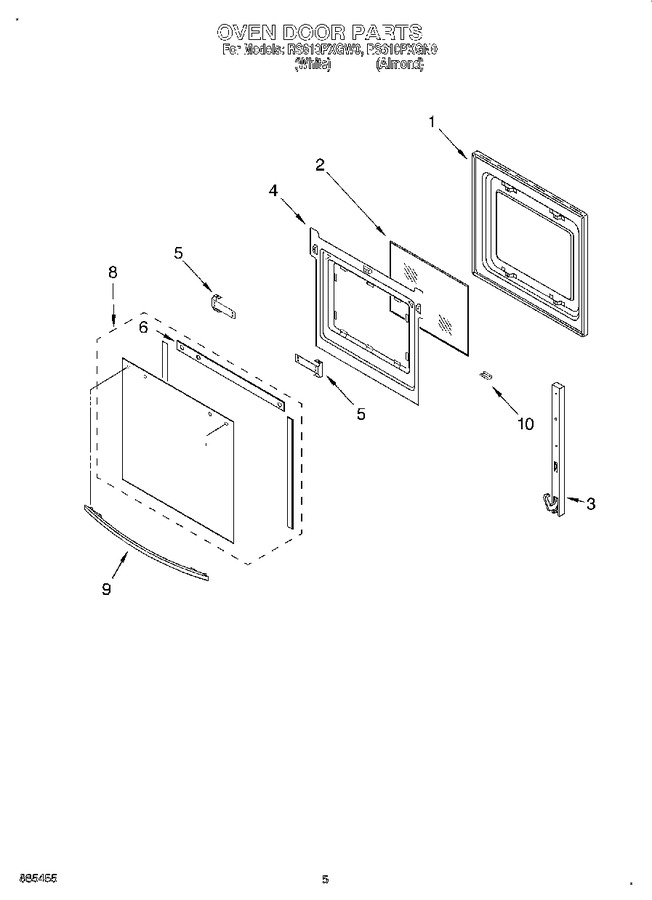

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451719		Door Liner		Appelez-nous	-
2	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 182.86
3	WP4449743		Screw (4)   (Replaces: 4449743)				$ 6.47
3	WP4455523		Hinge, Door   (Replaces: 4454946)				$ 59.67
4	WP4449809		Screw (4)   (Replaces: 4449809)			Immediately	$ 6.47
4	4451671		Retainer, Glass		Appelez-nous	-
5	WP4449743		Screw (2)   (Replaces: 4449743)				$ 6.47
5	W10276642		Screw (4)   (Replaces: 4451040)				$ 5.49
5	4450813		Bracket, Handle				$ 24.20
6	4451674		Seal, Top		Appelez-nous	-
8	4452065		Assy, Door Glass		Appelez-nous	-
9	4448854		Handle, Door				$ 74.07
10	WP4449743		Screw (2)   (Replaces: 4449743)				$ 6.47
10	4450863		Retainer, Glass		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
