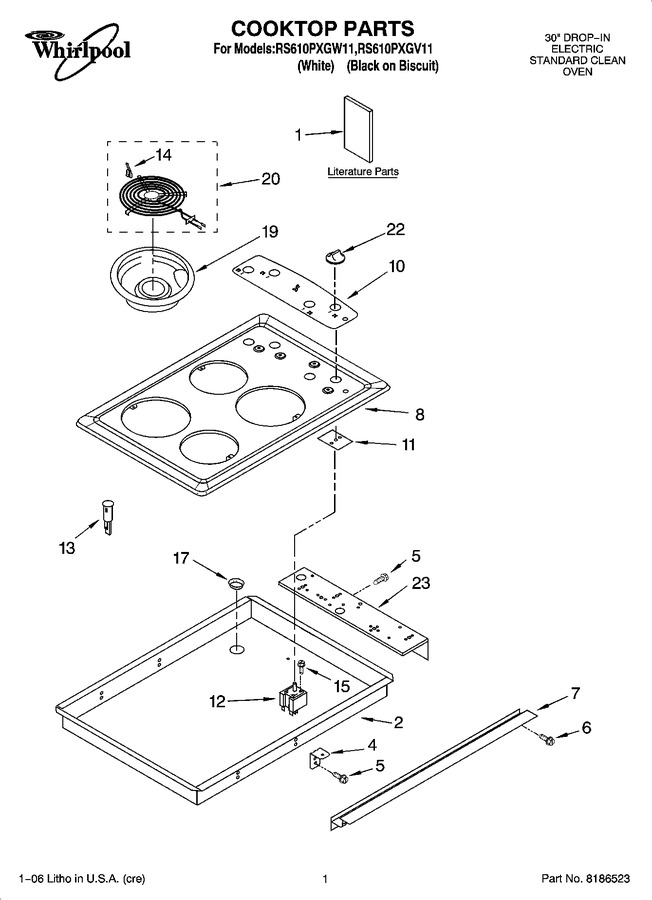

01 - Cooktop Parts


02 - Control Panel Parts


03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Top Venting Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8300649		Installation Instructions		Appelez-nous	-
1	9763523		Use & Care Guide		Appelez-nous	-
1	8302071		Tech Sheet		Appelez-nous	-
1	3191638		Safe Cooking Tips		Appelez-nous	-
1	9759133		Safecooking Tips		Appelez-nous	-
2	3192459		Burner Box		Appelez-nous	-
4	3192575		Bracket, Mounting		Appelez-nous	-
5	WP3196557		Screw, 8-18 X 3/8   (Replaces: 3196537)			Immediately	$ 7.16
6	WP12990527		Screw   (Replaces: 3400843)			Immediately	$ 7.15
7	3192102		Trim, Extension		Appelez-nous	-
8	8284709		Cooktop (biscuit)		Appelez-nous	-
8	3191168		Cooktop (white)		Appelez-nous	-
10	3191228		Panel, Control		Appelez-nous	-
11	3183956		Seal, Switch (4)				$ 41.81
12	WP3191472		Switch, Infinite (use W/ 8`` Surface (silver Shaft))   (Replaces: 3191472)				$ 150.84
12	WP3191471		Switch, Infinite (use W/ 6`` Surface (blue Shaft))   (Replaces: 3191471)				$ 170.54
13	WP4456181		Light, Indicator   (Replaces: 4456181)				$ 95.36
14	WP3195917		Clip, Element   (Replaces: 3195917)			Immediately	$ 6.96
15	3400855		Screw, 8-32 X 1/4		Appelez-nous	-
17	WP4448444		Grommet   (Replaces: 4448444)				$ 6.73
19	WPW10196406		Drip Bowl (6`` (2))   (Replaces: 3195208)			Immediately	$ 12.05
19	W10196405RW		Drip Bowl (8`` (2))   (Replaces: 3195209)			Immediately	$ 18.70
20	WPW10345407		Element, Coil (6`` Lf-rr)   (Replaces: 8053265)			Immediately	$ 141.79
20	WP9761346		Element, Coil (8`` Rf-lr)   (Replaces: 8053267)			Immediately	$ 94.16
22	WP3196231		Knob, Control (4)   (Replaces: 3196231)			Immediately	$ 18.86
23	3192330		Bracket, Switch Mounting		Appelez-nous	-
