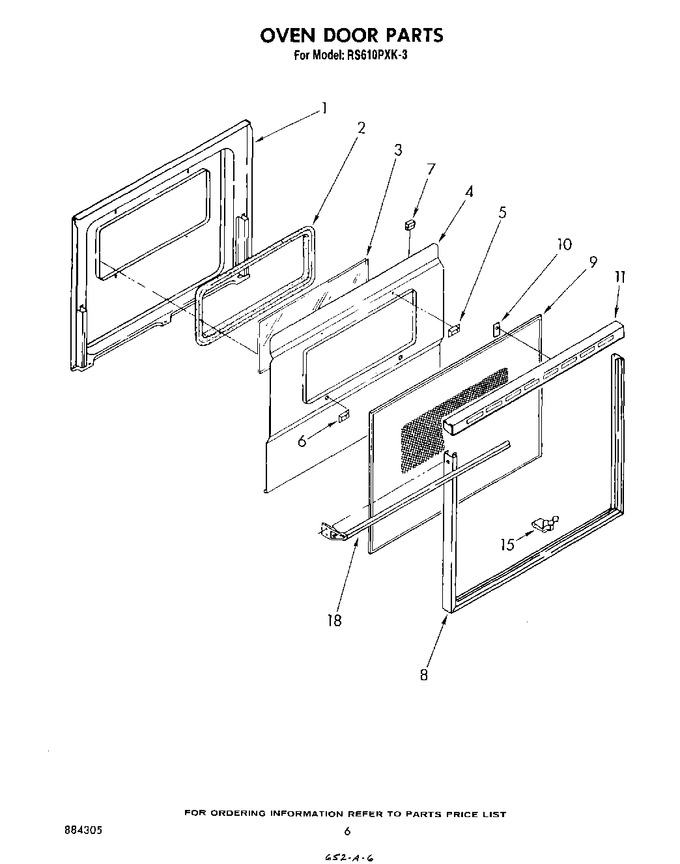

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	329687		Liner, Door		Appelez-nous	-
1	311056		Screw, (4)		Appelez-nous	-
1	312223		Pin, Wedge (2)		Appelez-nous	-
1	311896		Pushnut (2)		Appelez-nous	-
1	WP488729		Screw, 8-18 X 1/2 (3)   (Replaces: 313638)			Immediately	$ 7.01
2	258711		Seal, Pano Glass		Appelez-nous	-
3	258988		Glass, Inner 30``		Appelez-nous	-
4	307924		Baffle, Insulation		Appelez-nous	-
5	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
5	258990		Spacer, Baffle (2)		Appelez-nous	-
6	WP488729		Screw, 8-18 X 1/2 (2)   (Replaces: 313638)			Immediately	$ 7.01
6	258990		Spacer, Baffle (2)		Appelez-nous	-
7	312783		Channel, Rubber		Appelez-nous	-
8	310427		Frame, Door 30``		Appelez-nous	-
9	309069		Glass, Outer Pano		Appelez-nous	-
10	310705		Hold Down, Glass (2)		Appelez-nous	-
11	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
11	310428		Top, Door Frame		Appelez-nous	-
11	WP90296		Clip (2)   (Replaces: 90296)				$ 7.07
15	314235		Clip (2)		Appelez-nous	-
15	310706		Clip, Glass (10)		Appelez-nous	-
18	261582		Grease		Appelez-nous	-
18	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
18	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
18	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
18	261889		New Avocado (uncut)		Appelez-nous	-
18	261887		Coffee (uncut)		Appelez-nous	-
18	261891		Harvest Gold (uncut)		Appelez-nous	-
18	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
18	261810		Touch-up, Oven (1/2 Pt.)		Appelez-nous	-
18	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
18	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
18	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
18	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
18	261880		Rotisserie Kit		Appelez-nous	-
18	312722		Handle, Oven Door				$ 118.10
18	WP355515		Screw (4)   (Replaces: 355515)				$ 6.90
18	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
18	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
18	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
18	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
18	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
18	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
18	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
18	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
18	242831		Wire (14 Ga. 200 C Red)				$ 342.23
18	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
18	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
18	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
18	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
18	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
18	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
18	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
18	261888		New Avocado		Appelez-nous	-
18	261886		Coffee		Appelez-nous	-
18	261890		Harvest Gold		Appelez-nous	-
18	285006		Paint, Spray 13 Oz. (black)			Immediately	$ 51.34
18	350942		Primer (white)   (Replaces: 206922)				$ 80.69
18	206925		Leveler (thinner) (2oz.)		Appelez-nous	-
18	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
18	978883		Almond (uncut)		Appelez-nous	-
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 44.36
	LIT884305		List, Repair Parts		Appelez-nous	-
	LIT313358		Book, Cooking Guide		Appelez-nous	-
	LIT311409		Guide, Use & Care		Appelez-nous	-
	LIT311433		Instructions, Installation		Appelez-nous	-
