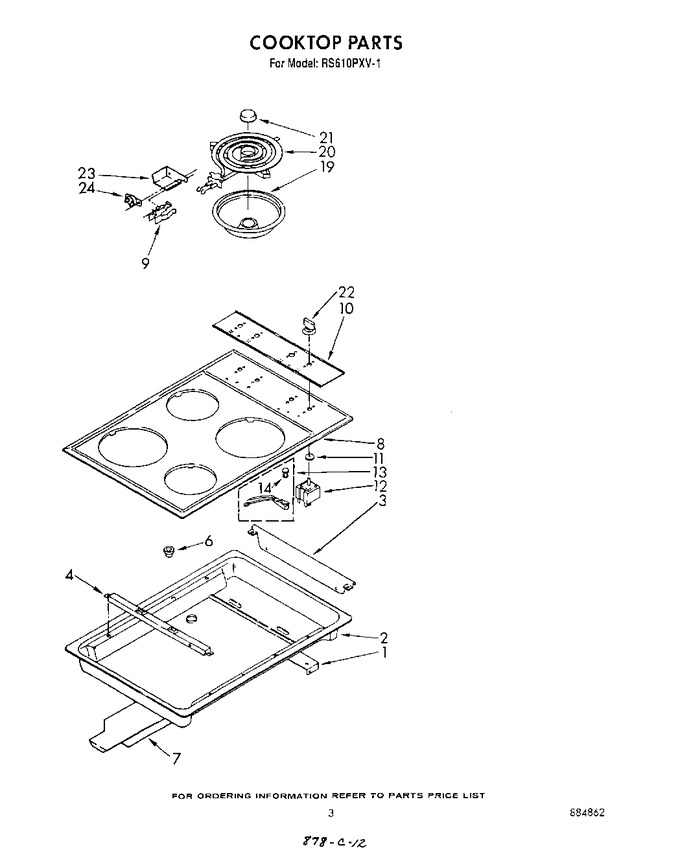

03 - Cooktop


04 - Oven


05 - Oven Door , Lit/optional


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	310718		Support, Burner Box (2)		Appelez-nous	-
1	WP488729		Screw, 8-18 X 1/2 (4)   (Replaces: 313638)			Immediately	$ 7.01
2	311019		Burner Box		Appelez-nous	-
3	WP488729		Screw (2)   (Replaces: 313638)			Immediately	$ 7.01
3	310716		Shield, Switch		Appelez-nous	-
4	342043		Screw (2)		Appelez-nous	-
4	WP488729		Screw, 8-18 X 1/2 (4)   (Replaces: 313638)			Immediately	$ 7.01
4	310717		Support, Cooktop		Appelez-nous	-
6	258109		Bushing		Appelez-nous	-
7	WP488729		Screw, 8-18 X 1/2 (6)   (Replaces: 313638)			Immediately	$ 7.01
7	3147565		Cover, Top Rear		Appelez-nous	-
8	WP488729		Screw, 8-18 X 1/2 (4)   (Replaces: 313638)			Immediately	$ 7.01
8	814103		Clip, Top Hold Down (4)   (Replaces: 3148790)				$ 9.02
8	3148039		Cooktop, Chrome		Appelez-nous	-
9	WP313808		Screw 6-32 X 1/4 (4)   (Replaces: 311932)				$ 6.84
9	330031		Receptacle (4)   (Replaces: 3147829)			Immediately	$ 14.48
10	3148705		Panel, Control		Appelez-nous	-
11	309839		Seal, Switch		Appelez-nous	-
12	W10900107		Switch, Infinite (use W/8`` Surface Unit (2))   (Replaces: 3148948)			Immediately	$ 51.87
12	155023		Switch, Infinite (screw (8))			Immediately	$ 7.91
12	3148947		Switch, Infinite (use W/6`` Surface Unit (2))		Appelez-nous	-
13	313462		Indicator Light (2) (includes Lens No. 313602)		Appelez-nous	-
14	313602		Lens, Light		Appelez-nous	-
19	WPW10196406		Reflector Pan 6`` (2)   (Replaces: 3150246)			Immediately	$ 12.05
19	W10196405RW		Reflector Pan (8`` (2))   (Replaces: 3150247)			Immediately	$ 18.70
20	WP660533		Unit, Surface 8``   (Replaces: 660530)			Immediately	$ 39.47
20	WP660532		Unit, Surface 6`` (alt.)   (Replaces: 313968)			Immediately	$ 36.90
20	WP660532		Unit, Surface 6`` (alt.)   (Replaces: 309191)			Immediately	$ 36.90
20	WP660532		Unit, Surface 6``   (Replaces: 660528)			Immediately	$ 36.90
21	309195		Medallion, Surface Unit		Appelez-nous	-
22	3148161		Knob, Control (4)		Appelez-nous	-
23	3147830		Bracket, Sensor		Appelez-nous	-
24	WP313808		Screw (7)   (Replaces: 313808)				$ 6.84
24	3147833		Thermostat				$ 0.01
NI	WP660533		(alt.) (includes Illus. 21)   (Replaces: 313966)			Immediately	$ 39.47
NI	WP660533		(alt.)   (Replaces: 309185)			Immediately	$ 39.47
