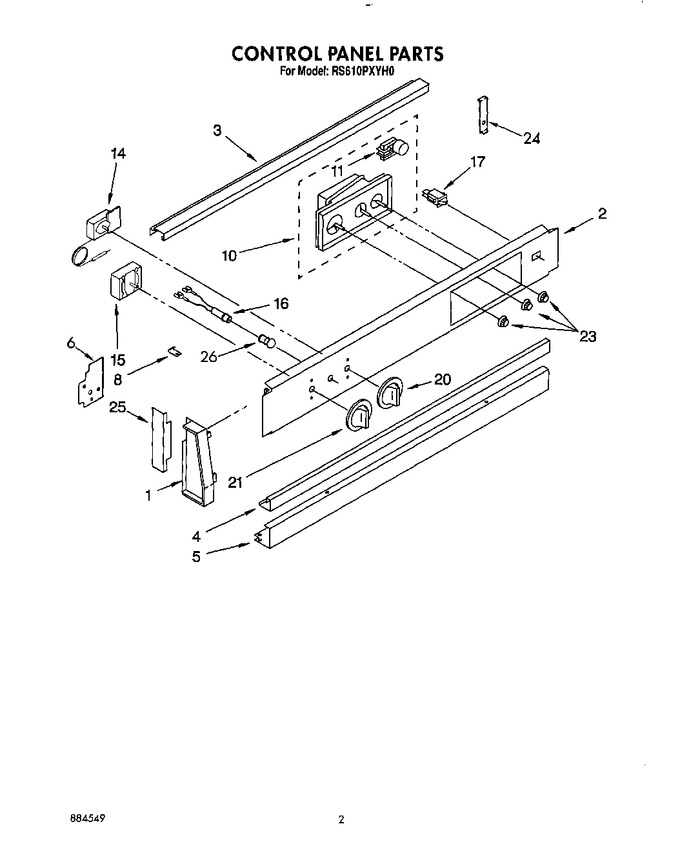

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148445		End Cap (l.h.)		Appelez-nous	-
1	3148444		End Cap (r.h.)		Appelez-nous	-
1	308504		End Cap (screw (2))		Appelez-nous	-
2	3182829		Panel, Control		Appelez-nous	-
3	3148616		Rail, Top		Appelez-nous	-
4	3183358		Trim, Center		Appelez-nous	-
5	98520		Screw, 8a X 5/16 (5)		Appelez-nous	-
5	3184045		Rail, Bottom		Appelez-nous	-
6	3149028		Cover, Side (left Hand)		Appelez-nous	-
6	3149027		Cover, Side (right Hand)		Appelez-nous	-
8	342043		Screw (4)		Appelez-nous	-
8	3184170		Bracket, Support		Appelez-nous	-
10	3183342		Timer		Appelez-nous	-
10	98520		Screw (2)		Appelez-nous	-
11	309822		Motor, Timer		Appelez-nous	-
14	WP313808		Screw (2)   (Replaces: 311932)				$ 6.84
14	3183708		Thermostat, Oven		Appelez-nous	-
15	3149886		Switch, Selector (4 Position)		Appelez-nous	-
15	4159448		Screw (2)		Appelez-nous	-
16	314031		Light, Indicator (250v)				$ 62.88
17	3182717		Switch, Rocker		Appelez-nous	-
20	3183106		Knob, Thermostat		Appelez-nous	-
21	3183112		Knob, Selector				$ 23.60
23	3169181		Knob, Timer (3)				$ 13.69
24	312752		Support, Top Rail		Appelez-nous	-
25	3149900		Trim, End Cap		Appelez-nous	-
26	313101		Lens, Amber		Appelez-nous	-
