SELECT A DIAGRAM

02 - Control Panel


03 - Section

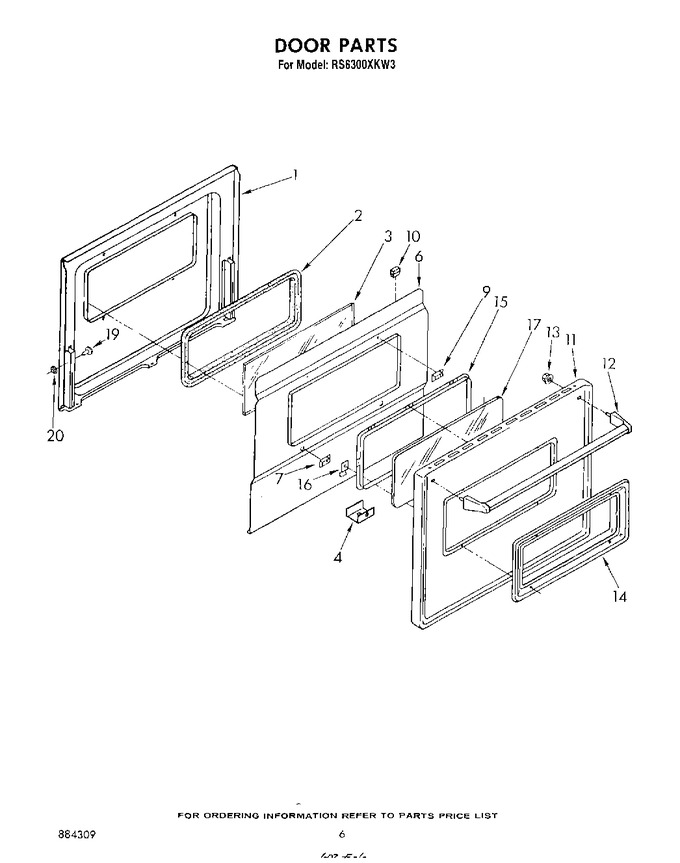

04 - Oven Door , Literature And Optional


05 - Cooktop


06 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488627		Screw, 8a X 1/2 (2)   (Replaces: 338156)				$ 6.81
1	329685		Liner, Door		Appelez-nous	-
1	311056		Screw, (4)		Appelez-nous	-
1	307748		Screw, 10a X 1/2 (3)		Appelez-nous	-
2	258711		Seal, Glass		Appelez-nous	-
3	258988		Glass, Inner		Appelez-nous	-
4	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
4	309137		Spacer, Door (2)		Appelez-nous	-
6	307924		Baffle, Insulation		Appelez-nous	-
7	258990		Spacer, Baffle (2)		Appelez-nous	-
7	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
9	258990		Spacer, Baffle (2)		Appelez-nous	-
9	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
10	312783		Bumper, Rubber (4)		Appelez-nous	-
11	307896		Panel, Oven Door (almond)		Appelez-nous	-
11	307888		Panel, Oven Door (white)		Appelez-nous	-
11	307894		Panel, Oven Door (harvest Gold)		Appelez-nous	-
11	313175		Panel, Oven Door (toast)		Appelez-nous	-
11	309133		Panel, Oven Door (screw, 8a X 5/8 (2))		Appelez-nous	-
11	313176		Panel, Oven Door (platinum)		Appelez-nous	-
12	311563		Handle, Oven Door				$ 103.11
13	WP308499		Palnut, Handle (2)   (Replaces: 308499)				$ 6.26
14	309173		Window, Frame 30`` Small		Appelez-nous	-
15	307792		Glass Retainer		Appelez-nous	-
16	307731		Clip, Frame		Appelez-nous	-
17	307732		Glass, Outer		Appelez-nous	-
17	313045		Screw, 7-19 X 3/8 (8)		Appelez-nous	-
19	312223		Pin, Wedge		Appelez-nous	-
20	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 49.92
20	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
20	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
20	261810		Touch-up Oven (1 Oz.)		Appelez-nous	-
20	261582		Grease		Appelez-nous	-
20	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 49.92
20	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
20	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
20	242985		Rotisserie Kit		Appelez-nous	-
20	311896		Pushnut		Appelez-nous	-
20	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
20	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
20	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
20	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
20	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
20	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
20	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
20	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
20	242831		Wire (14 Ga. 200 C Red)				$ 342.23
20	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
	LIT311433		Instructions, Installation		Appelez-nous	-
	LIT884309		List, Repair Parts		Appelez-nous	-
	LIT313358		Book, Cooking Guide		Appelez-nous	-
	LIT311410		Guide, Use & Care		Appelez-nous	-
