02 - Control Panel


03 - Lower Oven Door Parts


04 - Lower Body Parts


05 - Upper Body Parts


06 - Upper Oven Door Parts

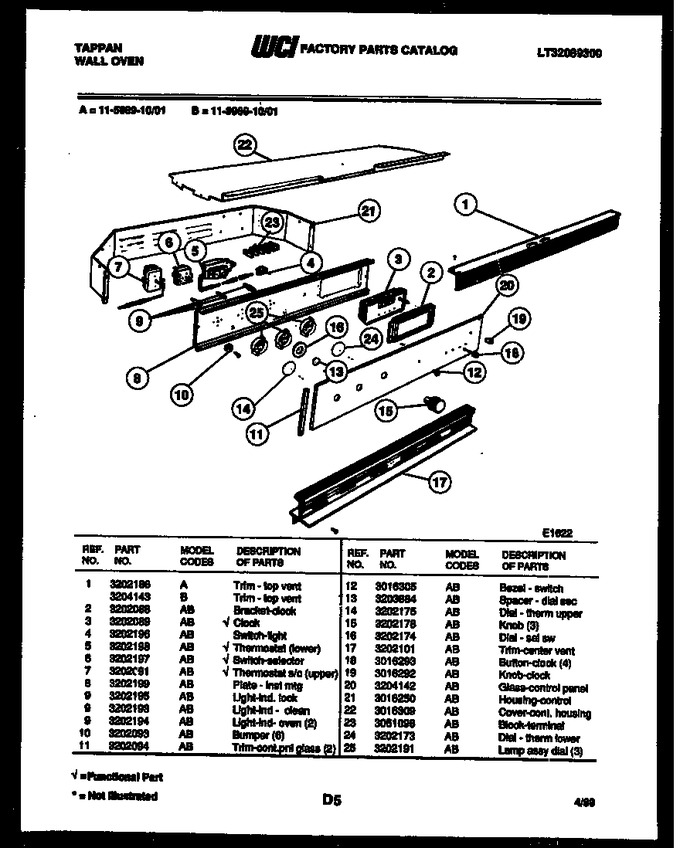

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3204143		Trim - Top Vent		Appelez-nous	-
2	3202088		Bracket-clock		Appelez-nous	-
3	3202089		Clock		Appelez-nous	-
4	3202196		Switch-light		Appelez-nous	-
5	3202198		Thermostat (lower)		Appelez-nous	-
6	3202197		Switch, Selector		Appelez-nous	-
7	3202091		Thermostat S/c (upper)		Appelez-nous	-
8	3202199		Plate - Inst Mtg		Appelez-nous	-
9	3202193		Light-ind Clean		Appelez-nous	-
9	3202195		Light-ind Lock		Appelez-nous	-
9	3202194		Light-ind- Oven (2)		Appelez-nous	-
10	3202093		Bumper (6)		Appelez-nous	-
11	3202094		Trim-cont.pnl Glass (2)		Appelez-nous	-
12	3016305		Bezel-switch		Appelez-nous	-
13	3203884		Spacer - Dial Sec.		Appelez-nous	-
14	3202175		Dial - Therm Upper		Appelez-nous	-
15	3202178		Knob (3)		Appelez-nous	-
16	3202174		Dial-sel. Sw.		Appelez-nous	-
17	3202101		Trim-center Vent		Appelez-nous	-
18	3016293		Button-clock (4)		Appelez-nous	-
19	3016292		Knob-clock		Appelez-nous	-
20	3204142		Glass-control Panel		Appelez-nous	-
21	3016250		Housing, Control		Appelez-nous	-
22	3016309		Cover - Cont Housing		Appelez-nous	-
23	3051098		Block Terminal		Appelez-nous	-
24	3202173		Dial - Therm Lower		Appelez-nous	-
25	3202191		Lamp Assy.-dial (3)		Appelez-nous	-
