SELECT A DIAGRAM

02 - Control Panel, Lit/optional


03 - Cooktop


04 - Oven


05 - Oven Door, Optional


06 - Wiring Harness

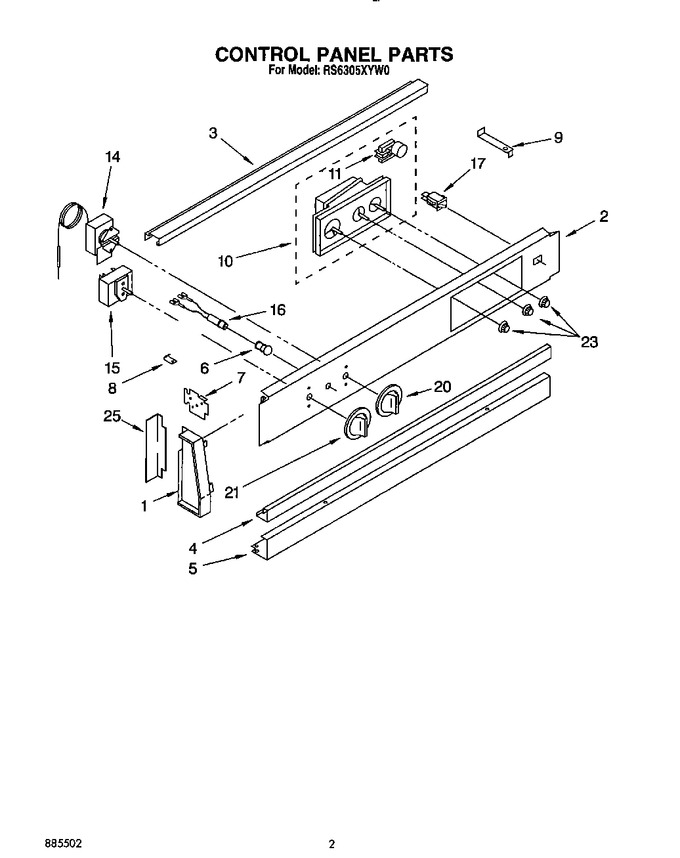

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148444		End Cap (r.h.)		Appelez-nous	-
1	342043		End Cap (screw (2))		Appelez-nous	-
1	308504		End Cap (screw (2))		Appelez-nous	-
1	3148445		End Cap (l.h.)		Appelez-nous	-
2	3182829		Panel, Control		Appelez-nous	-
3	98520		Screw (2)		Appelez-nous	-
3	3148616		Rail, Top		Appelez-nous	-
4	3183358		Trim, Center		Appelez-nous	-
5	3183523		Rail, Bottom		Appelez-nous	-
5	98520		Screw, 8a X 5/16 (3)		Appelez-nous	-
6	313101		Lens, Amber		Appelez-nous	-
7	3149028		Cover, Side (left Side)		Appelez-nous	-
7	3149027		Cover, Side (right Side)		Appelez-nous	-
8	3184170		Bracket, Support		Appelez-nous	-
8	342043		Screw		Appelez-nous	-
9	WP965173		Screw,   (Replaces: 246132)			Immediately	$ 9.65
9	312752		Support, Top Rail		Appelez-nous	-
10	3183342		Timer, Auto		Appelez-nous	-
10	98520		Screw, 8a X 5/16 (2)		Appelez-nous	-
11	309822		Motor, Timer		Appelez-nous	-
14	WP313808		Screw (2)   (Replaces: 311932)				$ 6.84
14	3183708		Thermostat, Oven		Appelez-nous	-
15	4159886		Screw (2)		Appelez-nous	-
15	3149886		Switch, Selector (4 Position)		Appelez-nous	-
16	314031		Light, Indicator (250v)				$ 62.88
17	3182717		Switch, Rocker		Appelez-nous	-
17	WP965173		Screw (2)   (Replaces: 246132)			Immediately	$ 9.65
20	3183106		Knob, Thermostat		Appelez-nous	-
21	WP688805		Spring   (Replaces: 688805)			Immediately	$ 7.03
21	3183112		Knob, Selector				$ 23.60
23	3169181		Knob, Timer (3)				$ 13.69
25	3149900		Trim, End Cap		Appelez-nous	-
	LIT3147396		Installation Instructions		Appelez-nous	-
	LIT885502		Repair Parts List		Appelez-nous	-
	LIT3182751		Tech Sheet		Appelez-nous	-
	LIT3173766		Use & Care Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
