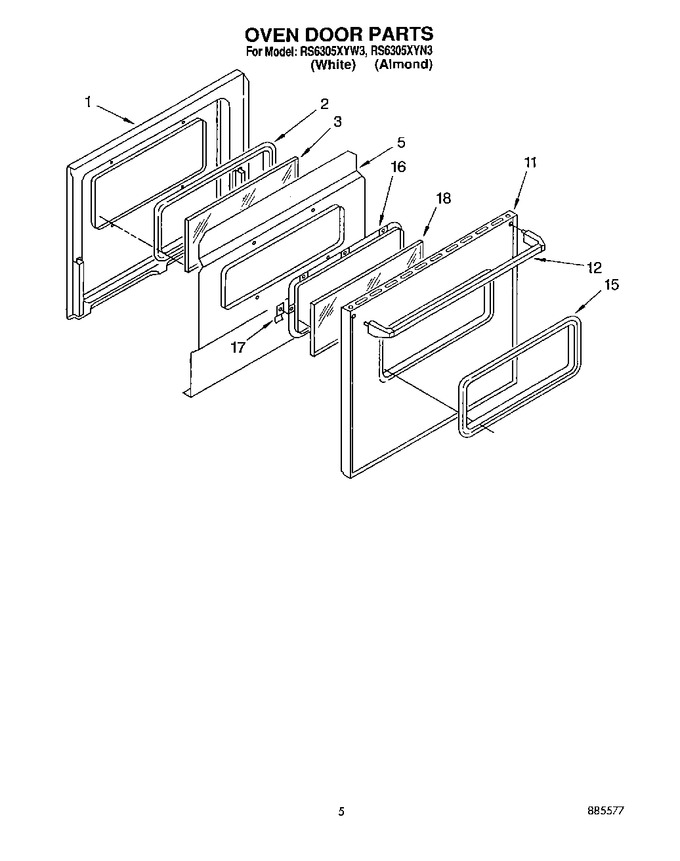

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3170710		Liner, Door		Appelez-nous	-
1	311056		Screw, (4)		Appelez-nous	-
1	WP488627		Screw, 8a X 1/2 (2)   (Replaces: 338156)				$ 6.81
1	307748		Screw, 10a X 3/8 (3)		Appelez-nous	-
2	3148183		Seal, Pano Glass				$ 7.41
3	3169202		Glass, Inner 30``		Appelez-nous	-
5	3148443		Screw (6)		Appelez-nous	-
5	3148287		Retainer, Insulation		Appelez-nous	-
11	307888		Panel, Door (white)		Appelez-nous	-
11	307896		Panel, Door (almond)		Appelez-nous	-
12	311563		Handle, Door				$ 103.11
15	309133		Screw (2)		Appelez-nous	-
15	3149277		Window Frame 30``				$ 93.12
16	307792		Glass Retainer 30``		Appelez-nous	-
17	307731		Clip, Frame		Appelez-nous	-
18	313045		Screw, 7-19 X 3/8 (8)		Appelez-nous	-
18	307732		Glass, Outer 30``		Appelez-nous	-
