SELECT A DIAGRAM

01 - Control Panel, Lit/optional


02 - Cooktop

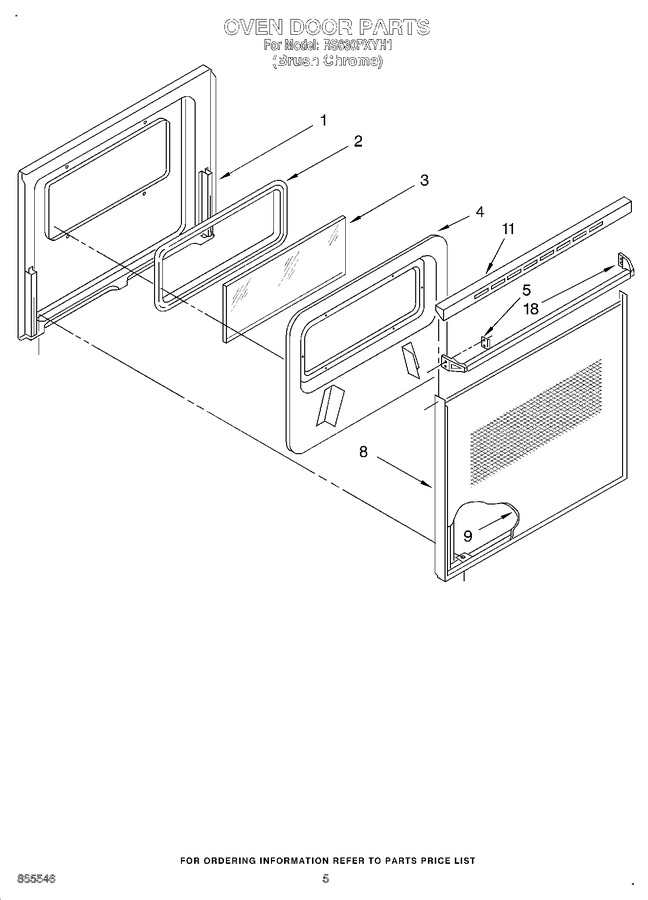

03 - Oven


04 - Oven Door


05 - Wiring Harness, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148443		Screw, 8-18 X 1/2 (3)		Appelez-nous	-
1	3170710		Liner, Door		Appelez-nous	-
2	3148183		Seal, Glass				$ 7.41
3	3169202		Glass, Inner		Appelez-nous	-
4	3148287		Baffle, Insulation		Appelez-nous	-
5	3148282		Clip, Handle Mtg. (2)				$ 8.69
8	3148235		Frame, Door		Appelez-nous	-
8	307748		Screw (3)		Appelez-nous	-
9	3148185		Glass, Outer Pano		Appelez-nous	-
11	3148223		Top, Door Frame		Appelez-nous	-
11	3149333		Screw (5)				$ 5.33
18	WP355515		Screw (4)   (Replaces: 355515)				$ 6.90
18	3148228		Handle, Oven Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
