Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 4454576 Box, Burner Appelez-nous -
3 4159456 Screw Appelez-nous -
3 3188527 Plate, Cooktop Mounting Appelez-nous -
4 4159456 Screw (6) Appelez-nous -
4 WP488729 Screw   (Replaces: 313638) In-Stock Immediately $ 7.01

4 4454588 Bracket, Mounting Appelez-nous -
5 814103 Clip, Hold Down (4)   (Replaces: 3148790) Special Order $ 9.02

6 4159456 Screw Appelez-nous -
6 258109 Bushing Appelez-nous -
7 WP488729 Screw   (Replaces: 313638) In-Stock Immediately $ 7.01

7 3188528 Cover, Rear Appelez-nous -
7 4159456 Screw Appelez-nous -
8 WP488729 Screw, 8-18 X 1/2 (4)   (Replaces: 313638) In-Stock Immediately $ 7.01

8 814103 Clip, Top Hold Down (4)   (Replaces: 3148790) Special Order $ 9.02

8 3183904 Cooktop (brushed Chrome) Appelez-nous -
9 330031 Clip, Receptacle (4)   (Replaces: 312606) In-Stock Immediately $ 14.48

10 3183218 Panel, Control Appelez-nous -
11 3183956 Seal, Switch Special Order $ 41.81

12 155023 Switch, Infinite (screw,) In-Stock Immediately $ 7.91

12 4454533 Switch, Infinite (use W/ 8`` Surface Unit (2)) Appelez-nous -
12 4454532 Switch, Infinite (use W/ 6`` Surface Unit (2)) Appelez-nous -
13 3187778 Indicator Appelez-nous -
14 313602 Lens, Light Appelez-nous -
19 WPW10196406 Reflector Pan 6`` (2)   (Replaces: 3150246) In-Stock Immediately $ 12.05

19 W10196405RW Reflector Pan (8`` (2))   (Replaces: 3150247) In-Stock Immediately $ 18.70

20 WP660533 Unit, Surface 8`` (includes Illus. 21)   (Replaces: 660531) In-Stock Immediately $ 39.47

20 WP660532 Unit, Surface 6`` (includes Illus. 21)   (Replaces: 660529) In-Stock Immediately $ 36.90

21 309195 Medallion, Surface Unit Appelez-nous -
22 3183120 Knob, Control (4) Appelez-nous -
24 WP313808 Screw, 6-32 (7)   (Replaces: 313808) Special Order $ 6.84

24 WP3188286 Thermostat   (Replaces: 3188286) Special Order $ 66.13

25 4159456 Screw Appelez-nous -
25 3187446 Shield, Heat Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

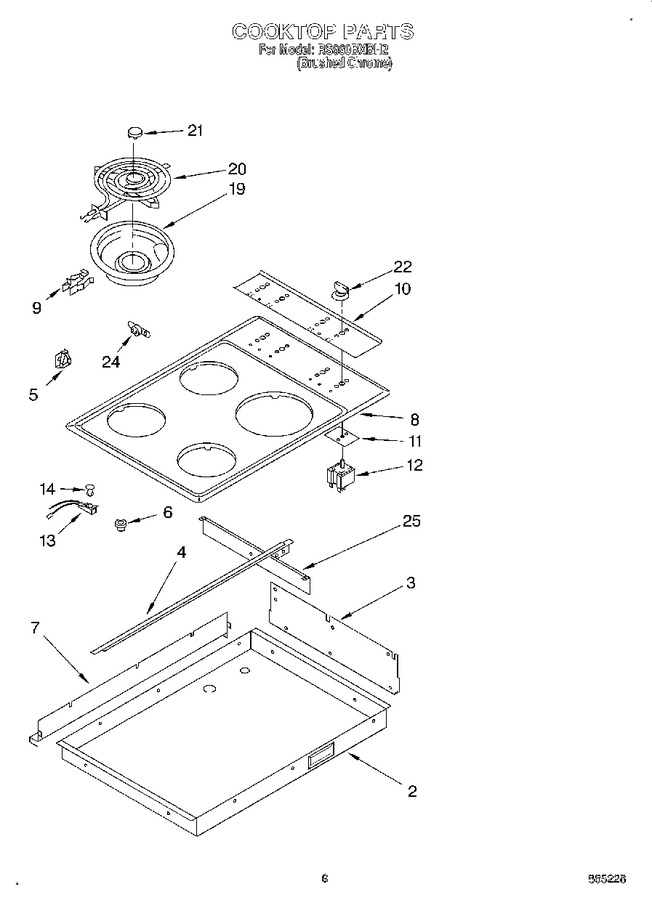

Diagram for RS660BXBH2
