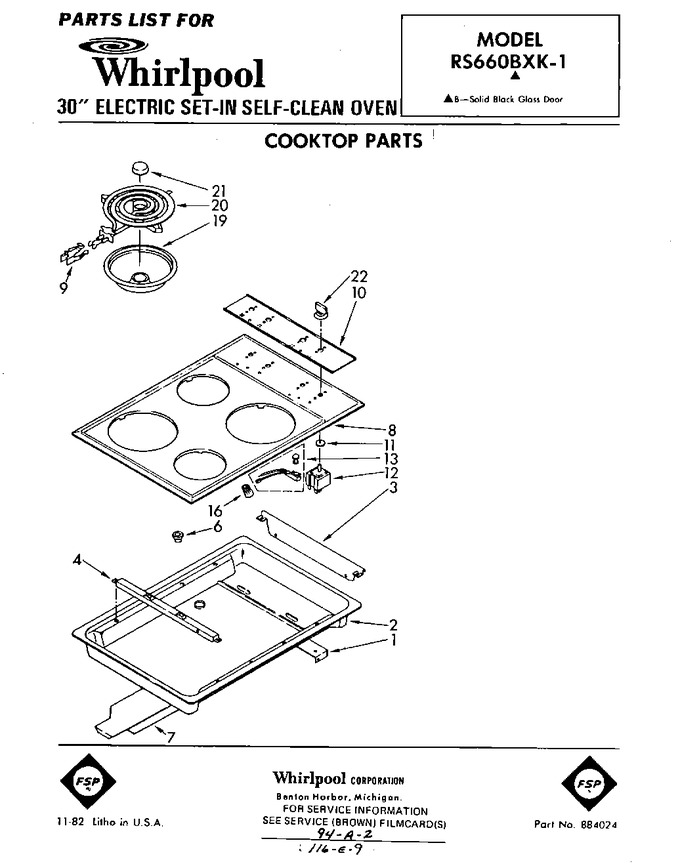

01 - Section
02 - Section
03 - Section
04 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP308685 | Screw, 10a X 1/2 (6) (Replaces: 253549) |
|
Immediately | $ 7.08 | ||||
| 1 | 310718 | Support, Burner Box (2) |
|
- | |||||
| 2 | 311019 | Burner Box |
|
- | |||||
| 3 | 312318 | Screw, 10-32 X 1/2 (2) |
|
- | |||||
| 3 | 310716 | Shield, Switch |
|
- | |||||
| 4 | WP308685 | Screw, 10a X 1/2 (4) (Replaces: 253549) |
|
Immediately | $ 7.08 | ||||
| 4 | 312318 | Screw, 10-32 X 1/2 (2) |
|
- | |||||
| 4 | 310717 | Support, Cooktop |
|
- | |||||
| 6 | 258109 | Bushing |
|
- | |||||
| 7 | WP308685 | Screw, 10a X 1\2 (3) (Replaces: 253549) |
|
Immediately | $ 7.08 | ||||
| 7 | 310627 | Cover, Top Rear |
|
- | |||||
| 8 | 312318 | Screw, 10-32 X 1/2 (5) |
|
- | |||||
| 8 | 307492 | Cooktop, Brushed Chrome |
|
- | |||||
| 8 | 166681 | Screw, 10-32 X 5/16 (2) |
|
- | |||||
| 9 | 330031 | Clip, Receptacle (4) (Replaces: 258858) |
|
Immediately | $ 14.48 | ||||
| 9 | WP313808 | Screw 6-32 X 1/4 (4) (Replaces: 311932) |
|
$ 6.84 | |||||
| 10 | 312520 | Panel, Control |
|
- | |||||
| 11 | 309839 | Seal, Switch |
|
- | |||||
| 12 | 246406 | Switch, Infinite (screw, 8-32 X 5/16 (8)) |
|
- | |||||
| 12 | W10900107 | Switch, Infinite (use W/6`` Surface Unit (2)) (Replaces: 311839) |
|
Immediately | $ 51.87 | ||||
| 12 | W10900107 | Switch, Infinite (use W/8`` Surface Unit (2)) (Replaces: 311838) |
|
Immediately | $ 51.87 | ||||
| 13 | 311523 | Indicator Light (2) (includes Lens) |
|
- | |||||
| 16 | 255673 | Connector, Wire |
|
- | |||||
| 19 | WPW10196406 | Reflector Pan (6`` (2)) (Replaces: 308539) |
|
Immediately | $ 12.05 | ||||
| 19 | W10196405RW | Reflector Pan (8`` (2)) (Replaces: 308540) |
|
Immediately | $ 18.70 | ||||
| 20 | WP660532 | Unit, Surface (6`` Alternate) (Replaces: 309191) |
|
Immediately | $ 36.90 | ||||
| 20 | WP660532 | Unit, Surface (6`` Alternate) (Replaces: 309249) |
|
Immediately | $ 36.90 | ||||
| 20 | WP660533 | Unit, Surface (8`` Alternate) (Replaces: 309185) |
|
Immediately | $ 39.47 | ||||
| 20 | WP660533 | Unit, Surface (8`` Alternate (includes Illus. 21)) (Replaces: 309216) |
|
Immediately | $ 39.47 | ||||
| 21 | 309195 | Medallion, Surface Unit |
|
- | |||||
| 22 | WP330190 | Knob, Control (4) (Replaces: 329404) |
|
$ 38.10 |
