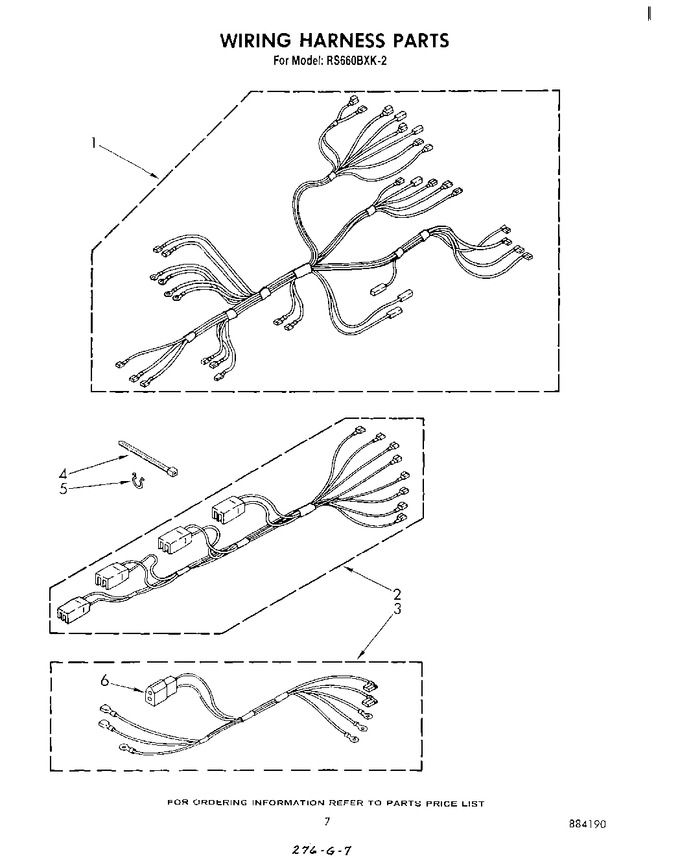

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 312188 | Harness, Wire (main) |
|
- | |||||
| 2 | 311709 | Harness, Wire (surface Unit) |
|
- | |||||
| 3 | 313465 | Harness, Wire (infinite Switch) |
|
- | |||||
| 4 | WPW10339879 | Tie Cable (Replaces: 309330) |
|
$ 7.11 | |||||
| 5 | 16515 | Clip, Harness (2) (Replaces: 313438) |
|
$ 17.60 | |||||
| 6 | 717253 | Block, Disconnect |
|
- |
