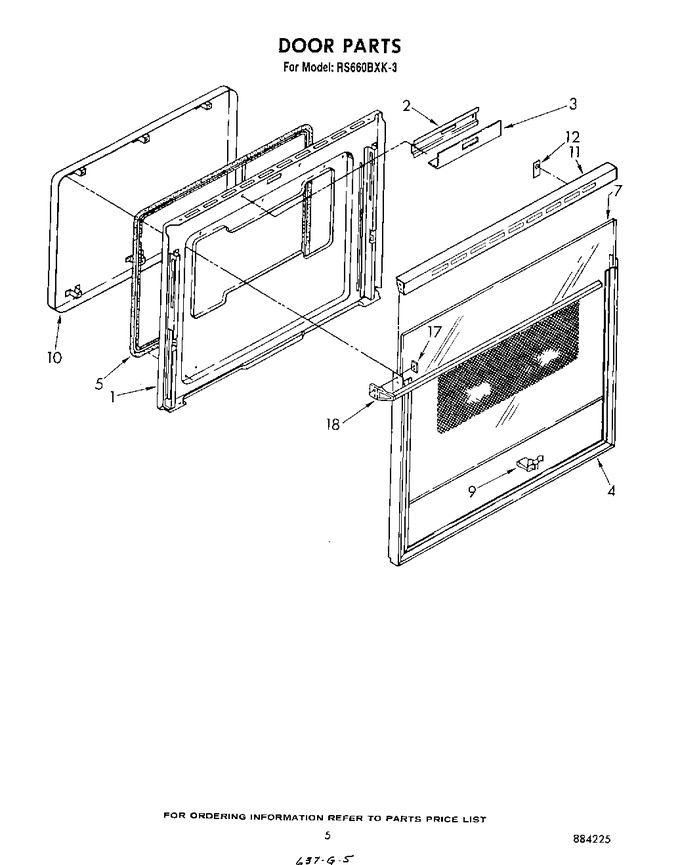

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP90296 | Clip (2) (Replaces: 90296) |
|
$ 7.07 | |||||
| 1 | 329694 | Liner, Door |
|
- | |||||
| 1 | WP488729 | Screw, 8-18 X 1/2 (6) (Replaces: 313638) |
|
Immediately | $ 7.01 | ||||
| 1 | 311056 | Screw (2) |
|
- | |||||
| 2 | 308033 | Channel, Latch |
|
- | |||||
| 3 | 311054 | Screw (2) |
|
- | |||||
| 3 | 310056 | Shield, Insulation |
|
- | |||||
| 4 | 310427 | Frame, Door |
|
- | |||||
| 5 | 311904 | Seal, Oven Door |
|
- | |||||
| 7 | 00573829 | Glass, Outer (Replaces: 310655) |
|
Immediately | $ 27.48 | ||||
| 9 | 310706 | Glass, Clip (10) |
|
- | |||||
| 10 | 328546 | Panel, Inner |
|
- | |||||
| 11 | 307748 | Screw, 10a X 1/2 (2) |
|
- | |||||
| 11 | 310784 | Top, Pano Door |
|
- | |||||
| 12 | 310705 | Hold Down, Glass (2) |
|
- | |||||
| 17 | 311506 | Clip |
|
- | |||||
| 18 | WP912618 | Screw (4) (Replaces: 308541) |
|
$ 6.98 | |||||
| 18 | 312721 | Handle, Door |
|
- |
