SELECT A DIAGRAM

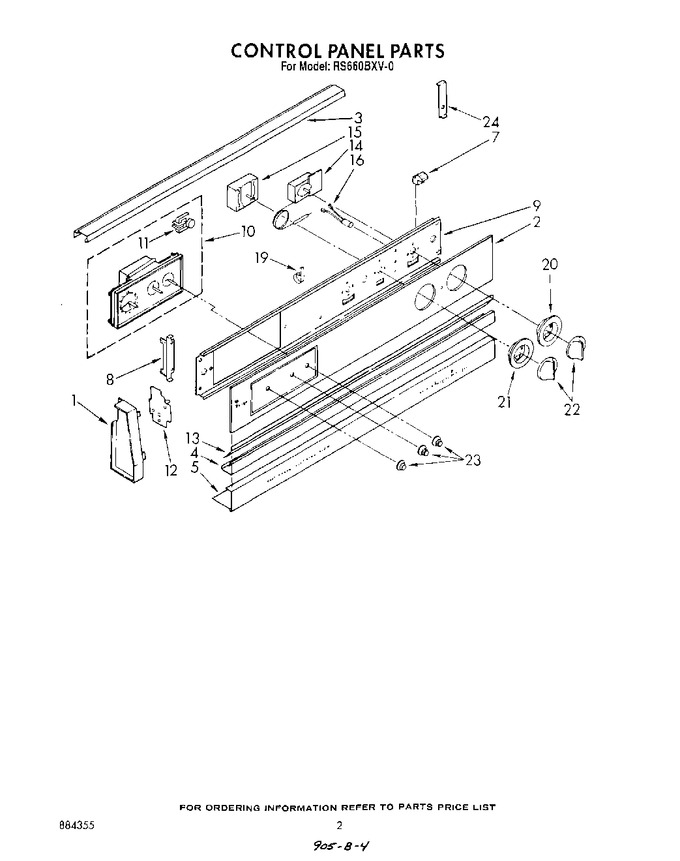

02 - Control Panel


03 - Cook Top


04 - Oven


05 - Oven Door , Lit/optional


06 - Wiring


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148445		End Cap (l.h.)		Appelez-nous	-
1	3148444		End Cap (r.h.)		Appelez-nous	-
1	308504		End Cap (screw (2))		Appelez-nous	-
2	3148640		Control Panel, Glass		Appelez-nous	-
3	3148616		Rail, Top		Appelez-nous	-
4	3148620		Trim, Center		Appelez-nous	-
5	342043		Screw (4)		Appelez-nous	-
5	98520		Screw, 8a X 5/16 (3)		Appelez-nous	-
5	3148618		Rail, Bottom		Appelez-nous	-
7	310823		Retainer, Glass (4)		Appelez-nous	-
8	98520		Screw (4)		Appelez-nous	-
8	3148634		Bracket, Control Panel (2)		Appelez-nous	-
9	313314		Bracket, Control		Appelez-nous	-
9	313381		Clip (2)		Appelez-nous	-
10	3148053		Timer		Appelez-nous	-
11	309822		Motor, Timer		Appelez-nous	-
12	3149028		Cover, L.h. Side		Appelez-nous	-
12	3149027		Cover, R.h. Side		Appelez-nous	-
13	313316		Seal, Backguard		Appelez-nous	-
14	3148934		Thermostat, Oven		Appelez-nous	-
14	487384		Screw, 6-32 X 1/4 (2)		Appelez-nous	-
15	310006		Switch, Selector (4 Position)		Appelez-nous	-
15	155023		Screw, 8-32 X 1/4 (2)			Immediately	$ 7.91
16	311802		Light, Indicator (250 V)		Appelez-nous	-
19	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.08
19	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 9.65
19	166681		Screw, 10-32 X 5/16		Appelez-nous	-
20	311066		Escutcheon, Thermostat				$ 25.00
21	WP311068		Escutcheon, Selector   (Replaces: 311068)				$ 49.73
21	254225		Screw, 8 X 1/4 (2)		Appelez-nous	-
22	WP3150371		Knob, Control (2)   (Replaces: 310834)				$ 19.40
23	330206		Knob, Timer (3)		Appelez-nous	-
23	313311		Spring		Appelez-nous	-
24	312752		Support, Top Rail		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
